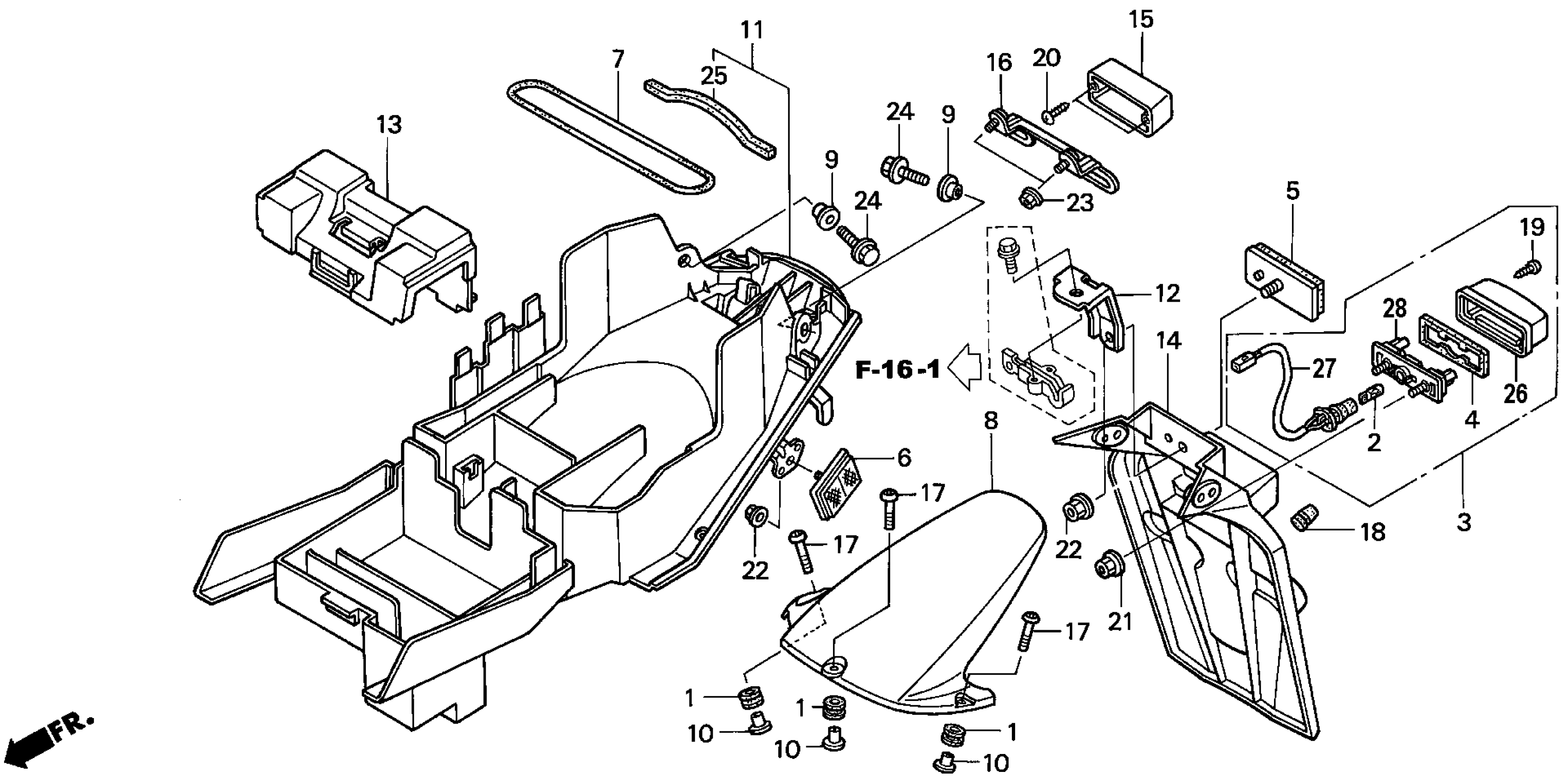

Honda CBR900RRA (02) CBR954RR, JPN, VIN# JH2SC500-2M000001 REAR FENDER (2) Diagram

#

Description
Price

1

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

2

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

3

LIGHT ASSY., LICENSE

33720-MCJ-D01

Unavailable

4

GASKET, LENS

33729-MCZ-003

$9.48

5

REFLECTOR, REFLEX

33741-MCJ-G00

Unavailable

6

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

7

BAND, U-LOCK

50290-MZ7-000

$19.92

8

FENDER C, RR. *NH105* (MAT BLACK)

80101-MCJ-750ZA

Unavailable

9

COLLAR, RR. FENDER

80102-MCJ-000

Unavailable

10

COLLAR, FENDER SETTING

80103-MCJ-750

$2.57

11

FENDER B, RR. *NH1* (BLACK)

80105-MCJ-A00ZA

Unavailable

11

FENDER B, RR. *R279R* (PHYSICAL RED)

80105-MCJ-A00ZD

Unavailable

12

STAY B, FENDER

80106-MCJ-750

Unavailable

13

COVER, PGM-FI UNIT

80110-MCJ-750

Unavailable

14

FENDER A, RR.

80120-MCJ-A00

Unavailable

15

BRACKET, LICENSE LIGHT

80201-MCJ-A00

Unavailable

16

BRACKET, NUMBER PLATE

84700-MCJ-A00

Unavailable

17

SCREW, PAN (5X20)

90103-MBG-000

$2.02

18

PLUG, CONE

90899-KL8-000

$3.26

19

SCREW, TAPPING (4X16)

93901-24480

$1.49

20

SCREW, TAPPING (4X12)

93913-24220

$1.49

21

NUT, FLANGE (5MM)

94050-05000

$1.49

22

NUT, FLANGE (5MM)

94050-05070

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

25

SEAL, RR. FENDER

80107-MCJ-750

Unavailable
