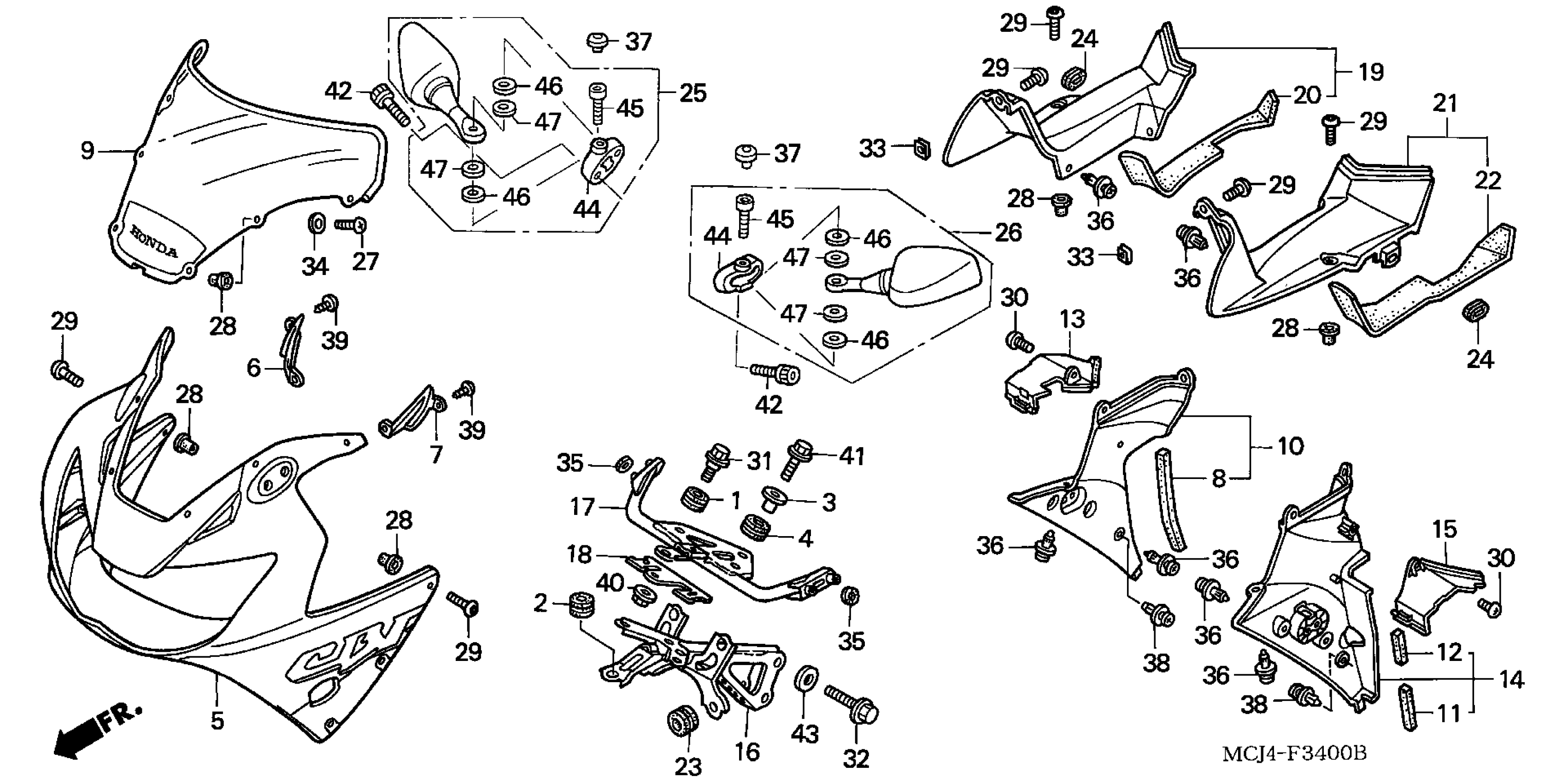

Honda CBR900RRA (01) CBR929RR, JPN, VIN# JH2SC440-1M100001 UPPER COWL (1) Diagram

#

Description
Price

1

GROMMET A, RR. COVER (8X16X6.6)

11344-MB0-000

$2.75

2

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

3

COLLAR, SETTING

61104-422-000

$6.91

4

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

5

COWL SET (UPPER) (TYPE1) (WL)

64100-MCJ-830ZC

Unavailable

5

COWL SET (UPPER) (TYPE2) (WL)

64100-MCJ-830ZD

Unavailable

6

GUIDE, R. AIR

64215-MCJ-000

Unavailable

7

GUIDE, L. AIR

64216-MCJ-000

Unavailable

8

SEAL, HEADLIGHT (LOWER)

64231-MZ7-300

Unavailable

9

WINDSCREEN SET (TYPE1) (WL)

64250-MCJ-000ZA

Unavailable

10

COWL, R. MIDDLE (INNER) *NH1* (BLACK)

64325-MCJ-000ZA

Unavailable

11

SEAL A, MIDDLE COWL (INNER)

64326-MCJ-300

Unavailable

12

SEAL B, MIDDLE COWL (INNER)

64327-MCJ-300

Unavailable

13

GUARD, R. HEAT

64335-MCJ-000

Unavailable

14

COWL, L. MIDDLE (INNER) *NH1* (BLACK)

64375-MCJ-000ZA

Unavailable

15

GUARD, L. HEAT

64385-MCJ-000

Unavailable

16

STAY A, COWL (UPPER)

64501-MCJ-000

$68.00

17

STAY B, COWL (UPPER)

64502-MCJ-000

$111.28

18

HOLDER, ELECTRIC

64505-MCJ-000

Unavailable

19

PANEL SET, R. (INNER) *NH430R* (GENTLE GRAY)

64593-MCJ-670ZA

Unavailable

20

MAT, R. PANEL (INNER)

64594-MCJ-670

Unavailable

21

PANEL SET, L. (INNER) *NH430R* (GENTLE GRAY)

64598-MCJ-670ZA

Unavailable

22

MAT, L. PANEL (INNER)

64599-MCJ-670

Unavailable

23

RUBBER B, RR. COWL MOUNTING

80116-MR1-000

$4.13

24

GROMMET, SIDE COVER

83551-MA6-000

$3.35

25

MIRROR ASSY., R. BACK

88110-MCJ-023

Unavailable

26

MIRROR ASSY., L. BACK

88120-MCJ-023

Unavailable

27

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

28

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

29

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

30

SCREW, VISOR SETTING

90114-KW7-900

$2.92

31

BOLT, FLANGE (6MM)

90118-MCJ-000

$3.04

32

BOLT, FLANGE (8X28)

90120-MCJ-000

$3.02

33

NUT, CLIP (5MM)

90312-MT3-000

$4.57

34

WASHER, THRUST (5MM)

90504-964-000

$1.90

35

WASHER, BUMPER

90540-SA7-000

$3.17

36

CLIP, BODY

90683-MBW-003

$2.16

37

CAP, SOCKET BOLT

91456-371-770

$3.47

38

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

39

SCREW, TAPPING (4X12)

93903-24380

$1.49

40

NUT, FLANGE (6MM)

94050-06000

$1.49

41

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

42

BOLT, SOCKET (6X14)

96600-06014-07

$1.49

43

WASHER, PLAIN (8MM)

94102-08700

$1.49

44

BASE, BACK MIRROR

88111-MCJ-003

Unavailable

45

BOLT, SOCKET (8X25)

90101-MAS-E01

$2.56

46

WASHER A (8MM)

90501-MAS-E01

$1.90

47

WASHER (8MM)

90502-MAS-E01

$1.90
