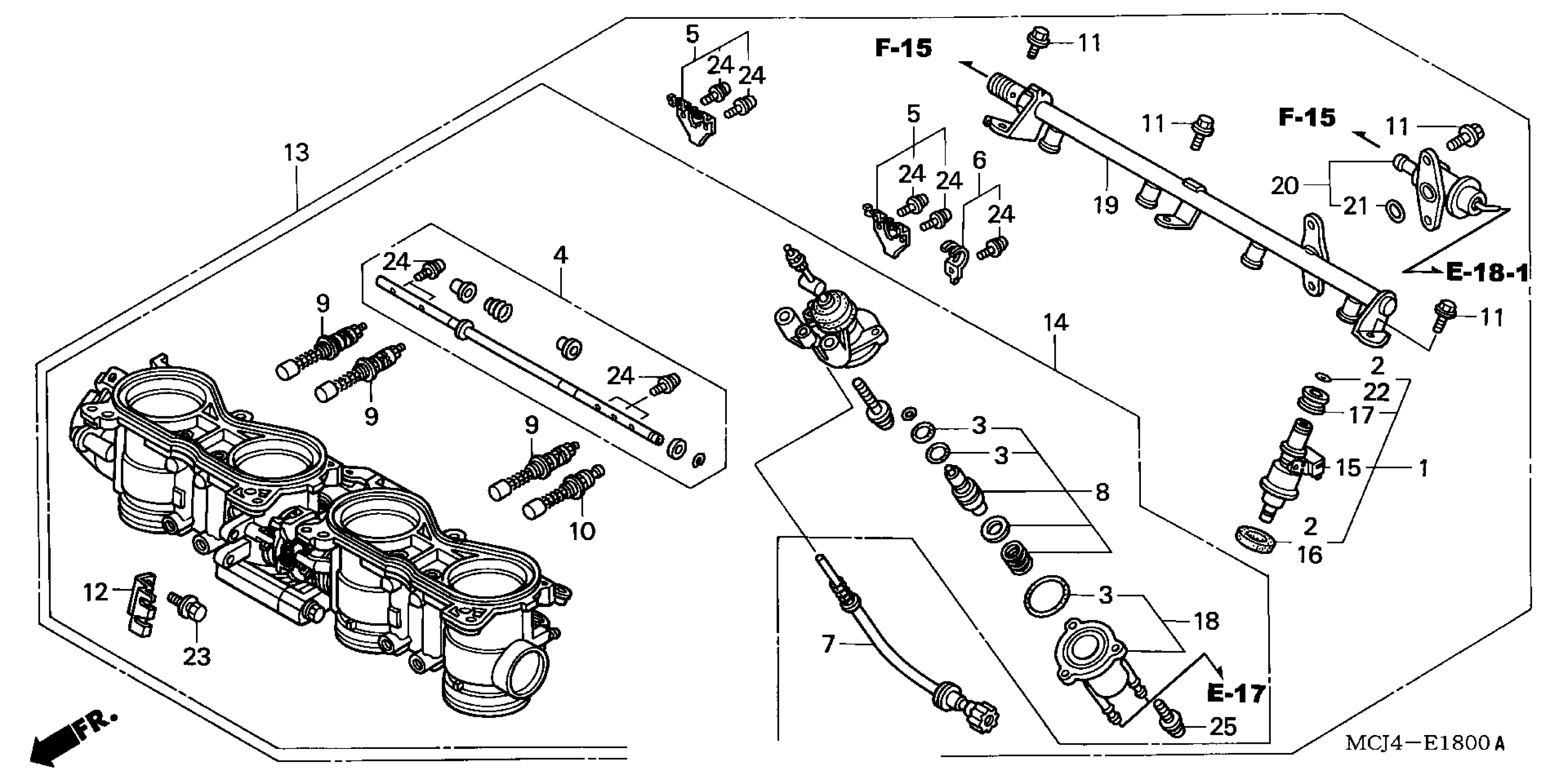

Honda CBR900REAC (01) CBR929RE, JPN, VIN# JH2SC444-1M100001 THROTTLE BODY ASSY. ('00-'01) Diagram

#

Description
Price

1

INJECTOR SET, FUEL

06164-MCJ-671

Unavailable

2

GASKET SET

16010-MCJ-003

Unavailable

3

GASKET SET B

16011-MAT-E01

Unavailable

4

SHAFT SET, STARTER

16017-MCJ-003

Unavailable

5

LEVER SET A, STARTER

16018-MCJ-003

$8.20

6

LEVER SET B, STARTER

16019-MCJ-003

$3.51

7

SCREW SET, STOP

16029-MCJ-003

Unavailable

8

ELEMENT SET, WAX

16044-MAT-E01

$28.00

9

VALVE SET, STARTER

16046-MCJ-003

Unavailable

10

VALVE, STARTER

16047-MCJ-003

Unavailable

11

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.41

12

STAY, WIRE

16169-MCJ-003

Unavailable

13

BODY ASSY., THROTTLE (GQ60B A)

16400-MCJ-771

Unavailable

14

BODY ASSY., THROTTLE

16401-MCJ-771

Unavailable

15

INJECTOR SET, FUEL

06164-MCJ-671

Unavailable

15

INJECTOR SET, FUEL This part replaces 16450-MCJ-671.

06164-MCJ-671

Unavailable

16

SEAL RING, INJECTOR

16472-MCF-003

$4.69

17

CUSHION RING, INJECTOR (NOK) This part replaces 16473-PD6-000.

16473-P10-A01

$6.43

17

CUSHION RING, INJECTOR (NOK)

16473-P10-A01

$6.43

18

CASE SET, WAX

16502-MAT-E01

Unavailable

19

PIPE, FUEL

16610-MCJ-003

Unavailable

20

REGULATOR ASSY., PRESSURE This part replaces 16740-MCJ-003.

16740-MCJ-013

$117.50

20

REGULATOR ASSY., PRESSURE

16740-MCJ-013

$117.50

21

O-RING, PRESSURE REGULATOR

16741-PG7-005

$3.24

22

O-RING (7.3X2.2) (NOK) This part replaces 16074-ZY3-000.

91301-P2F-A01

$2.80

22

O-RING (7.3X2.2) (NOK) This part replaces 91301-PM7-003.

91301-P2F-A01

$2.80

22

O-RING (7.3X2.2) (NOK)

91301-P2F-A01

$2.80

23

BOLT-WASHER (5X14)

93402-05014-00

$1.01

24

SCREW-WASHER (3X8)

93892-03008-10

$0.88

25

SCREW-WASHER (5X12)

93892-05012-00

$0.75

25

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$0.75
