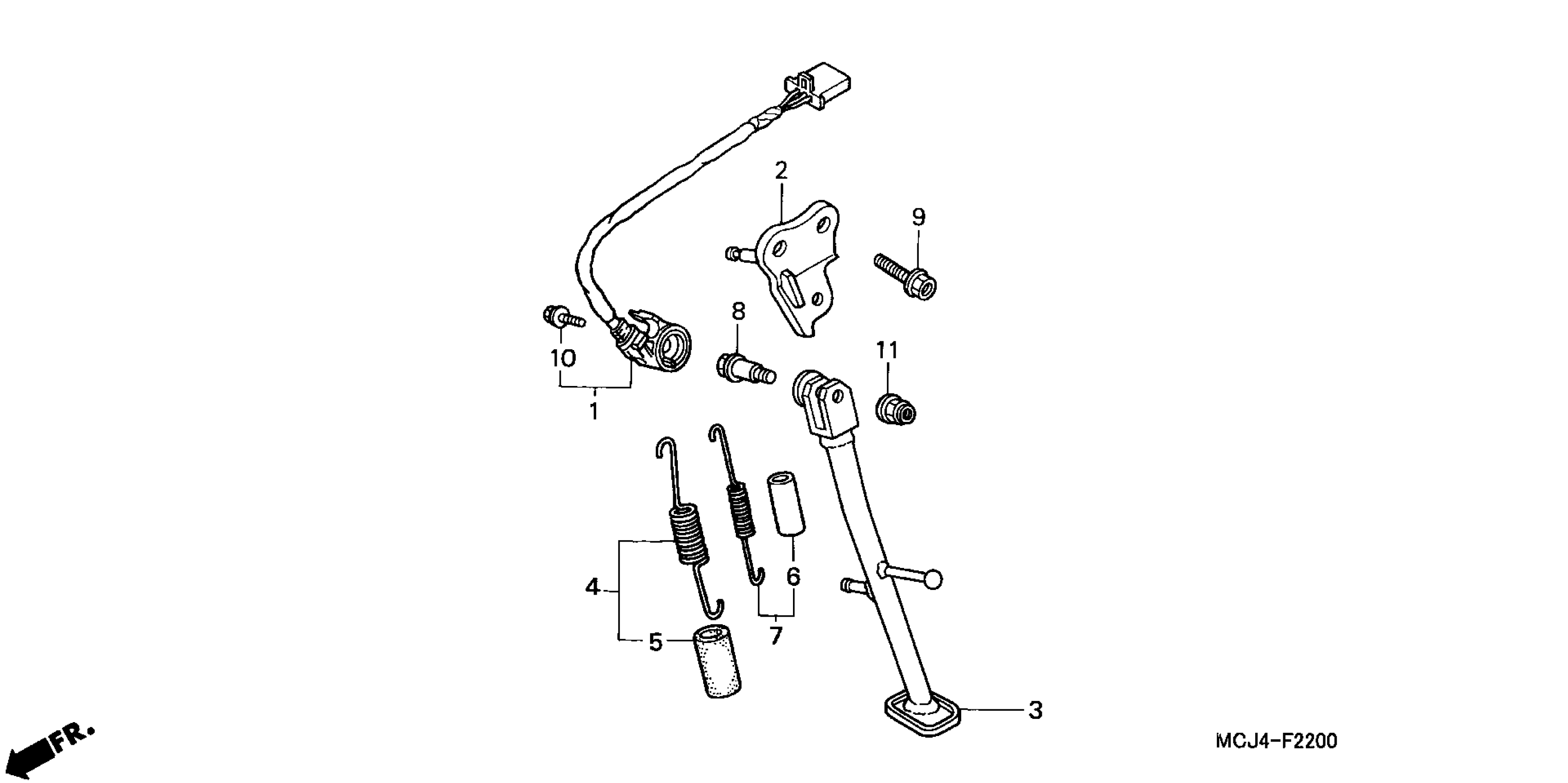

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 STAND Diagram

#

Description

Price

1

SWITCH SET, SIDE STAND

35070-MCZ-000

Unavailable

1

SWITCH SET, SIDE STAND This part replaces 35700-MCJ-305.

35070-MCZ-000

Unavailable

2

BRACKET, SIDE STAND

50150-MCJ-000

Unavailable

3

BAR, SIDE STAND

50530-MCJ-000

Unavailable

4

SPRING ASSY., SIDE STAND

50540-MW0-000

Unavailable

5

TUBE, SIDE STAND SPRING

50543-MT3-611

$3.33

6

TUBE, SIDE STAND SPRING

50543-MV9-610

Unavailable

7

SPRING ASSY., SIDE STAND SUB

50543-MW0-610

Unavailable

8

BOLT, SIDE STAND PIVOT

90112-MCJ-000

Unavailable

9

BOLT, FLANGE (10X32)

90133-MBB-000

$3.99

9

BOLT, FLANGE (10X32) This part replaces 90133-MR8-000.

90133-MBB-000

$3.99

10

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

10

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$1.49

11

NUT, SIDE STAND

90203-MF9-710

$3.67
