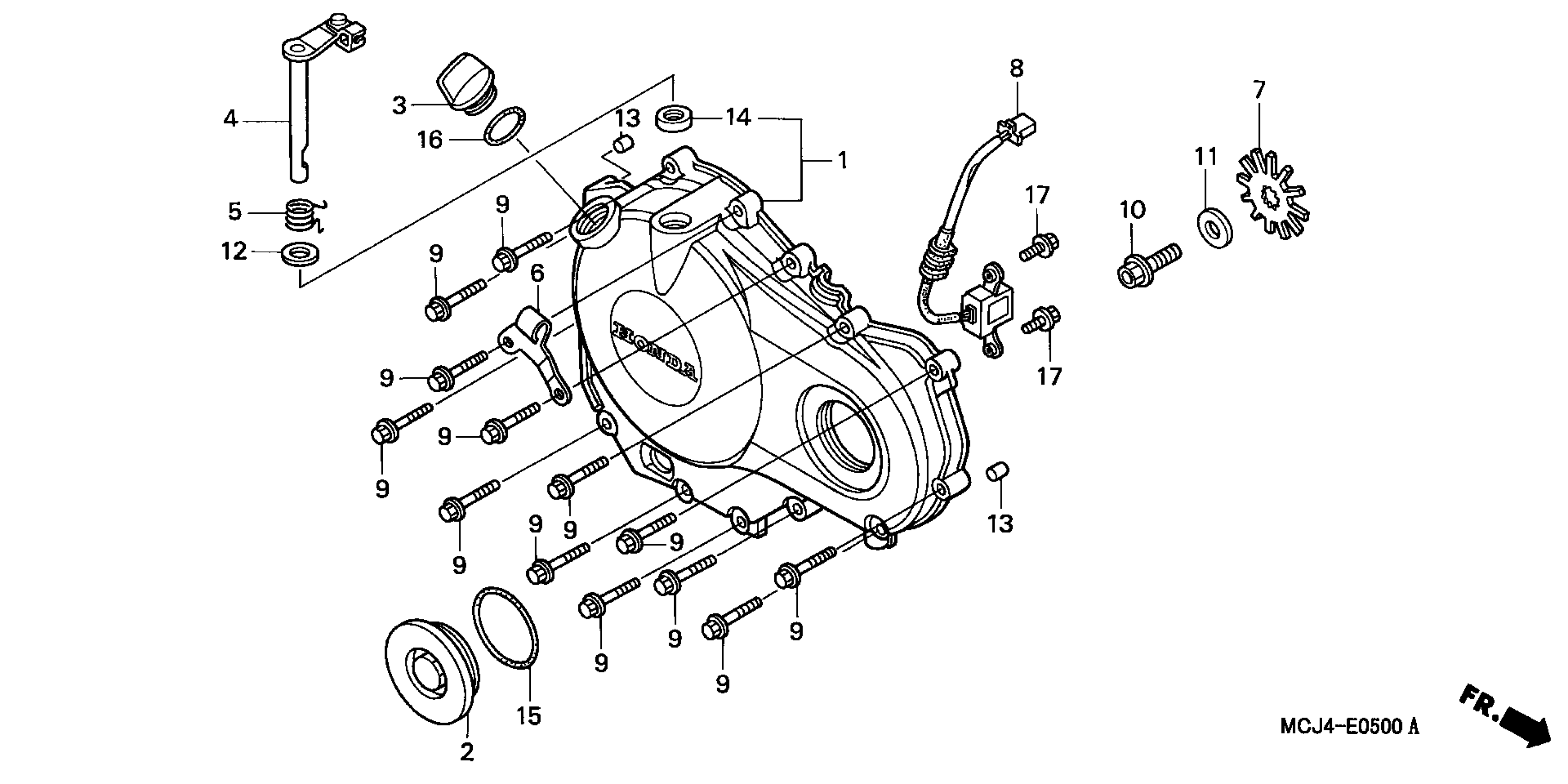

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE This part replaces 11330-MCJ-000.

11330-MCJ-750

Unavailable

COVER, R. CRANKCASE

11330-MCJ-750

Unavailable

CAP (45MM)

11332-ML7-000

$25.54

CAP, OIL FILLER

15611-KA4-710

$12.93

LEVER, CLUTCH

22810-MCJ-010

Unavailable

SPRING, CLUTCH LEVER

22815-MCJ-000

Unavailable

RECEIVER, CLUTCH CABLE

22821-MCJ-000

Unavailable

ROTOR, PULSE GENERATOR

30291-MCJ-000

Unavailable

GENERATOR ASSY., PULSE

30300-MCJ-000

Unavailable

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

BOLT, SPECIAL (10X25)

90013-430-000

$6.01

WASHER (10.5X27)

90405-KT7-000

$4.29

WASHER, BRAKE ARM

90525-GC4-700

$2.13

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.70

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

BOLT, FLANGE (6X14)

95701-06014-00

$0.91
