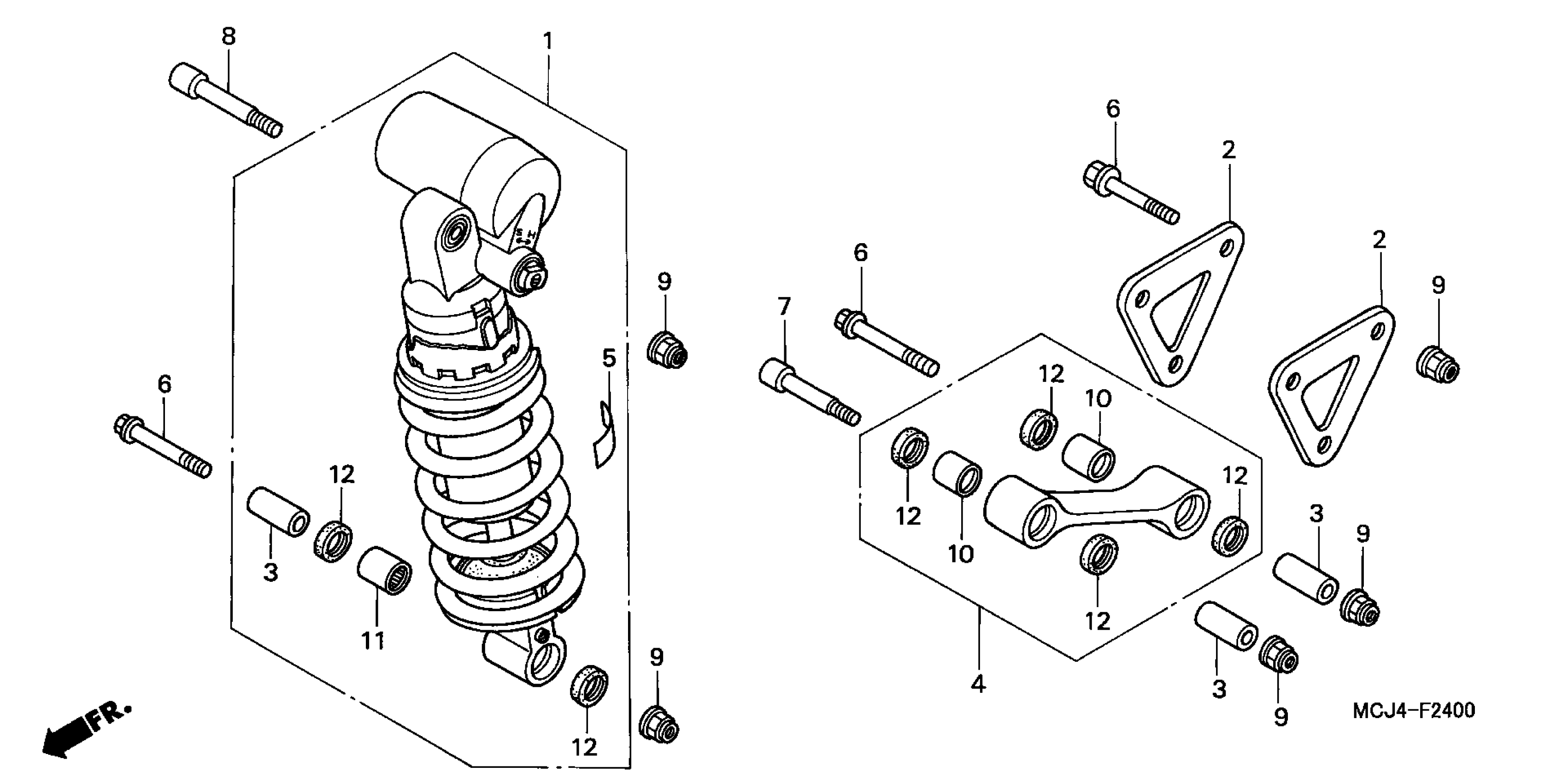

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 REAR SHOCK ABSORBER (1) Diagram

#

Description

Price

1

CUSHION ASSY., RR.

52400-MCJ-831

Unavailable

2

PLATE, CUSHION ARM

52461-MCJ-000

Unavailable

3

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

4

ROD SUB-ASSY., SHOCK CONNECTING

52475-MCJ-000

Unavailable

5

LABEL, RR. DAMPER (ENGLISH)

87516-KV6-610

$4.93

6

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

7

BOLT, SOCKET (10X66)

90110-KY6-000

$7.15

8

BOLT, SOCKET (10X55)

90110-ML7-000

$5.43

9

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

10

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

11

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

12

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21
