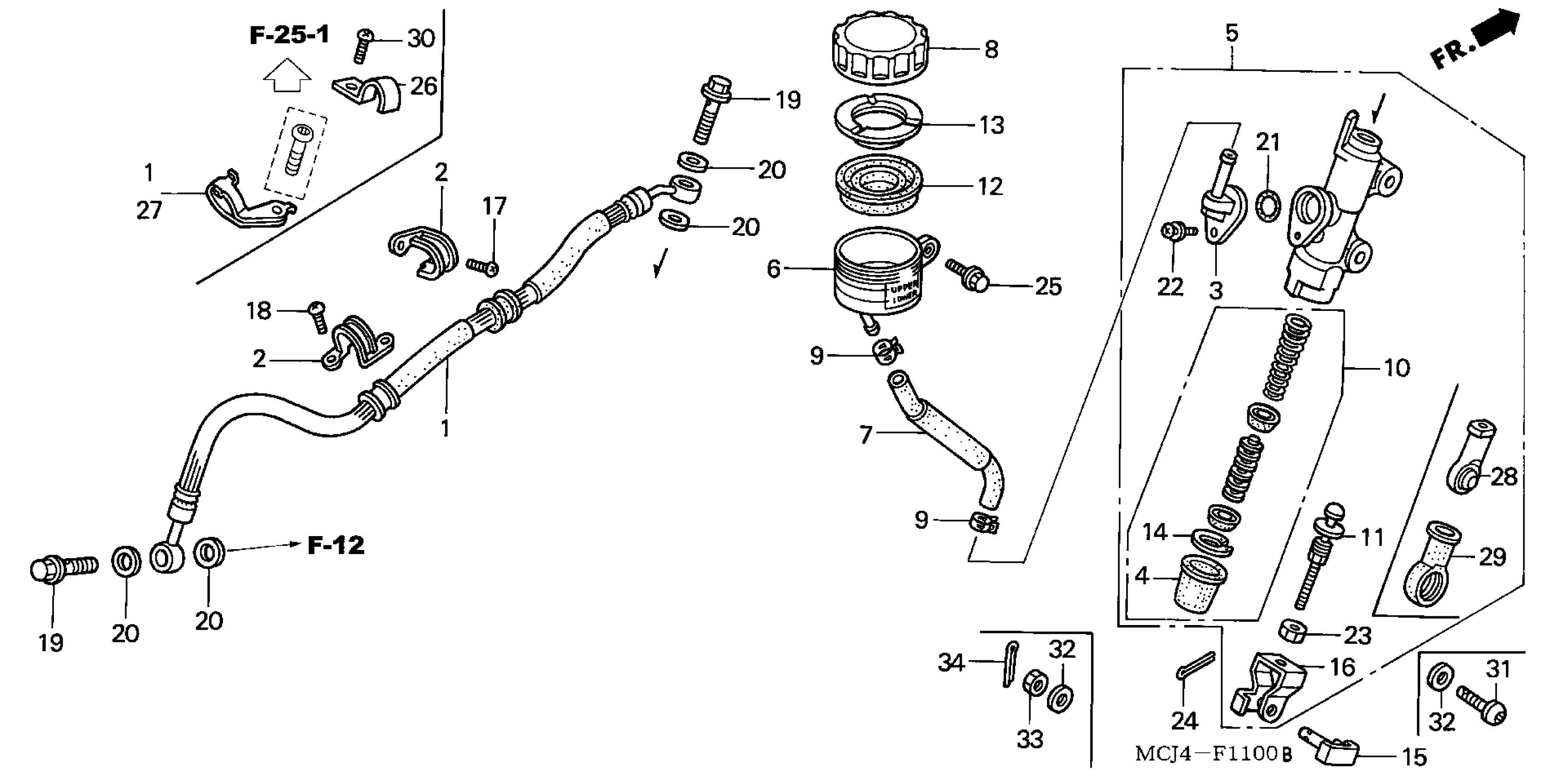

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MCJ-003

Unavailable

2

GUIDE, BRAKE HOSE

43468-MCJ-000

$8.27

3

CONNECTOR

43503-MR7-006

$12.51

4

BOOT

43504-MB2-006

$9.01

5

MASTER CYLINDER SUB-ASSY., RR.

43510-MCJ-006

Unavailable

6

CUP, OIL

43511-MR7-016

$29.55

7

HOSE, RR. MASTER CYLINDER

43512-MCJ-006

Unavailable

8

CAP, OIL CUP

43513-MY1-006

$26.39

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-305

$60.74

11

ROD, PUSH

43530-MM5-006

$25.22

12

DIAPHRAGM

45520-300-000

$8.13

13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

14

CIRCLIP

46182-500-013

$4.46

15

PIN, BRAKE ROD

46503-MAL-000

$5.46

16

JOINT, BRAKE ROD

46504-MAL-601

$12.20

17

SCREW, PAN (5X10)

90105-MCJ-000

Unavailable

18

SCREW, PAN (5X16)

90110-MCJ-000

Unavailable

19

BOLT, OIL (10X22)

90145-MS9-612

$6.82

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

O-RING (14.8X2.4)

91212-422-006

Unavailable

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

PIN, SPLIT (2.0X12)

94201-20120

$0.94

25

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
