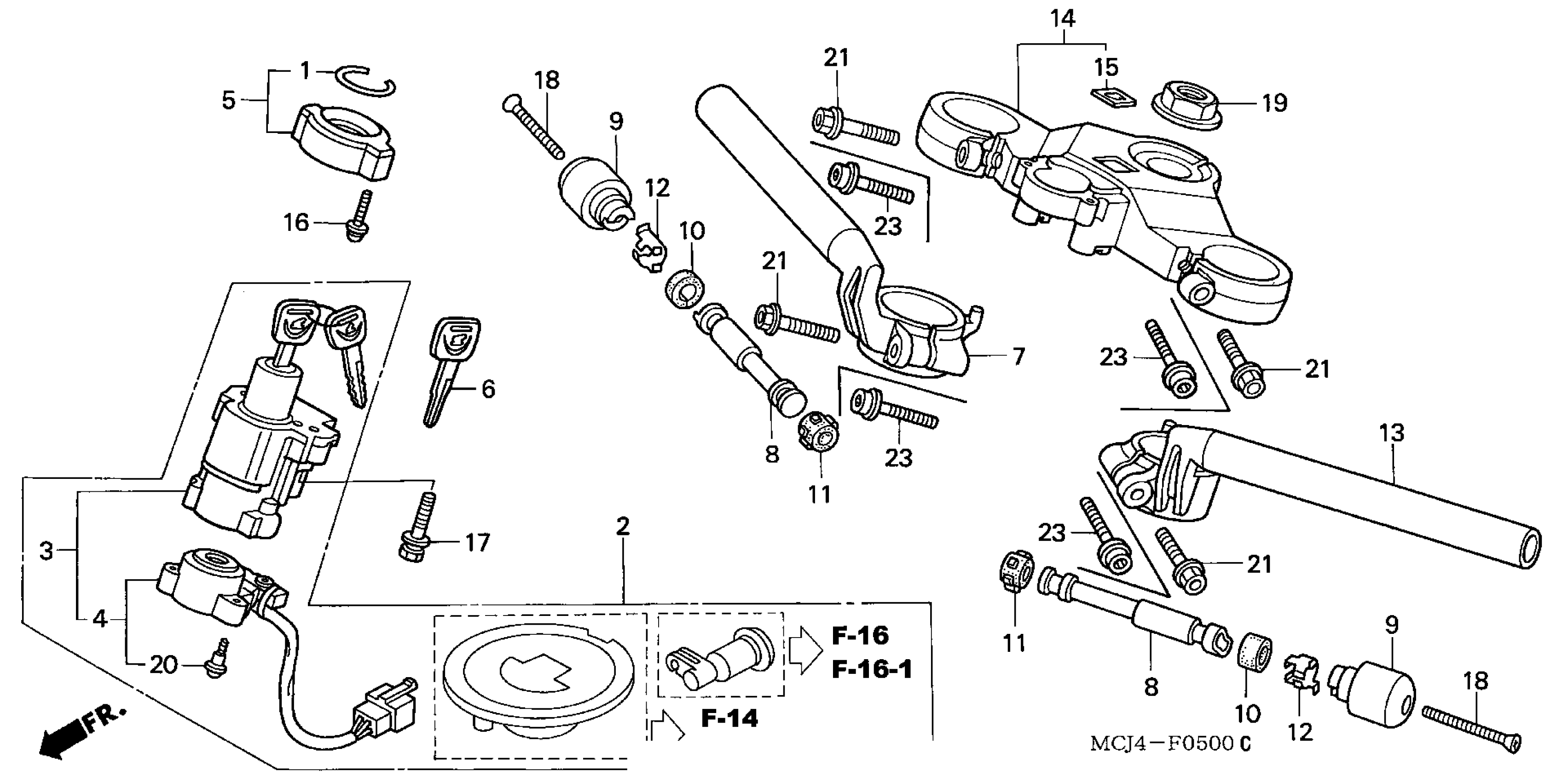

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH This part replaces 30433-MBW-600.

30433-MBW-602

$2.84

1

SEAL, IGNITION SWITCH This part replaces 30433-MBW-601.

30433-MBW-602

$2.84

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

LOCK SET

35010-MCJ-671

Unavailable

3

SWITCH ASSY., COMBINATION & LOCK

35100-MCJ-671

Unavailable

4

BASE, CONTACT

35101-MCJ-671

Unavailable

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

KEY, BLANK | (Optional).

35121-MAS-G01

$12.74

7

HANDLEBAR, R.

53100-MCJ-000

Unavailable

8

WEIGHT B, HANDLEBAR

53104-MV4-000

$25.83

9

WEIGHT, HANDLEBAR

53105-MN4-010

$21.73

10

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

10

RUBBER A, HANDLE WEIGHT

53106-MV9-000

$3.36

11

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

11

RUBBER A, HANDLE WEIGHT

53106-MV9-000

$3.36

12

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

13

HANDLEBAR, L.

53150-MCJ-000

Unavailable

14

BRIDGE, FORK TOP

53300-MCJ-000

Unavailable

15

EMBLEM, WING MARK

86150-MCF-300

Unavailable

16

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

17

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

18

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

19

NUT, STEERING STEM

90304-MJ4-670

$15.40

20

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

21

BOLT, FLANGE (8X40)

96300-08040-07

$2.02
