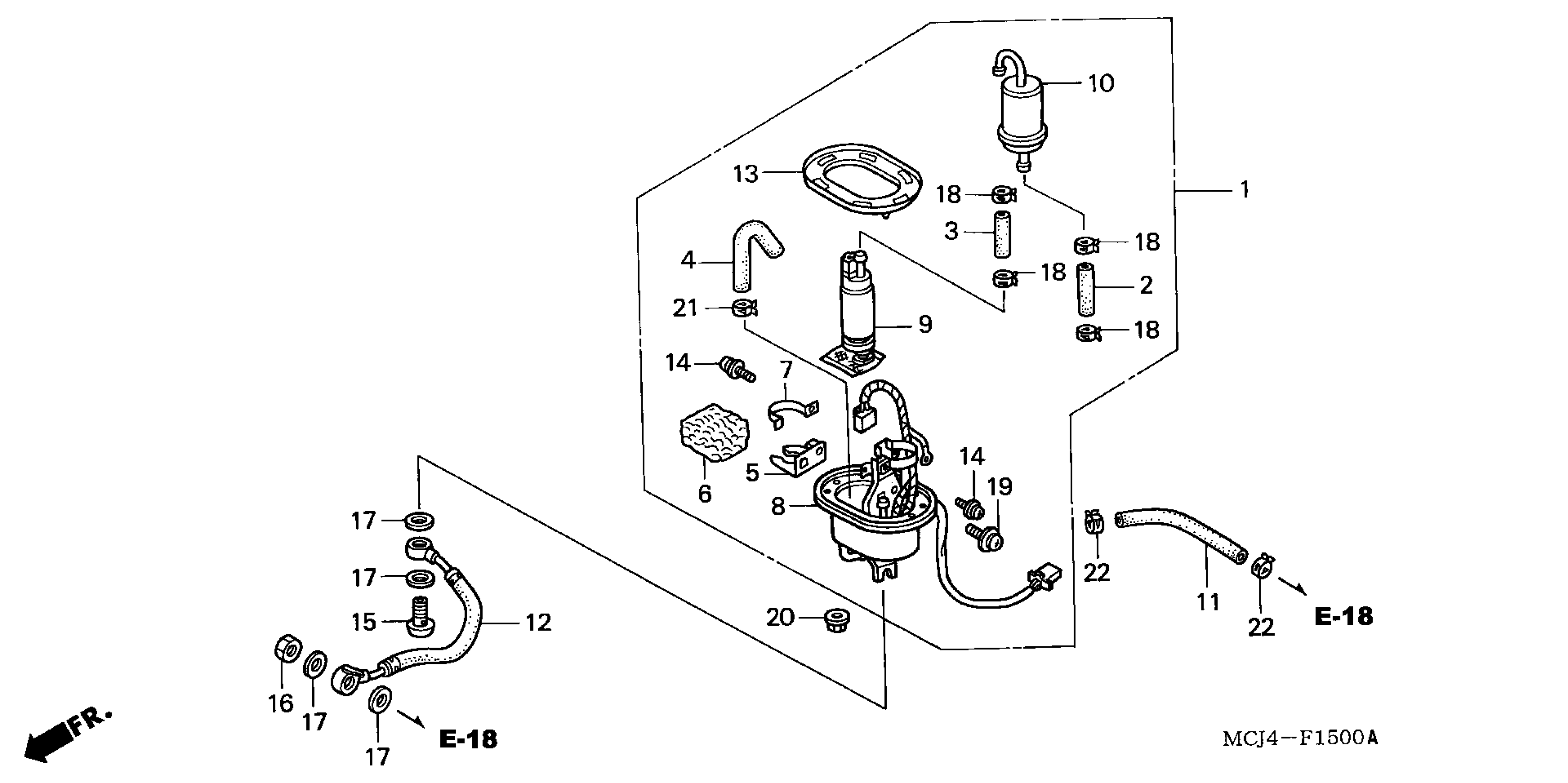

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 FUEL PUMP (1) Diagram

#

Description
Price

1

PUMP UNIT, FUEL This part replaces 16700-MCJ-000.

16700-MCJ-010

Unavailable

1

PUMP UNIT, FUEL

16700-MCJ-010

Unavailable

2

HOSE A, PUMP

16711-MAT-D00

$5.34

3

HOSE B, PUMP

16712-MAT-D01

$3.72

4

TUBE, FUEL PUMP RETURN

16713-MBG-010

$3.87

5

STAY B

16714-MAT-D00

$6.84

6

FILTER, FUEL RETURN

16714-MBG-000

$9.13

7

BAND B

16717-MAT-D00

Unavailable

8

STAY, FUEL PUMP

16720-MCJ-000

Unavailable

9

PUMP SUB-ASSY., FUEL

16730-MCJ-000

Unavailable

10

FILTER, FUEL

16900-MBG-013

$69.58

11

HOSE, FUEL RETURN This part replaces 17525-MCJ-000.

17525-MCJ-003

Unavailable

11

HOSE, FUEL RETURN

17525-MCJ-003

Unavailable

12

HOSE, FUEL FEED

17529-MCJ-010

Unavailable

13

GASKET, BASE

17574-MN5-000

$10.10

14

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.51

15

BOLT, BANJO (12MM)

90108-MBG-000

$10.46

16

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

17

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

18

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

19

SCREW-WASHER (5X12)

93893-05012-08

$1.49

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

CLAMP, TUBE (D8.5)

95002-40850-04

$2.41

22

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34
