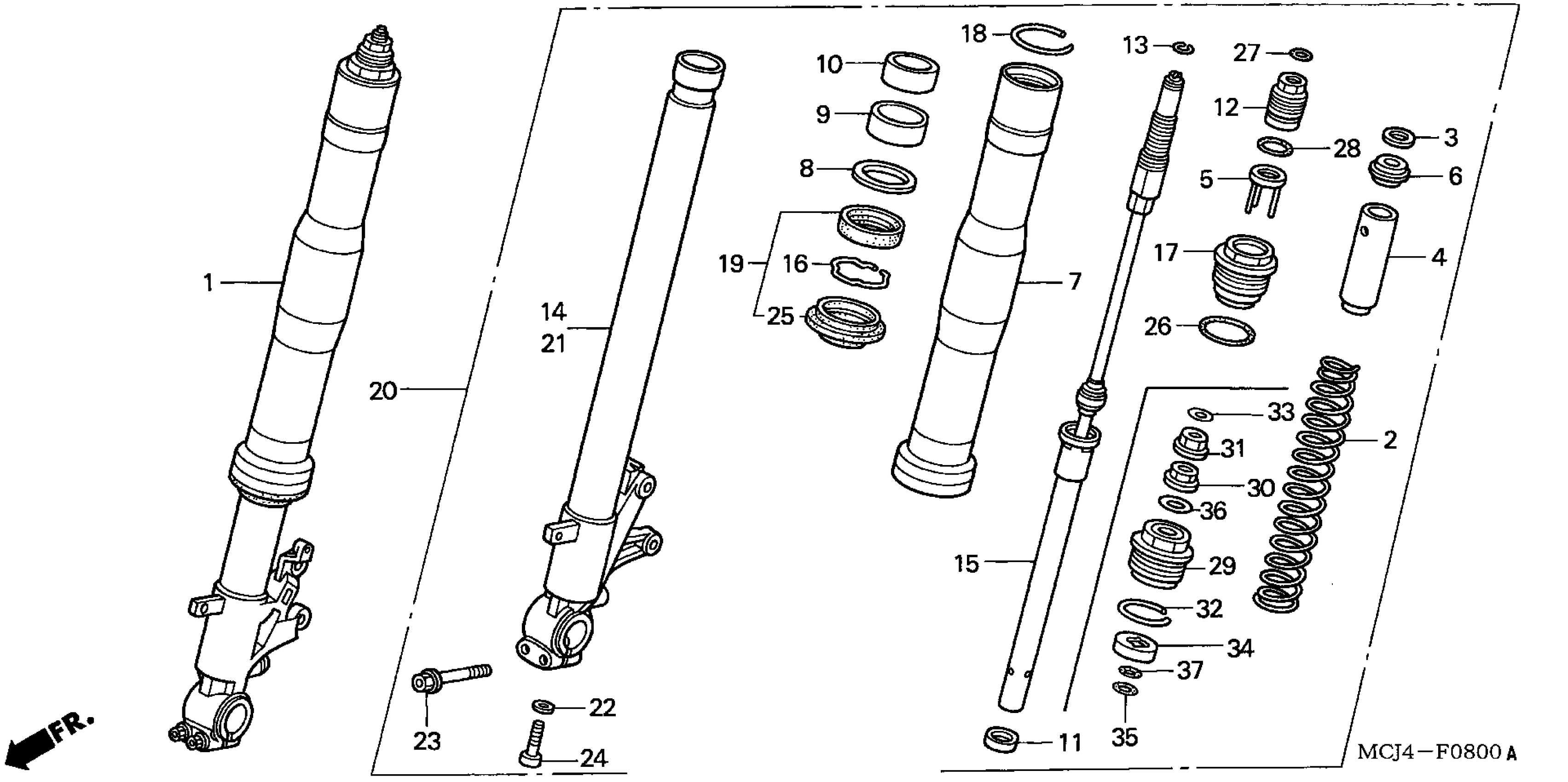

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (N/A: SEE COMPONENTS)

51400-MCJ-831

Unavailable

2

SPRING, FR. FORK

51401-MCJ-003

Unavailable

3

SEAT, SPRING

51403-MA0-771

$5.20

4

COLLAR, SPRING

51403-MCF-003

$32.00

5

PLATE, SPRING ADJUSTER

51404-MT7-003

Unavailable

6

STOPPER, SPRING SEAT

51406-MW4-003

$7.90

7

TUBE (OUTER)

51410-MCJ-831

Unavailable

8

RING, BACK-UP

51412-KA4-711

$9.65

9

BUSH, GUIDE

51414-MCF-003

$10.76

10

BUSH, SLIDER

51415-MCF-003

$7.95

11

PLATE, CENTERING

51421-MW4-003

$9.21

12

ADJUSTER, SPRING

51422-MCJ-003

Unavailable

13

RING B, STOPPER

51423-MT7-003

Unavailable

14

PIPE, R. SLIDE

51425-MCJ-831

Unavailable

15

DAMPER, FR.

51430-MCJ-003

Unavailable

15

DAMPER, FR. This part replaces 51430-MCJ-831.

51430-MCJ-003

Unavailable

16

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

17

BOLT, FR. FORK

51454-MCJ-003

Unavailable

18

RING, STOPPER

51455-MW4-003

$12.19

19

SEAL SET, FR. FORK

51490-MCF-000

$27.25

20

FORK ASSY., L. FR.

51500-MCJ-831

Unavailable

21

PIPE, L. SLIDE

51525-MCJ-831

Unavailable

22

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

23

BOLT, FLANGE (8X40)

90108-MR7-000

$5.05

24

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

25

DUST SEAL

91256-MCF-003

$14.23

26

O-RING (42.2X2.4)

91258-GF4-003

$5.90

27

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

27

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

28

O-RING (23.7X2.4)

91351-MT7-003

$7.11
