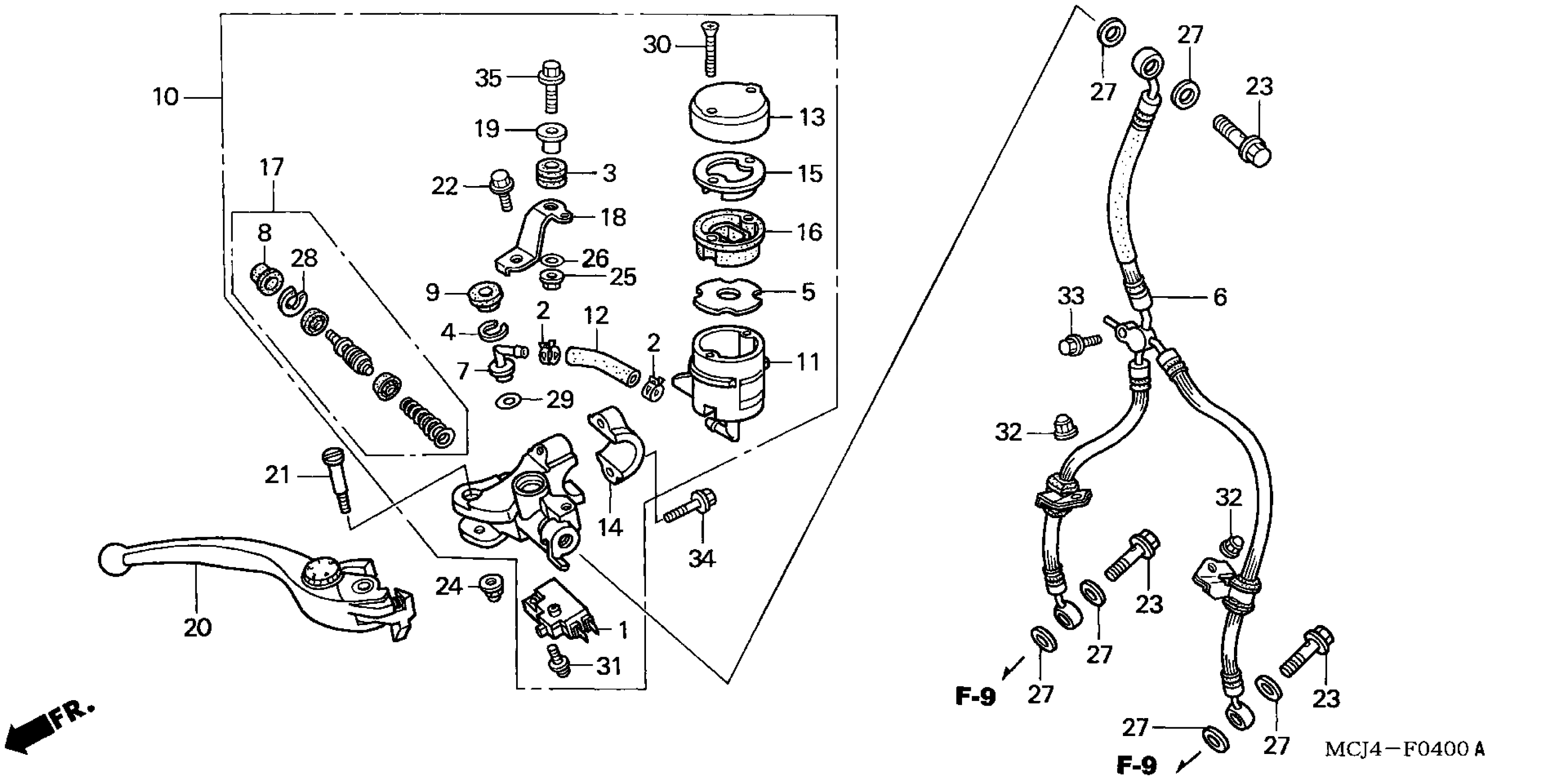

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

2

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

3

RUBBER, OIL CUP

43516-MCJ-006

$4.29

4

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.65

5

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.12

6

HOSE, FR. BRAKE

45125-MCJ-003

Unavailable

7

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.65

8

BOOT

45504-MCF-006

$10.31

9

COVER, DUST

45505-KV3-006

$3.97

10

MASTER CYLINDER SUB-ASSY., FR.

45510-MCJ-006

Unavailable

11

CUP, OIL

45511-KV3-016

$33.82

12

HOSE, MASTER CYLINDER OIL

45512-MCJ-006

Unavailable

13

CAP, OIL CUP

45513-KV3-006

$32.22

14

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

15

PLATE, DIAPHRAGM

45518-KV3-006

$11.46

16

DIAPHRAGM

45520-KV3-006

$12.83

17

MASTER CYLINDER SET

45530-MCF-006

Unavailable

18

STAY, FR. MASTER CYLINDER

45550-MCJ-006

Unavailable

19

COLLAR (6.3X13)

50324-425-010

$4.51

20

LEVER ASSY., R. HANDLE

53170-MCF-006

Unavailable

21

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

22

BOLT, FLANGE (6X12)

90117-MR7-000

$2.75

23

BOLT, OIL (10X22)

90145-MS9-612

$6.99

24

NUT, CAP (6MM)

90201-415-000

Unavailable

25

NUT, U (6MM)

90301-MG3-000

$6.60

26

WASHER (6X16)

90473-147-000

$1.28

27

WASHER, OIL BOLT

90545-300-000

$5.79

28

CIRCLIP

90651-MCF-006

$2.09

29

O-RING (14.8X2.4)

91212-422-006

$2.37

30

SCREW, FLAT (4X50)

93600-04050-1G

$0.94

31

SCREW-WASHER (4X12)

93893-04012-07

$1.32

31

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

32

NUT, CAP (6MM)

94021-06070-0S

$1.60

33

BOLT, FLANGE (6X18)

96001-06018-07

$1.16

34

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

35

BOLT, FLANGE (6X28)

96300-06028-07

$1.66
