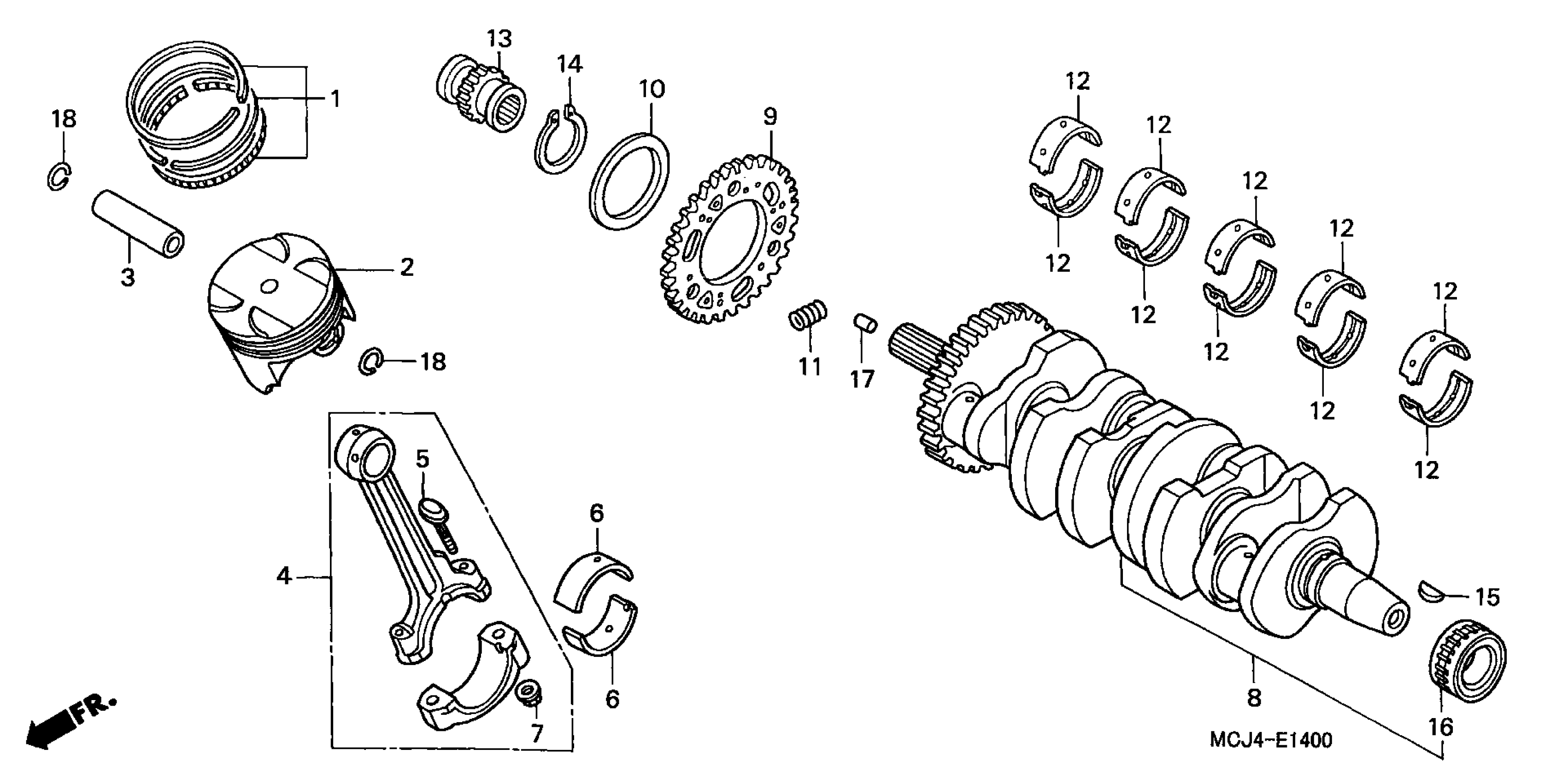

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13031-MCJ-000

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13041-MCJ-000

Unavailable

2

PISTON

13101-MCJ-000

Unavailable

2

PISTON (O.S. 0.25) | (Optional).

13103-MCJ-000

Unavailable

3

PIN, PISTON

13111-MCJ-000

Unavailable

4

ROD ASSY., CONNECTING

13210-MCJ-000

Unavailable

5

BOLT, CONNECTING ROD

13213-MCJ-000

Unavailable

6

BEARING A, CONNECTING ROD (BLUE)

13214-MCJ-003

Unavailable

6

BEARING B, CONNECTING ROD (BLACK)

13215-MCJ-003

Unavailable

6

BEARING C, CONNECTING ROD (BROWN)

13216-MCJ-003

$16.55

6

BEARING D, CONNECTING ROD (GREEN)

13217-MCJ-003

Unavailable

6

BEARING E, CONNECTING ROD (YELLOW)

13218-MCJ-003

$13.08

7

NUT, CONNECTING ROD

13215-ML7-000

$3.89

8

CRANKSHAFT

13300-MCJ-020

Unavailable

9

SUB-GEAR, PRIMARY

13303-MCJ-010

Unavailable

10

SPRING, SUB-GEAR FRICTION

13304-MCJ-010

Unavailable

11

SPRING, PRIMARY DAMPER

13306-MAT-000

$2.39

12

BEARING B, CRANKSHAFT (BROWN)

13314-MW0-003

$13.19

12

BEARING C, CRANKSHAFT (GREEN)

13315-MW0-003

$13.19

12

BEARING D, CRANKSHAFT (YELLOW)

13316-MW0-003

$13.19

12

BEARING E, CRANKSHAFT (PINK)

13317-MW0-003

$13.19

12

BEARING F, CRANKSHAFT (RED)

13318-MW0-003

$11.97

13

SPROCKET, TIMING

14312-MBW-000

$27.51

14

CIRCLIP, SPECIAL (OUTER) (42)

90601-MAS-000

$6.85

15

KEY, WOODRUFF (25X14)

90741-413-000

$2.56

16

BEARING, NEEDLE (28X41X21)

91021-MV9-671

$37.20

17

PIN, DOWEL (7X12)

94302-07120

$1.49

18

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
