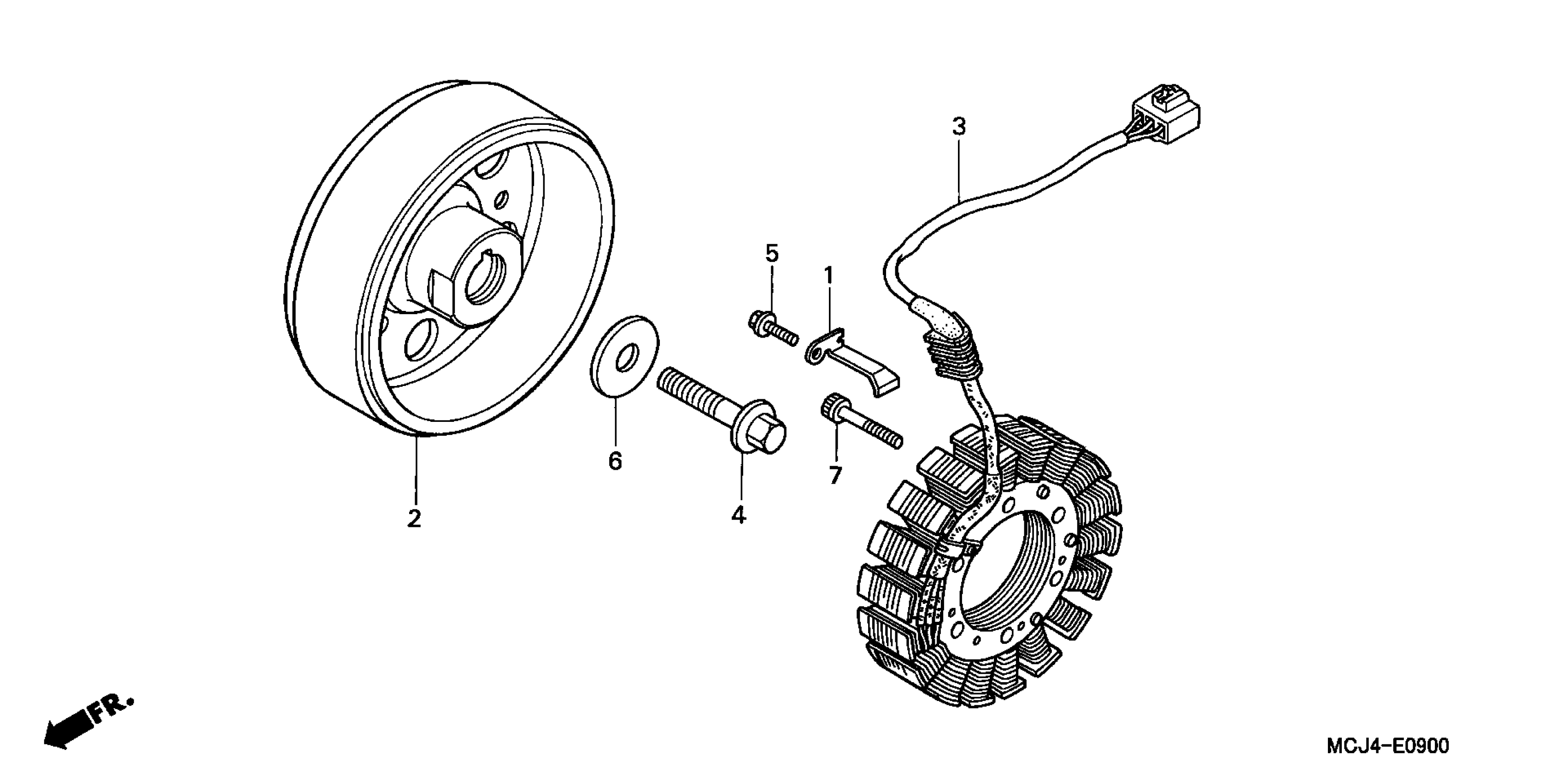

Honda CBR900REA (01) CBR929RE, JPN, VIN# JH2SC443-1M100001 ALTERNATOR Diagram

#

Description

Price

1

CLAMP, ALTERNATOR CORD

11333-MCJ-000

Unavailable

2

FLYWHEEL This part replaces 31110-MCJ-003.

31110-MEJ-003

Unavailable

2

FLYWHEEL

31110-MEJ-003

Unavailable

3

STATOR

31120-MCJ-003

Unavailable

4

BOLT, FLANGE (10MM)

90023-MBW-000

$8.91

5

BOLT, FLANGE (6X16) (CT200)

90029-888-000

$2.04

6

WASHER (10MM)

90404-MBW-000

$5.39

7

BOLT, SOCKET (6X32)

96600-06032-00

$1.68
