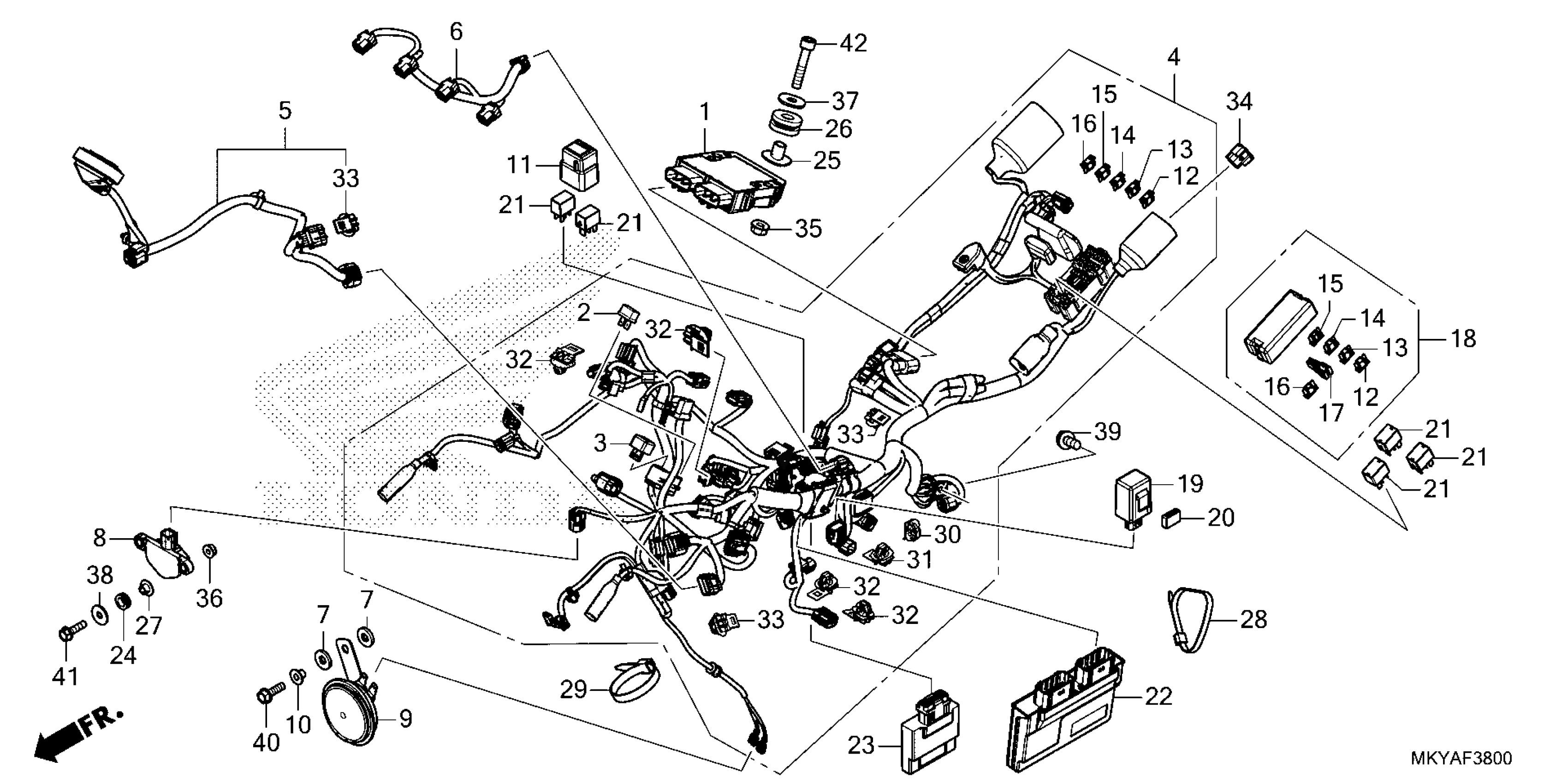

Honda CBR650RAC2AC (25) MOTORCYCLE, THA, VIN# MLHRH155-S5100001 TO MLHRH155-S5199999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$169.36

2

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$26.68

3

RECTIFIER, SILICON

31700-196-000

$23.71

4

WIRE HARNESS

32100-MKY-LA0

$629.72

5

SUB-HARNESS, FR.

32103-MKY-E00

$32.17

6

SUB-HARNESS, INJECTOR

32104-MKY-D50

$17.71

7

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.29

8

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$98.77

9

HORN (HIGH)

38110-KPP-T01

$31.88

10

COLLAR, HORN SETTING

38117-KFE-701

$0.70

11

SUSPENSION (2P)

38200-K56-N00

$3.62

12

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.89

13

FUSE, BLADE (10A)

38221-SNA-A41

$2.89

14

FUSE, BLADE (15A)

38221-SNA-A51

$3.39

15

FUSE, BLADE (20A)

38221-SNA-A61

$3.39

16

FUSE, BLADE (30A)

38221-SNA-A81

$2.20

17

PULLER, MINI FUSE

38235-SNA-A01

$3.47

18

COVER, POWER BOX

38255-MKY-EA1

$8.72

19

RELAY, TURN SIGNAL (LED)(ESS)

38301-MLL-D01

$45.19

20

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

21

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$11.86

22

PGM-FI UNIT

38770-MKY-LA3

$348.14

23

CONTROL UNIT, CLUTCH

38840-MKY-E82

$178.78

24

RUBBER, SIDE COVER

64535-MFJ-D00

$1.77

25

COLLAR, PILLION SEAT MOUNTING

77326-MJS-J70

$3.68

26

RUBBER, PILLION SEAT MOUNTING

77327-MJS-J70

$4.07

27

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.09

29

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

30

CLIP, CONNECTOR (DARK GRAY)

91534-SWA-003

$8.70

31

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

32

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

33

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

34

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.46

35

NUT, FLANGE (6MM)

94050-06070

$1.32

36

NUT, FLANGE (6MM)

94050-06080

$0.59

37

WASHER, PLAIN (6MM)

94103-06700

$0.65

38

WASHER, PLAIN (6MM)

94103-06800

$0.71

39

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

40

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

41

BOLT, FLANGE (6X22)

95701-06022-08

$1.64

42

BOLT, SOCKET (6X32)

96600-06032-00

$1.68
