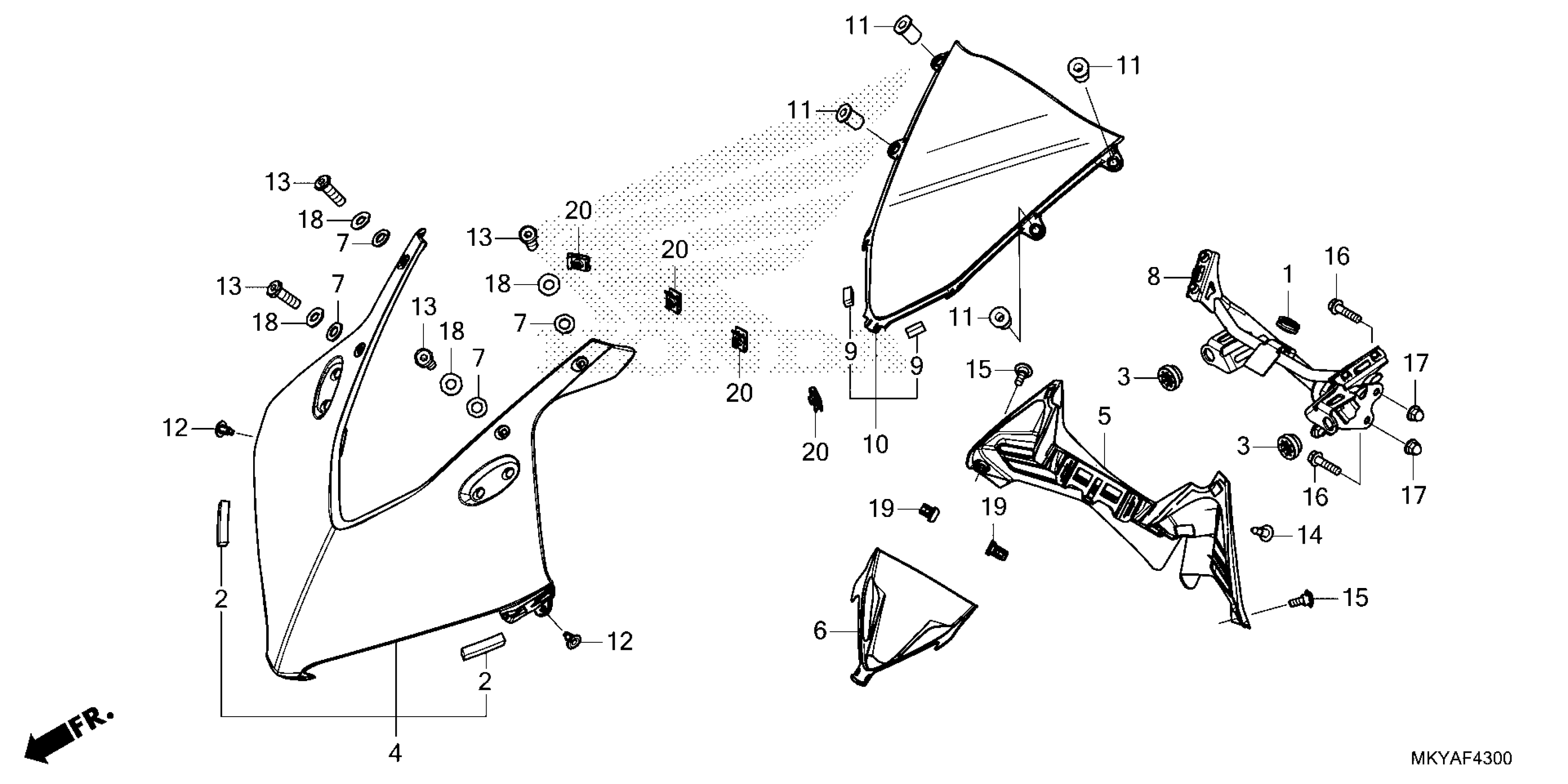

Honda CBR650RAC2AC (25) MOTORCYCLE, THA, VIN# MLHRH155-S5100001 TO MLHRH155-S5199999 UPPER COWL Diagram

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.75

SPONGE, CUSHION

33109-MKY-E00

$1.49

RUBBER, HEADLIGHT CASE MOUNTING

61304-KRY-900

$1.49

COWL, FR. *R380*

64100-MKY-E10ZA

$55.61

PANEL, METER

64171-MKY-E00

$9.46

VISOR, METER

64172-MKY-E00

$7.20

WASHER, SCREEN SETTING

64205-166-610

$2.21

STAY, FR. COWL

64501-MKY-E00

$45.28

SPONGE, SCREEN

67105-MKN-D10

$2.92

WINDSCREEN SET (TYPE1) (WL)

67110-MKN-D10ZA

$75.08

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.54

CLIP, BUMPER SEAL

90116-K2P-V61

$1.49

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.49

BOLT, FLANGE (8X32)

90164-GHB-690

$1.49

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.49

WASHER, THRUST (5MM)

90504-964-000

$1.90

CLIP, SLIDE

90651-K14-A31

$1.49

NUT, CLIP (5MM)

90677-KAN-T00

$1.49
