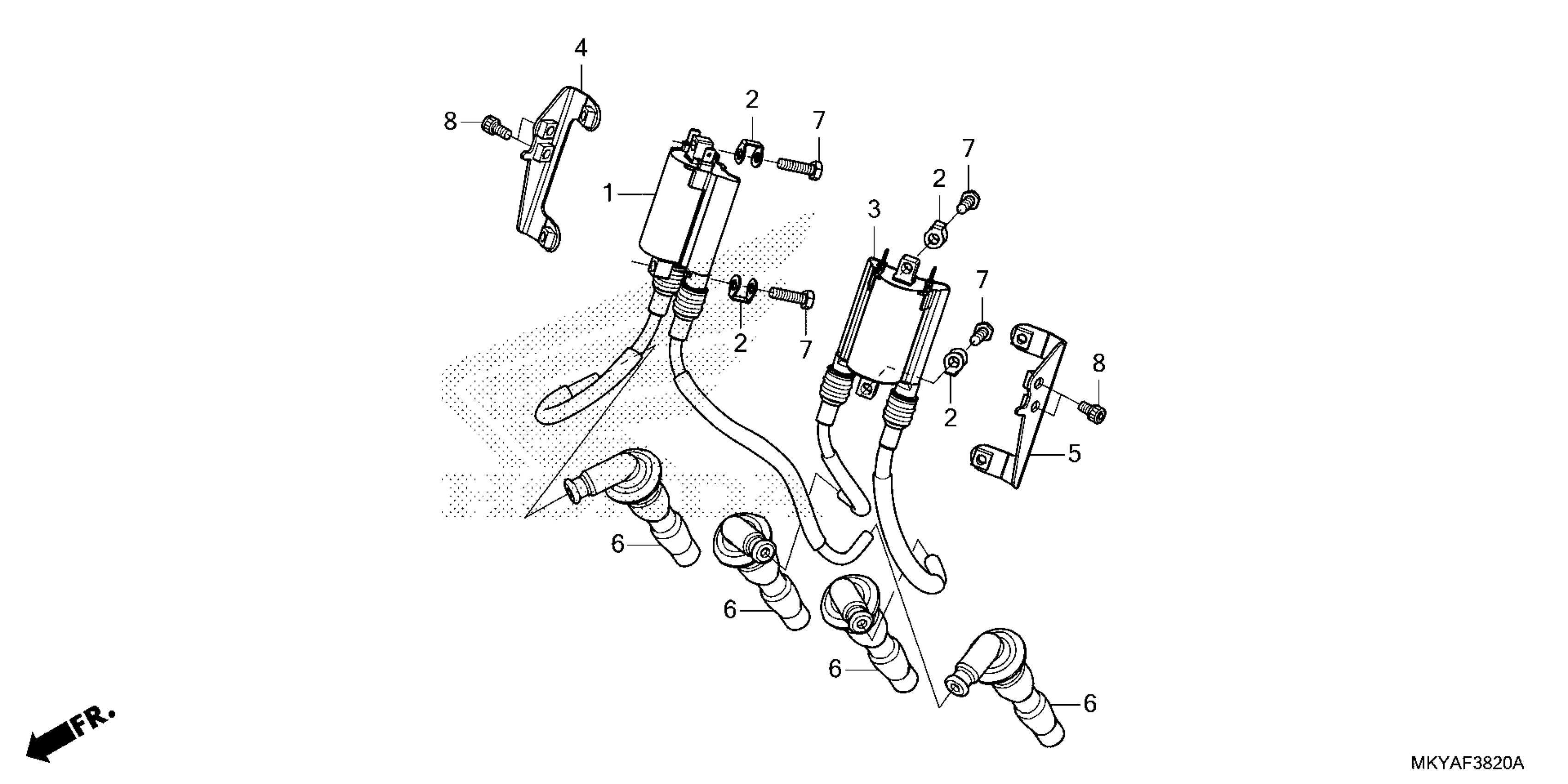

Honda CBR650RAC2AC (25) MOTORCYCLE, THA, VIN# MLHRH155-S5100001 TO MLHRH155-S5199999 IGNITION COIL Diagram

COIL ASSY., IGNITION (#1,#4)

30511-MKN-D51

$62.97

SPACER, IGNITION COIL

30520-GFM-900

$2.61

COIL ASSY., IGNITION (#2,#3) (NOT AVAILABLE)

30521-MKN-D51

$60.79

STAY, R. IGNITION COIL

30550-MKN-D51

$5.92

STAY, L. IGNITION COIL

30560-MKN-D51

$5.92

CAP ASSY., NOISE SUPPRESSOR

30700-MBG-003

$31.11

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BOLT, SOCKET (6X12)

96600-06012-07

$1.49

BOLT, SOCKET (6X12) This part replaces 96700-06012-07.

96600-06012-07

$1.49
