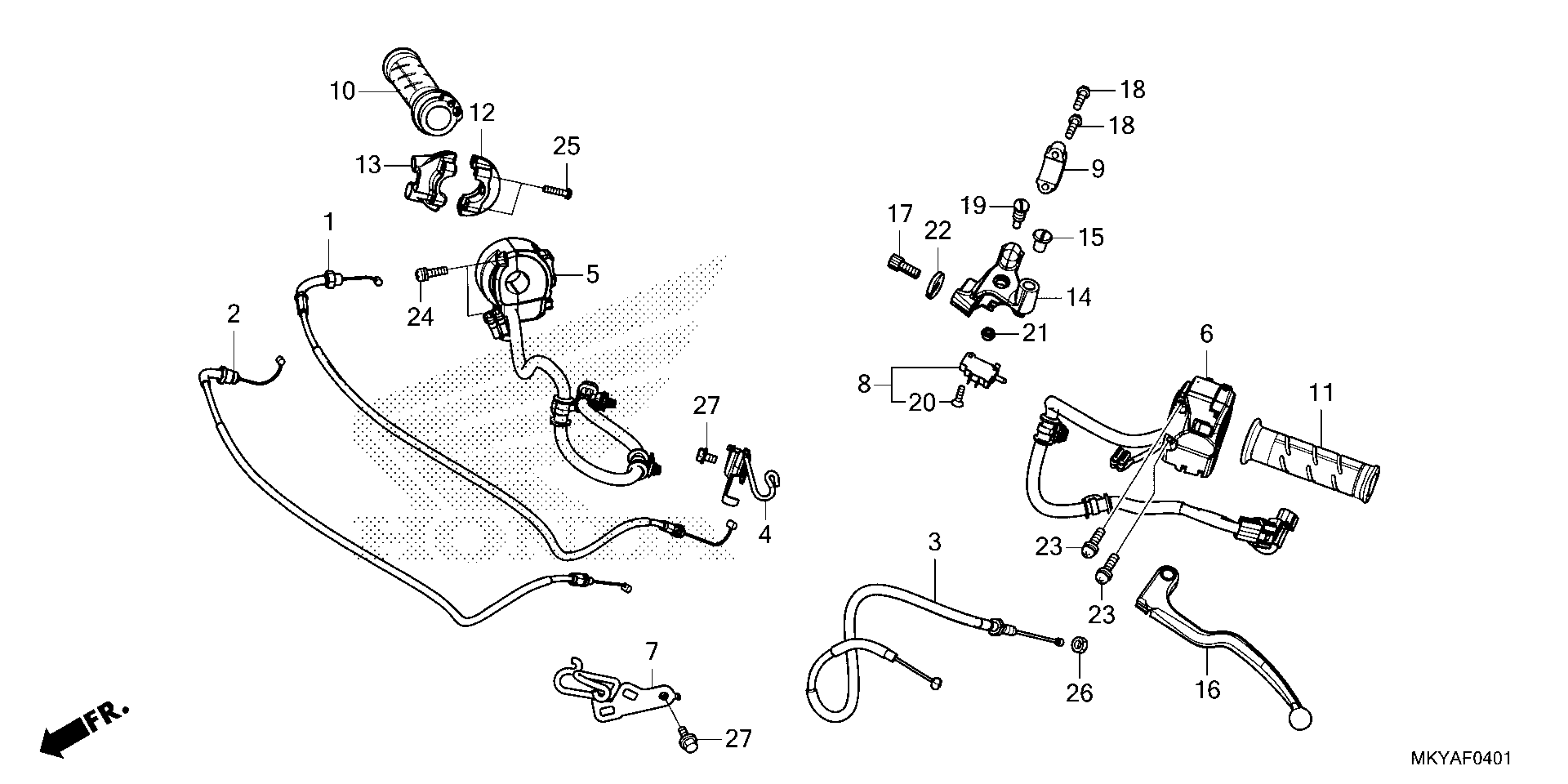

Honda CBR650RAC2AC (25) MOTORCYCLE, THA, VIN# MLHRH155-S5100001 TO MLHRH155-S5199999 HANDLE LEVER@SWITCH@CABLE (CBR650RAC) Diagram

CABLE A, THROTTLE

17910-MKY-E01

$10.33

CABLE B, THROTTLE

17920-MKY-E01

$8.95

CABLE, CLUTCH

22870-MKY-E01

$9.64

GUIDE, CABLE

35106-MKN-D50

$12.74

SWITCH ASSY.

35130-MKY-E01

$121.26

SWITCH, TURN SIGNAL

35200-MKY-E01

$104.15

STAY, L. CLIP

35205-MKN-D10

$10.26

SWITCH SET, CLUTCH

35335-MKJ-D00

$15.49

HOLDER, MASTER CYLINDER

45517-KCW-870

$11.14

GRIP, THROTTLE

53140-MGS-D30

$28.33

GRIP, L. HANDLE

53150-MGS-D30

$12.11

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$16.86

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$17.98

HOLDER, CLUTCH LEVER

53172-MJE-D00

$48.03

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

LEVER, L. HANDLE (COO) This part replaces 53178-MJE-D00.

53178-MJE-305

$19.75

LEVER, L. HANDLE (COO)

53178-MJE-305

$19.75

BOLT, WIRE ADJUSTING

53192-MJE-D00

$4.51

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

NUT, U (6MM)

90301-782-000

$1.62

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

SCREW-WASHER (5X16)

90508-MGS-D30

$1.87

SCREW, PAN (5X22)

93500-05022-0G

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
