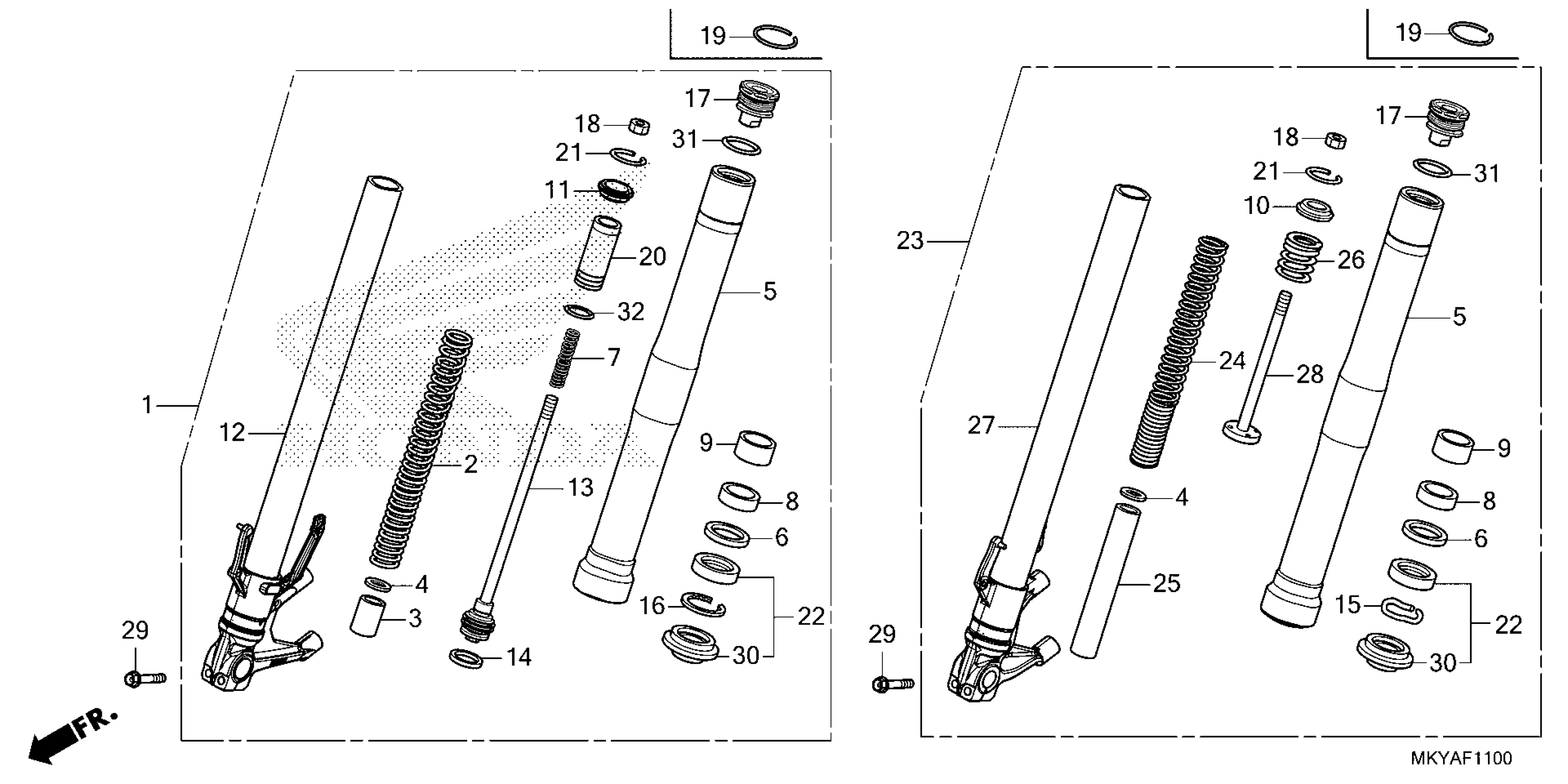

Honda CBR650RAC2AC (25) MOTORCYCLE, THA, VIN# MLHRH155-S5100001 TO MLHRH155-S5199999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MKY-E01

$454.25

2

SPRING, R. FR. FORK

51401-MKY-E01

$29.84

3

COLLAR, SPRING

51402-MKY-E01

$1.58

4

JOINT, SPRING

51404-MKP-DN1

$2.86

5

TUBE (OUTER)

51410-MKY-DP1

$236.77

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

7

SPRING, R. REBOUND

51412-MKY-D51

$2.49

8

BUSH, GUIDE

51414-MFJ-A51

$6.75

9

BUSH, SLIDER

51415-MFJ-A51

$6.75

10

SEAT, STOPPER

51419-K94-T01

$8.42

11

SEAT, R. STOPPER

51419-MKY-D51

$5.84

12

PIPE, R. SLIDE

51425-MKY-E01

$274.97

13

ROD, PISTON

51426-MKY-E01

$45.55

14

RING, PISTON

51437-MKY-D51

$1.26

15

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

16

CIRCLIP (INNER)

51447-MB4-003

$4.33

17

BOLT, FR. FORK

51450-K98-J61

$70.93

18

NUT, HEX.

51451-MKY-D51

$12.46

19

RING, STOPPER

51455-MEE-D01

$2.41

20

CASE, ROD GUIDE

51455-MKY-E01

$44.26

21

RING, STOPPER

51456-K94-T01

$2.03

22

SEAL SET, FR. FORK

51490-MKL-D81

$22.56

23

FORK ASSY., L. FR.

51500-MKY-E01

$424.06

24

SPRING, L. FR. FORK

51501-MKY-E01

$23.48

25

COLLAR B, SPRING

51502-MKY-E01

$4.71

26

SPRING, L. REBOUND

51512-MKY-D51

$4.12

27

PIPE, L. SLIDE

51525-MKY-E01

$276.59

28

ROD

51526-MKY-D51

$12.65

29

BOLT, FLANGE (8X40)

90107-MGE-000

$2.42

30

DUST SEAL

91251-MKL-D81

$9.51

31

O-RING (39.7X2.4)

91258-MEE-D01

$1.93

32

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.51
