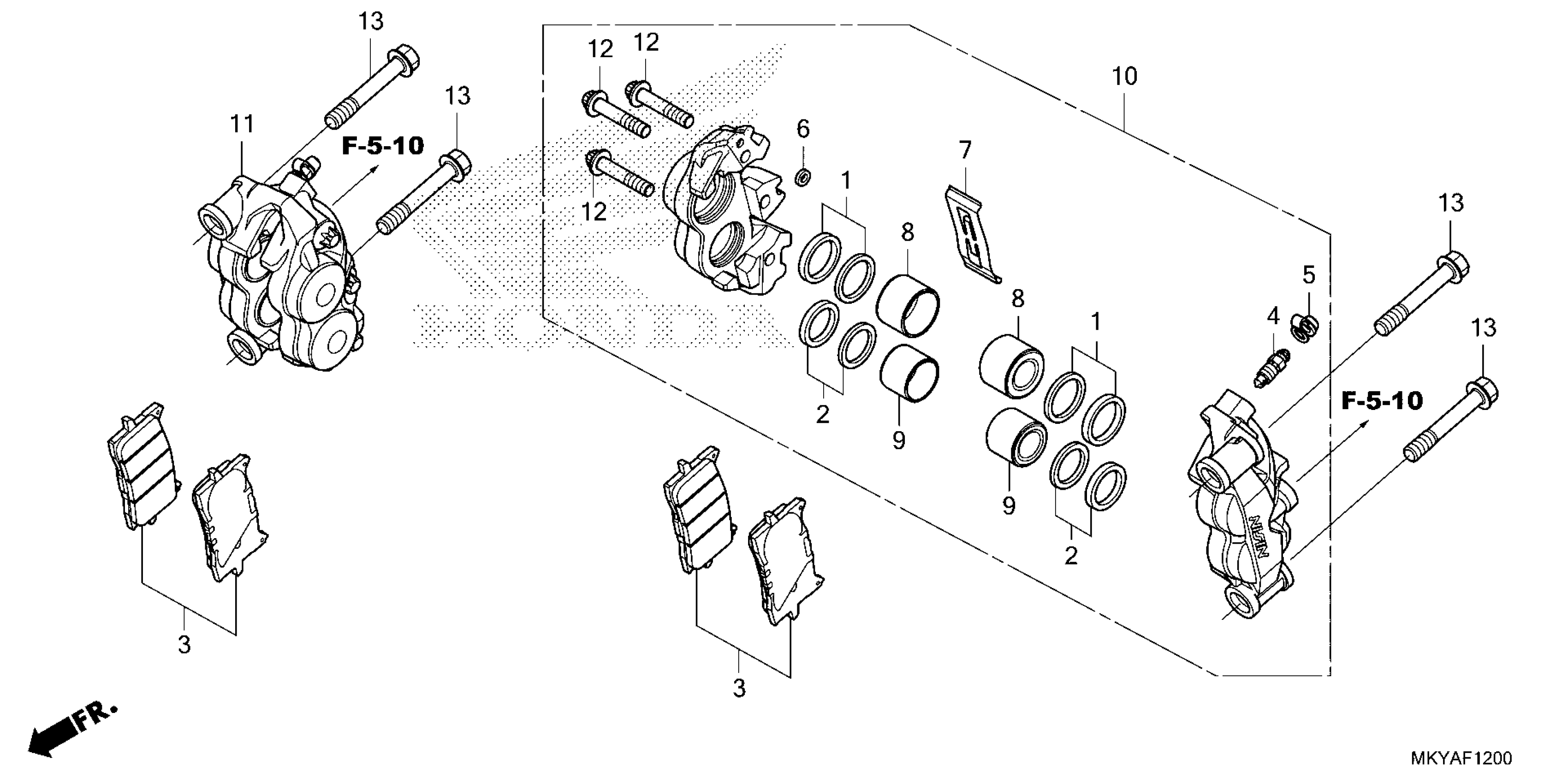

Honda CBR650RAC2AC (25) MOTORCYCLE, THA, VIN# MLHRH155-S5100001 TO MLHRH155-S5199999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-MCZ-006

$5.81

2

SEAL SET, PISTON

06452-MCZ-006

$5.81

3

PAD SET, FR.

06455-MKN-D51

$69.27

4

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

5

CAP, BLEEDER

43353-461-771

$5.05

6

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.72

7

SPRING, PAD

45106-MJP-G51

$8.74

8

PISTON A

45107-MJP-G52

$48.20

9

PISTON B

45117-MJP-G52

$45.26

10

CALIPER SUB-ASSY.

45150-MKY-E01

$309.52

11

CALIPER SUB-ASSY.

45250-MKY-E01

$309.52

12

BOLT, TORX (8X38)

90104-MJP-G51

$5.08

13

BOLT, FLANGE (10X55)

90131-MKP-DN0

$3.11
