Description

Price

1

CASE, DRIVE CHAIN

40511-MJE-D00

$21.93

2

CHAIN, DRIVE (DID525V11-120ZB) (STANDARD LINK 118L)

40540-MJE-D01

$138.79

2

CHAIN, DRIVE (RK525KRW-120LJFZ) (STANDARD LINK 118L)

40540-MJE-D02

$198.51

3

MASTER LINK (DAIDO)

40545-MJE-D01

$15.32

3

MASTER LINK (RK)

40545-MJE-D02

$25.41

4

COLLAR, RR. AXLE

42305-MJE-D00

$13.52

5

BOLT, SWINGARM PIVOT

52101-MKN-D50

$62.54

6

COLLAR, CENTER PIVOT DISTANCE

52141-MJE-D00

$17.23

7

COLLAR, R. PIVOT DISTANCE

52142-MJE-D00

$12.28

8

COLLAR, L. PIVOT DISTANCE

52143-MJE-D00

$12.35

9

CAP, RR. SWINGARM

52161-KZZ-900

$2.42

10

SLIDER, CHAIN

52170-MJE-D00

$16.53

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

12

SWINGARM SUB-ASSY., RR.

52200-MKN-D50

$663.51

13

SCREW, PAN (5X12)

90104-KPP-900

$0.75

14

BOLT, HEX. (8X50)

90106-MCF-D00

$2.20

15

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.22

16

NUT, U (18MM)

90305-MJE-D01

$9.64

17

NUT, HEX. (10MM)

90309-357-000

$3.16

18

WASHER (18X32X2)

90401-KZ4-890

$4.16

19

CIRCLIP (INNER) (37)

90651-MEW-920

$2.86

20

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$9.12

21

BEARING, NEEDLE (30X37X20)

91055-MGS-D31

$17.49

22

BEARING, NEEDLE

91071-MR7-003

$22.90

23

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

24

DUST SEAL (30X37X4)

91253-KZ3-861

$7.79

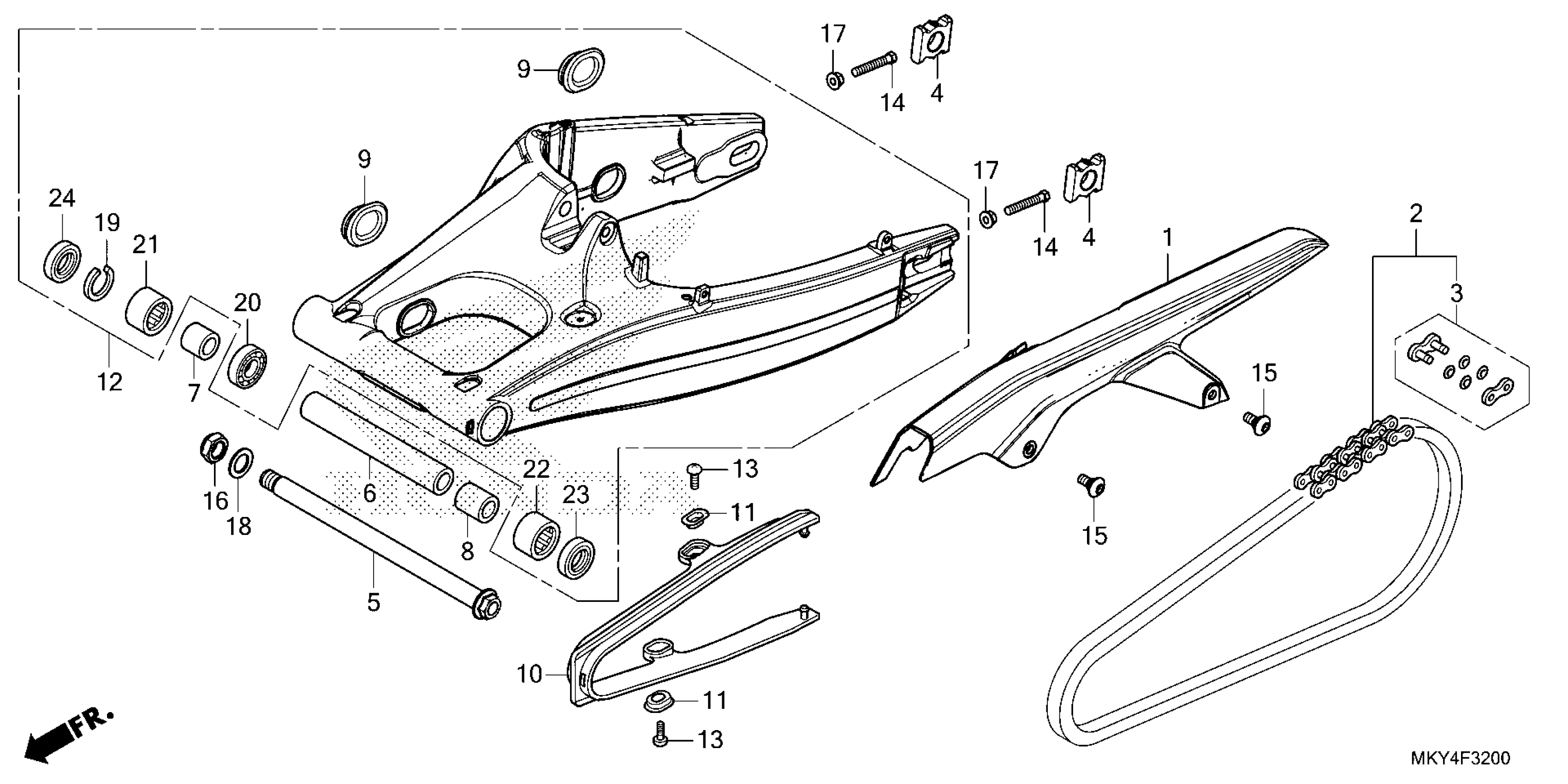

Honda CBR650RAAC (22) MOTORCYCLE, THA, VIN# MLHRH015-N5300001 SWINGARM Diagram
