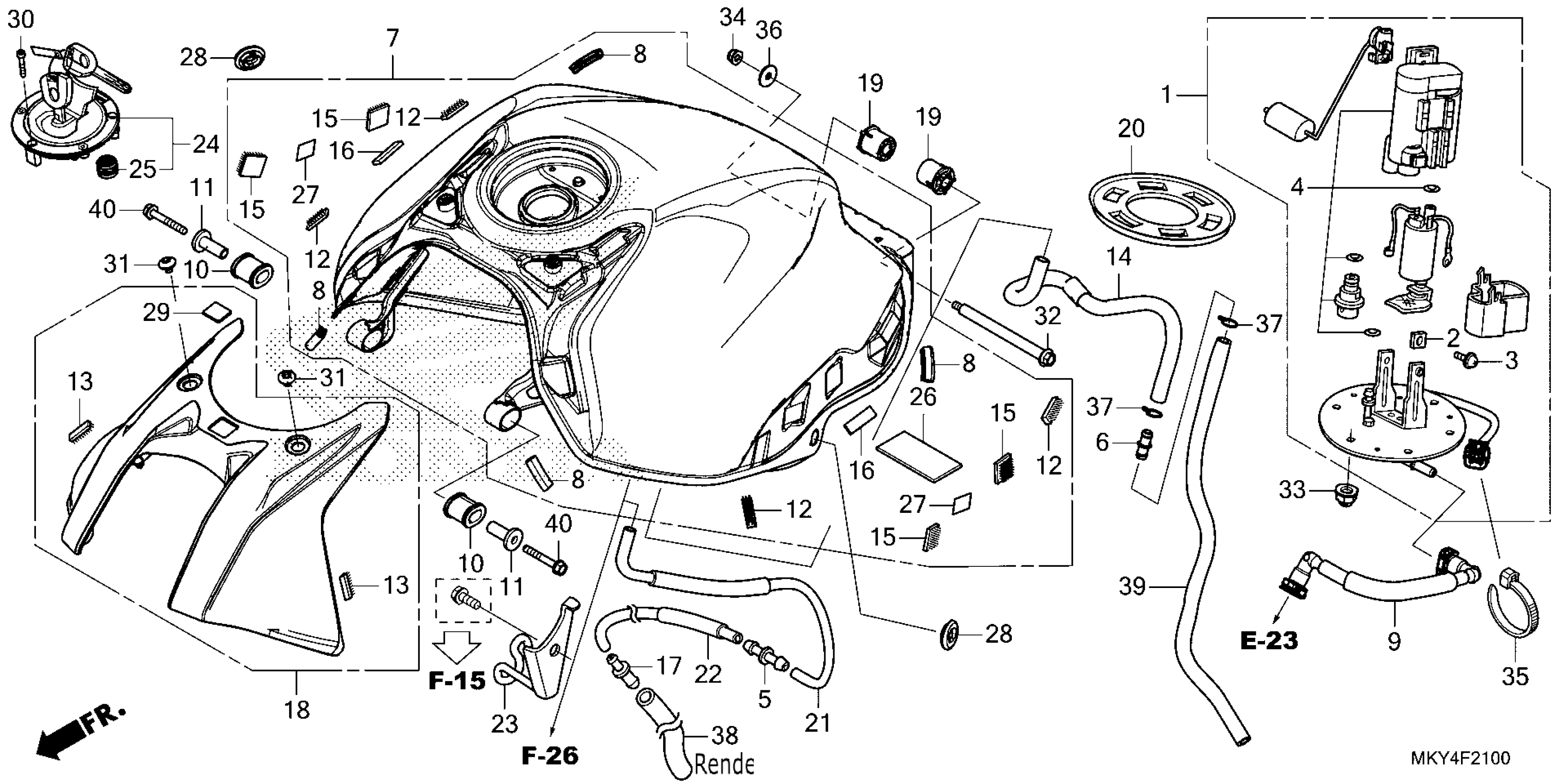

Honda CBR650RAAC (22) MOTORCYCLE, THA, VIN# MLHRH015-N5300001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS)

16700-MKN-D52

$501.11

2

STOPPER

16711-MGS-D31

$4.84

3

SCREW (4X6.6)

16712-MGS-D31

$1.89

4

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

6

JOINT, BREATHER TUBE

17359-419-670

$1.95

7

TANK, FUEL (TYPE1)

17500-MKY-D00ZA

$797.08

8

TRIM, FUEL TANK *NH1* (BLACK)

17516-KCZ-000ZB

$2.02

9

HOSE, FUEL FEED

17526-MKY-D51

$35.70

10

RUBBER, FR. TANK MOUNTING

17534-MKN-D50

$2.75

11

COLLAR

17538-KZZ-900

$2.41

12

FASTENER A, DUAL LOCK (8X25)

17540-MJE-D00

$1.56

13

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.49

14

TUBE, DRAIN

17543-MJE-D00

$5.90

15

FASTENER F, DUAL LOCK (20X20)

17543-MJE-DB0

$2.56

16

RUBBER, PROTECTOR

17550-MKY-D50

$2.07

18

CVR, FR. *NH436M*

17570-MKY-D00ZA

$34.38

19

CUSHION, RR. FUEL TANK

17572-MJE-D00

$2.39

20

GASKET, BASE

17574-MGS-D30

$24.44

24

CAP COMP This part replaces 17620-MJE-D03.

17620-MJE-D04

$209.19

24

CAP COMP

17620-MJE-D04

$209.19

25

SEAL, BREATHER

17621-MGP-D62

$5.14

26

FILM, PROTECTOR

50173-KWT-700

$4.23

27

FILM B, PROTECTOR

77227-KVK-900

$1.75

28

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

29

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

30

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

31

SCREW, PAN (6X8)

90130-MKN-D50

$1.49

32

BOLT, HINGE (10X102.4)

90135-MJE-D00

$3.05

33

NUT, CAP (6MM)

90201-415-000

$2.05

34

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

35

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

36

WASHER, PLAIN (6MM)

94103-06800

$1.49

37

CLIP, TUBE (B12.5)

95002-02130

$1.49

39

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

40

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80
