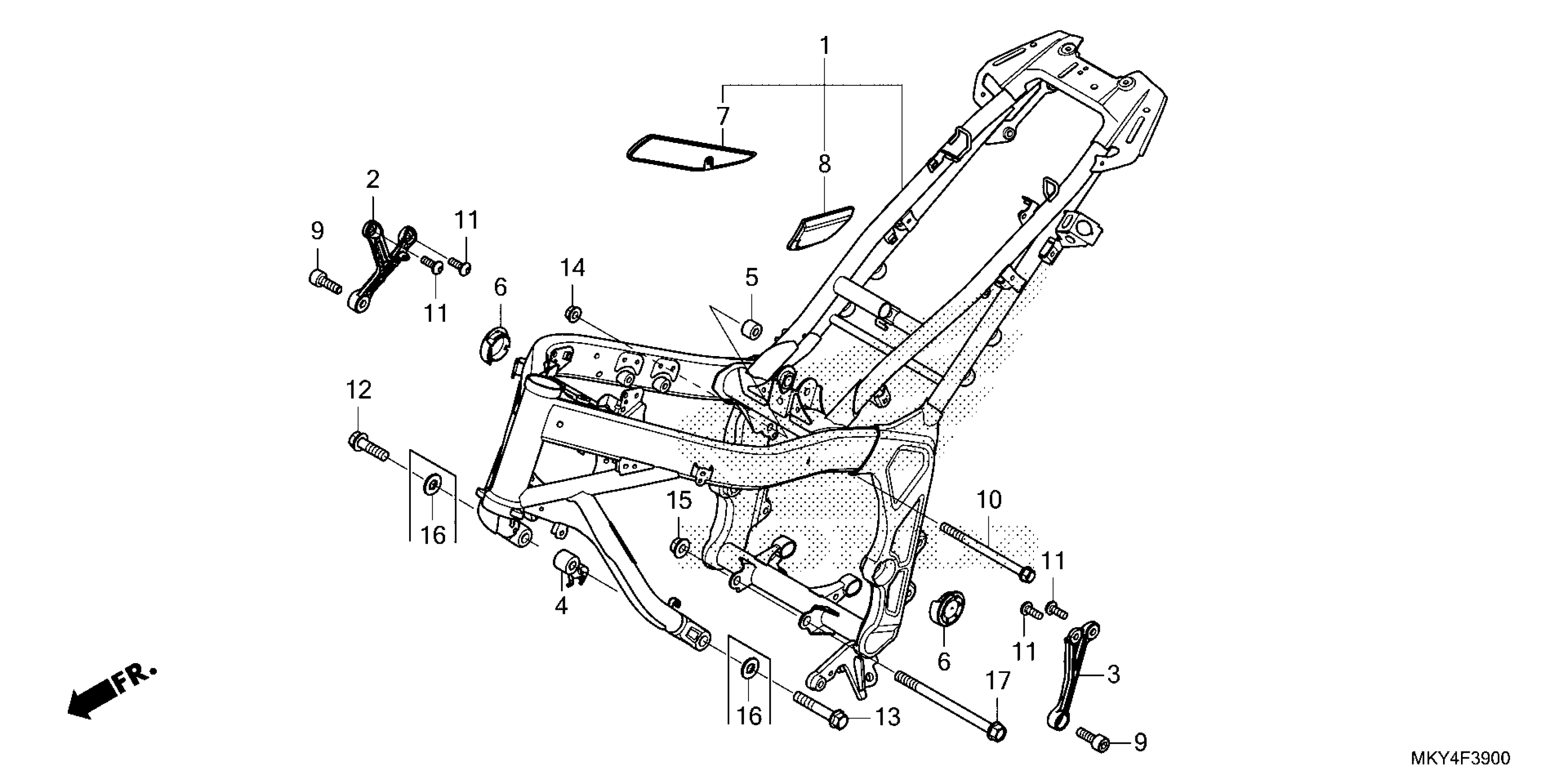

Honda CBR650RAAC (22) MOTORCYCLE, THA, VIN# MLHRH015-N5300001 FRAME Diagram

FRAME SET *NH303M* (MAT AXIS GRAY METALLIC)

50010-MKY-D10ZA

$802.80

BRACKET B, R. ENGINE HANGER *NH303M* (MAT AXIS GRAY METALLIC)

50211-MKN-D50ZA

$34.44

BRACKET B, L. ENGINE HANGER *NH303M* (MAT AXIS GRAY METALLIC)

50212-MKN-D50ZA

$32.89

COLLAR A, L. ENGINE HANGER

50351-MKN-D50

$10.03

COLLAR C, ENGINE HANGER

50352-MKN-D50

$3.15

CAP, SWINGARM PIVOT

52161-MKN-D50

$2.28

COVER, R. FRAME

64341-MKN-D50

$17.87

COVER, L. FRAME

64351-MKN-D50

$17.87

BOLT, SOCKET (10X30)

90105-MJE-D00

$1.87

BOLT, FLANGE (10X138)

90116-KW3-000

$13.75

BOLT, SOCKET (8X22)

90127-KYJ-900

$1.70

BOLT, FLANGE (12X40)

90167-GHB-710

$2.18

BOLT, FLANGE (12X65)

90167-GHB-760

$2.92

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT, FLANGE (12X160)

95801-12160-08

$5.28
