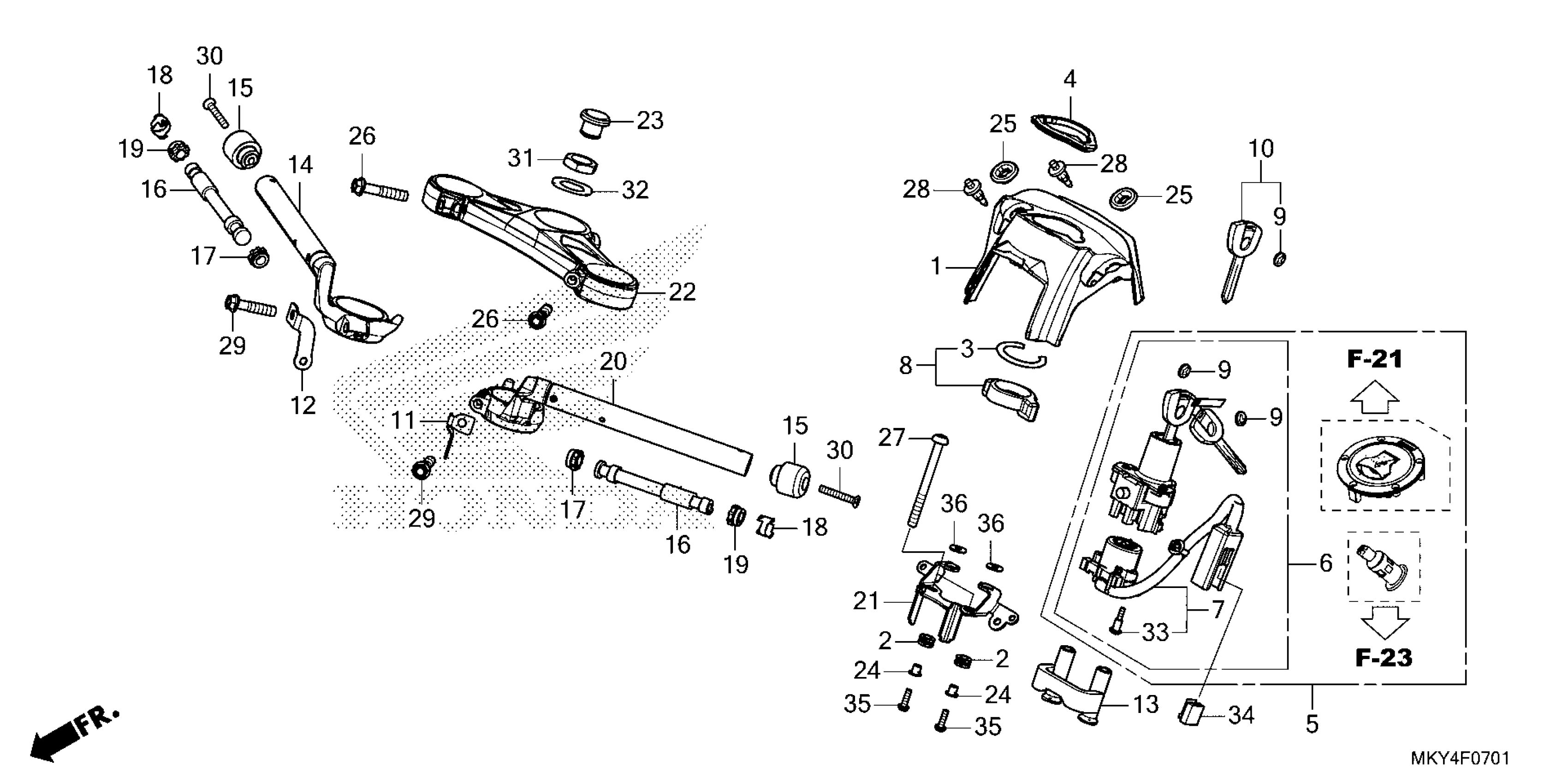

Honda CBR650RAAC (21) MOTORCYCLE, THA, VIN# MLHRH015-M5200001 TO MLHRH015-M5299999 HANDLEBAR@TOP BRIDGE (2) Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH

17575-MKN-D50

$8.49

2

RUBBER, MOUNTING

19639-KEE-630

$19.02

3

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

4

COVER, RECEIVER UNIT HOLE

30435-MKN-D50

$2.59

5

LOCK SET This part replaces 35010-MKY-L50.

35010-MKY-L51

$275.07

5

LOCK SET

35010-MKY-L51

$275.07

6

SWITCH ASSY., COMBINATION & LOCK

35100-MKY-L51

$158.26

7

BASE, CONTACT

35101-MKY-D51

$46.32

8

COVER, COMBINATION SWITCH

35106-MKJ-A00

$10.87

9

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

10

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

11

GUIDE, L. FR. WIRE

35910-MJE-D00

$2.04

12

CLAMP C, R.

45157-MKN-D10

$3.57

13

STAY, KEY MOUNTING

50197-MKN-D50

$35.82

14

HANDLEBAR, R.

53100-MKN-D10

$51.98

15

WEIGHT, HANDLEBAR

53104-MGZ-J00

$9.65

16

WEIGHT B, HANDLEBAR

53105-MGZ-J00

$8.12

17

RUBBER, HANDLE WEIGHT (B)

53107-KM9-000

$3.73

18

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.90

19

RUBBER B, HANDLE WEIGHT

53109-MV4-000

$2.47

20

HANDLEBAR, L.

53150-MKN-D10

$53.54

21

STAY, RECEIVER UNIT

53190-MKN-D50

$15.81

22

BRIDGE, FORK TOP

53230-MKN-D10

$103.81

23

CAP, STEERING STEM NUT

53232-MJ4-670

$12.33

24

COLLAR, RR. FENDER

80101-MFJ-D00

$3.85

25

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

26

BOLT, FLANGE (8X40)

90107-MGE-000

$2.46

27

BOLT, ONE-WAY (8MM)

90107-MJN-A00

$4.31

28

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

29

BOLT, FLANGE (8X35)

90123-MKF-D60

$3.34

30

SCREW, OVAL (6X50)

90126-MKN-D10

$1.24

31

NUT, STEERING STEM

90304-KGA-900

$2.91

32

WASHER, STEERING STEM

90503-KGA-900

$1.38

33

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

34

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

35

SCREW-WASHER (5X18)

93891-05018-08

Unavailable

36

WASHER, PLAIN (5MM)

94103-05800

$0.91
