Description

Price

1

MAINSHAFT (14T)

23211-MJE-D00

$74.77

2

PLATE, BEARING SETTING

23212-MJE-D00

$7.52

3

COUNTERSHAFT

23220-MJE-D00

$165.03

4

GEAR, COUNTERSHAFT FIRST (43T)

23421-MJE-DB0

$35.59

5

GEAR, MAINSHAFT SECOND (17T)

23431-MJE-DB0

$28.02

6

GEAR, COUNTERSHAFT SECOND (40T)

23441-MJE-DB0

$42.03

7

COLLAR (30X11.2)

23442-MS2-610

$23.74

8

GEAR, MAINSHAFT THIRD & FOURTH (18T/25T)

23451-MKN-D10

$81.02

9

GEAR, COUNTERSHAFT THIRD (34T)

23461-MKY-D10

$40.43

10

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

11

GEAR, COUNTERSHAFT FOURTH (39T)

23481-MJE-DB0

$29.57

12

GEAR, MAINSHAFT FIFTH (27T)

23491-MKN-D10

$46.23

13

COLLAR (25X28X12)

23492-MGZ-J00

$13.79

14

GEAR, COUNTERSHAFT FIFTH (37T)

23501-MKN-D10

$75.97

15

GEAR, MAINSHAFT SIXTH (28T)

23511-MKN-D10

$48.64

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$27.13

17

GEAR, COUNTERSHAFT SIXTH (34T)

23521-MJE-DB0

$57.77

18

SPROCKET, DRIVE (15T)

23801-MKN-D10

$98.84

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

22

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

23

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

24

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.52

25

WASHER, LOCK (25MM)

90455-KYJ-900

$32.30

26

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

27

WASHER (10.2MM)

90459-438-000

$5.83

28

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

29

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

30

SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)

90469-759-000

$6.77

31

WASHER, THRUST (20MM)

90554-MEL-000

$1.92

32

CIRCLIP (25MM)

90601-107-000

$3.74

33

CIRCLIP (30MM)

90604-MM5-000

$4.48

34

RING, SNAP (62MM)

90606-MM5-000

$8.66

35

BEARING, RADIAL BALL (6305) (C3)

91001-MKY-D11

$30.20

36

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$17.33

37

BEARING, NEEDLE (20MM) (NTN)

91022-MJE-DB1

$45.02

38

BEARING, NEEDLE (24X28X10)

91026-MJE-D01

$14.11

39

OIL SEAL (40X62X8.4)

91207-MAL-601

$13.51

40

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

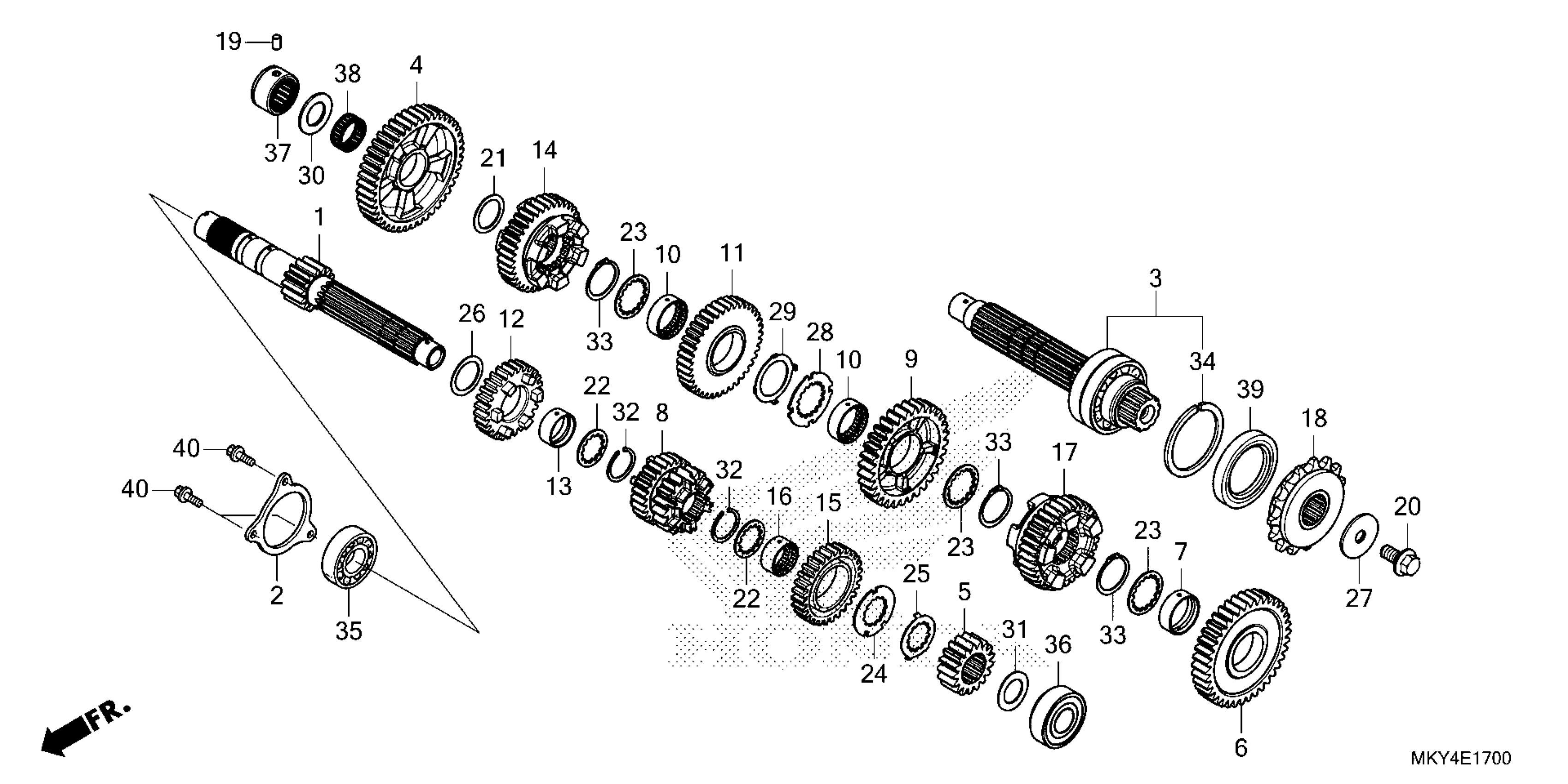

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 TRANSMISSION Diagram
