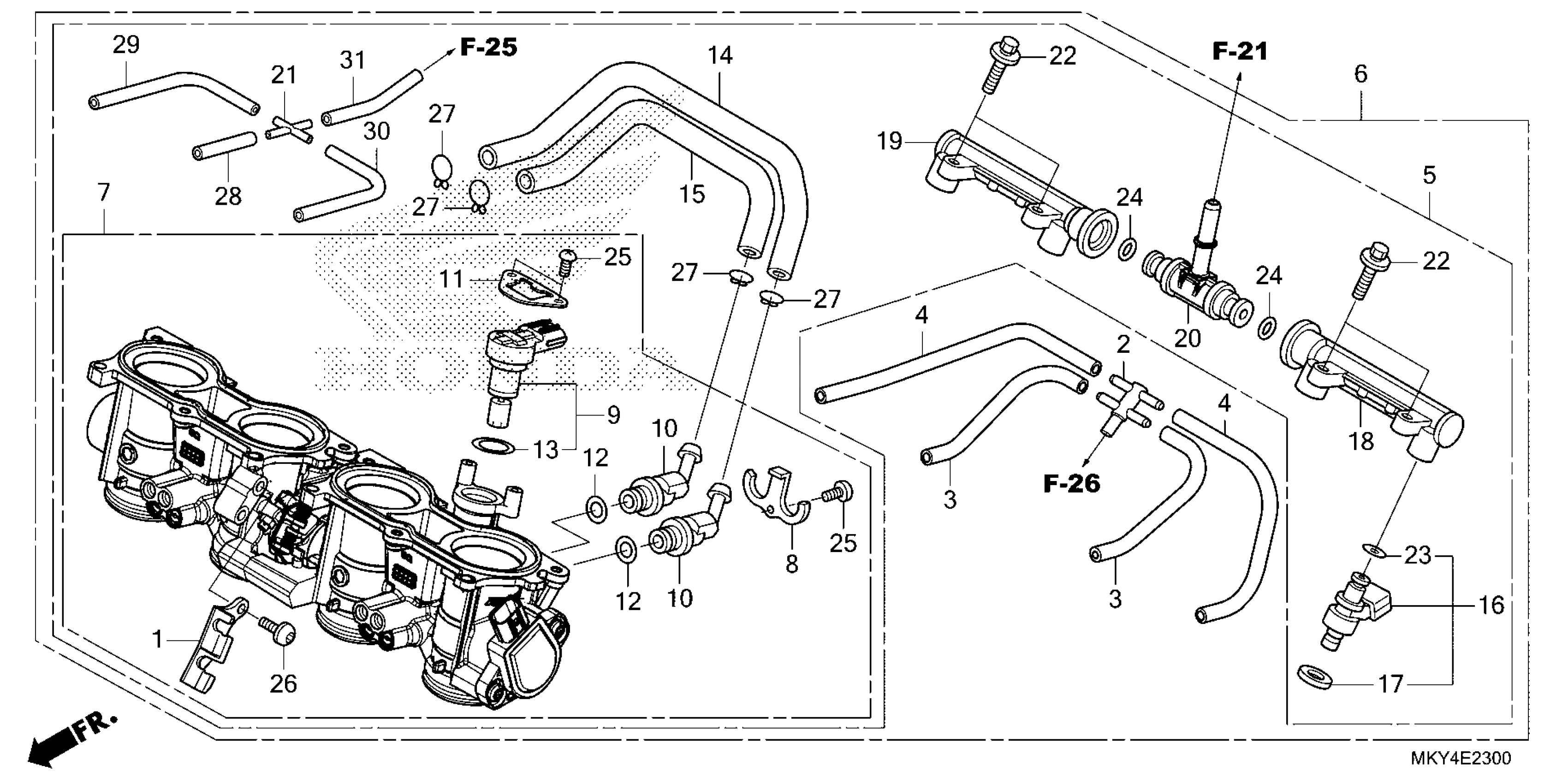

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 THROTTLE BODY Diagram

STAY, WIRE (FRAME NO.)

16169-MEE-013

$14.67

JOINT (T)

16180-ME5-761

$31.64

TUBE

16196-MBW-L11

$3.10

TUBE

16197-MFJ-L01

$6.51

BODY ASSY., THROTTLE (GQ8KC A)

16400-MKN-L21

$1,034.56

BODY ASSY., THROTTLE

16401-MKN-L21

$821.05

PLATE, JOINT

16431-MFJ-D01

$8.28

MOTOR ASSY.

16431-MJP-G51

$74.82

JOINT, IDLE AIR CONTROL VALVE

16432-MFJ-D01

$9.23

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

O-RING

16434-MFJ-D01

$3.03

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

TUBE (A)

16440-MJE-D01

$22.64

TUBE (B)

16441-MJE-D01

$24.59

INJECTOR ASSY., FUEL (BLUE) This part replaces 16450-MJE-D01.

16450-MJE-D02

$48.54

INJECTOR ASSY., FUEL (BLUE)

16450-MJE-D02

$48.54

INJECTOR ASSY., FUEL (PINK)

16450-MJE-D03

$35.33

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

PIPE, FUEL (A)

16610-MGC-D21

$61.54

PIPE, FUEL (B)

16620-MGC-D21

$61.54

T-JOINT, FUEL

16630-MFJ-D00

$22.13

JOINT, FOUR-WAY

17201-MCZ-003

$7.30

BOLT, SHOULDER

90021-MGZ-D02

$2.90

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

O-RING (7.47X3.6)

91301-PLC-000

$3.11

SCREW, PAN (4X8)

93500-04008-0H

$1.49

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

CLIP, TUBE (B12.5) (NOT AVAILABLE)

95002-02139

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
