Description

Price

1

COLLAR, TAILLIGHT MOUNTING

33706-KAN-960

$0.65

2

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

3

SEAT ASSY., MAIN (TYPE1)

77100-MKY-D51ZB

$111.57

4

CABLE, SEAT LOCK

77156-MKY-D51

$14.23

5

RUBBER B, SEAT SETTING

77205-286-000

$4.92

6

RUBBER, SEAT CUSHION

77206-MJE-DB0

$2.88

7

COVER, SEAT LOCK

77210-MKN-D50

$5.86

8

COWL B, R. RR.

77216-MKY-D50

$4.86

9

STAY, SEAT LOCK CABLE

77218-MKY-D50

$3.10

10

LOCK, SEAT

77220-MJE-D00

$22.64

11

COWL B, L. RR.

77226-MKY-D50

$4.51

12

COWL SET A, R. RR. R380 (WL) (GRAND PRIX RED)

77230-MKY-DM0ZA

$43.10

13

SPRING, SEAT LOCK

77234-GN2-000

$3.66

14

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.42

15

KEY, SEAT LOCK

77239-MJE-D04

$130.43

16

COWL SET A, L. RR. R380 (WL) (GRAND PRIX RED)

77240-MKY-DM0ZA

$43.10

17

SEAT ASSY., PILLION (TYPE1)

77300-MKY-D51ZB

$234.48

18

BAND, TOOL

80123-GN5-900

$2.43

19

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.22

20

CLIP, BODY COVER

90683-GR1-003

$2.71

21

PLUG, CONE TYPE

90899-422-610

$1.81

22

SCREW, TAPPING (4X12)

93903-24320

$0.83

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

24

BOLT, SOCKET (6X25)

96600-06025-08

$1.26

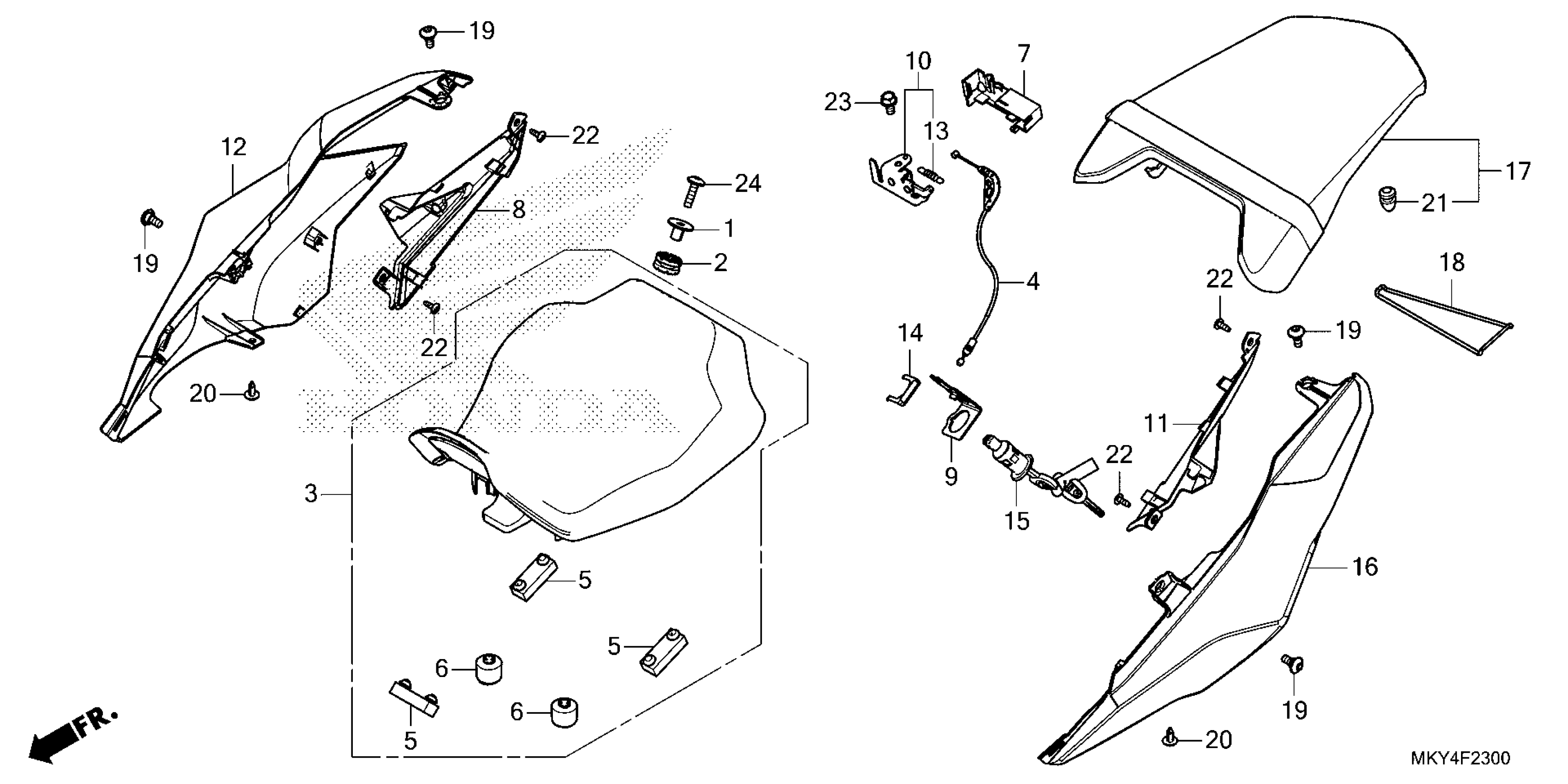

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 SEAT@REAR COWL Diagram
