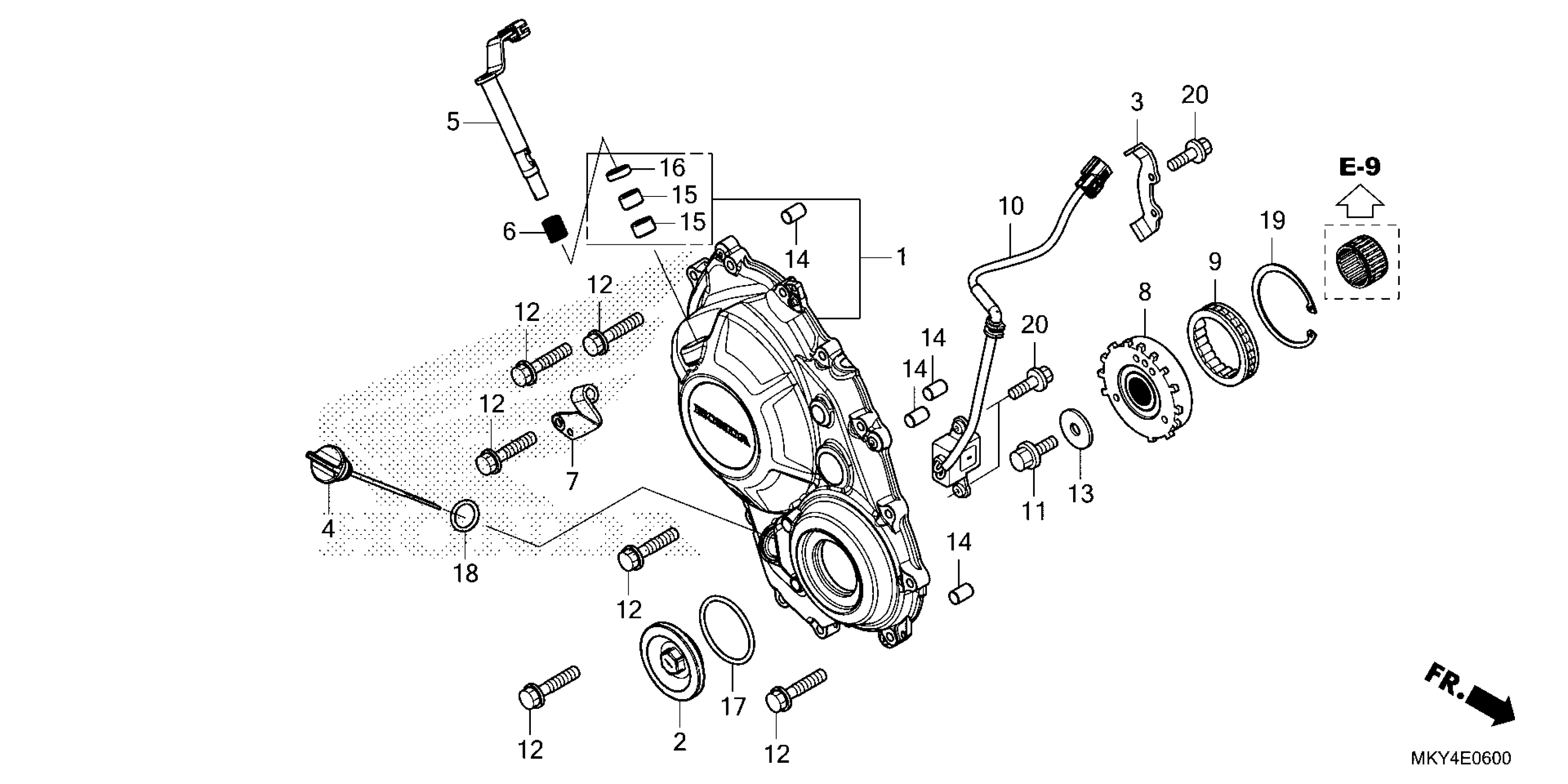

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 RIGHT CRANKCASE COVER Diagram

COVER COMP

11330-MKY-T90

$66.32

CAP (45MM)

11332-MGZ-J00

$19.86

CLAMP, PULSE GENERATOR CORD

11334-MJE-D00

$1.59

DIPSTICK, OIL

15650-MKN-D10

$6.51

LEVER, CLUTCH

22810-MKN-D10

$28.57

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.00

RECEIVER, CLUTCH CABLE

22821-MKN-D10

$4.84

CLUTCH OUTER, STARTING

28115-MJE-D00

$123.62

CLUTCH, ONE-WAY

28125-MJE-D01

$76.28

GENERATOR ASSY., PULSE

30300-MJE-D01

$67.54

BOLT, SPECIAL (10X25)

90013-430-000

$6.01

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

Unavailable

WASHER (10.5X31.8)

90405-MJE-D00

$3.90

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.00

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$3.97

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.70

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

CIRCLIP (INNER) (63MM)

94520-63150

$3.35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91
