Description

Price

1

CABLE A, THROTTLE

17910-MKN-D11

$11.47

2

CABLE B, THROTTLE

17920-MKN-D11

$10.68

3

CABLE, CLUTCH

22870-MKN-D11

$12.56

4

GUIDE, CABLE

35106-MKN-D50

$11.43

5

SWITCH ASSY., ENGINE STOP

35130-MKN-D11

$106.00

6

SWITCH ASSY., TURN SIGNAL

35200-MKN-C31

$179.78

7

STAY, L. CLIP

35205-MKN-D10

$9.21

8

SWITCH SET, CLUTCH

35335-MKJ-D00

$14.31

9

HOLDER, MASTER CYLINDER

45517-KCW-870

$9.93

10

GRIP, THROTTLE

53140-MGS-D30

$26.01

11

GRIP, L. HANDLE

53150-MGS-D30

$11.13

12

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$15.49

13

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$16.50

14

HOLDER, CLUTCH LEVER

53172-MJE-D00

$42.82

15

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.29

16

LEVER, L. HANDLE (COO) This part replaces 53178-MJE-D00.

53178-MJE-305

$17.60

16

LEVER, L. HANDLE (COO)

53178-MJE-305

$17.60

17

BOLT, WIRE ADJUSTING

53192-MJE-D00

$4.04

18

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

20

SCREW, FLAT (3X16)

90124-MCJ-752

$0.57

21

NUT, U (6MM)

90301-782-000

$1.50

22

NUT, FIXING

90321-KT7-760

$9.59

23

SCREW-WASHER (5X16)

90508-MGS-D30

$1.72

24

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

25

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

26

SCREW, PAN (5X22)

93500-05022-0G

$0.85

27

NUT, HEX. (8MM)

94002-08070-0S

$1.21

28

BOLT, FLANGE (6X10)

95701-06010-08

$1.49

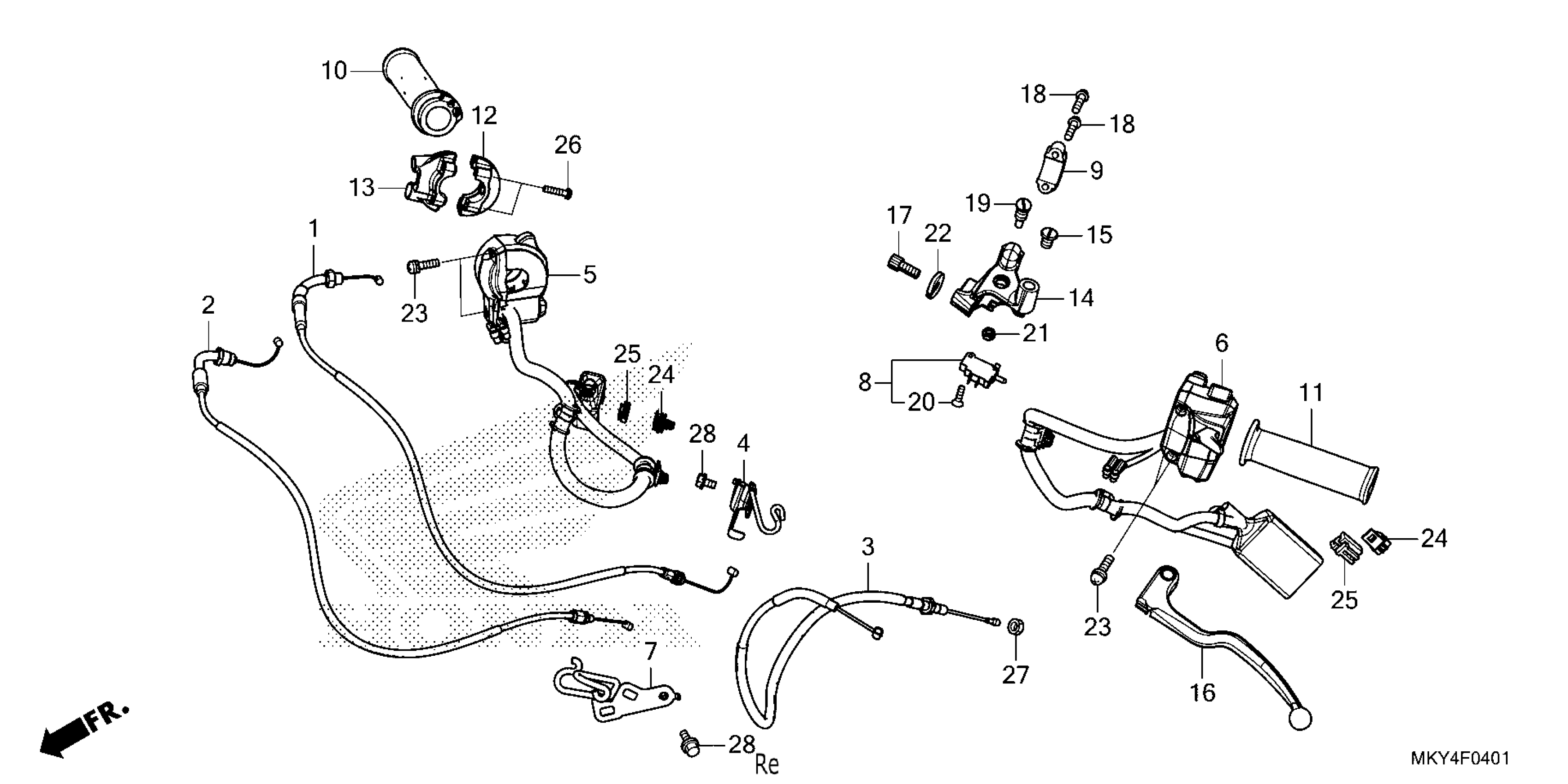

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 HANDLE LEVER@SWITCH@CABLE (2) Diagram
