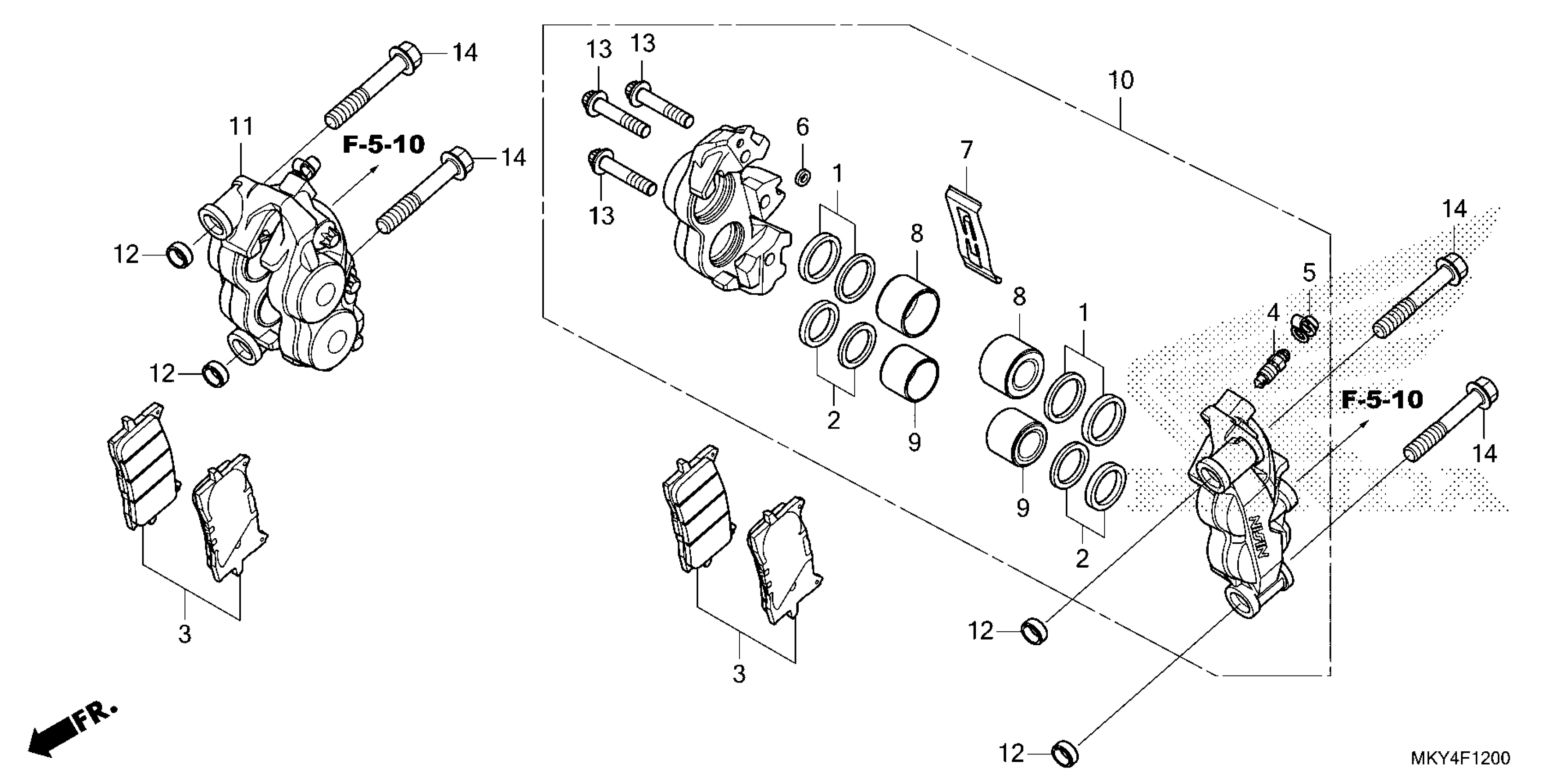

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-MCZ-006

$5.56

2

SEAL SET, PISTON

06452-MCZ-006

$5.56

3

PAD SET, FR.

06455-MKN-D51

$61.74

4

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

5

CAP, BLEEDER

43353-461-771

Unavailable

6

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.56

7

SPRING, PAD

45106-MJP-G51

$8.07

8

PISTON A

45107-MJP-G52

$44.53

9

PISTON B

45117-MJP-G52

$41.81

10

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MJP-G52

$414.43

11

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MJP-G52

$414.43

12

SPACER, FR. FORK

51497-MKN-D50

$1.03

13

BOLT, TORX (8X38)

90104-MJP-G51

$4.69

14

BOLT, FLANGE (10X57)

90123-MJP-G50

$4.65
