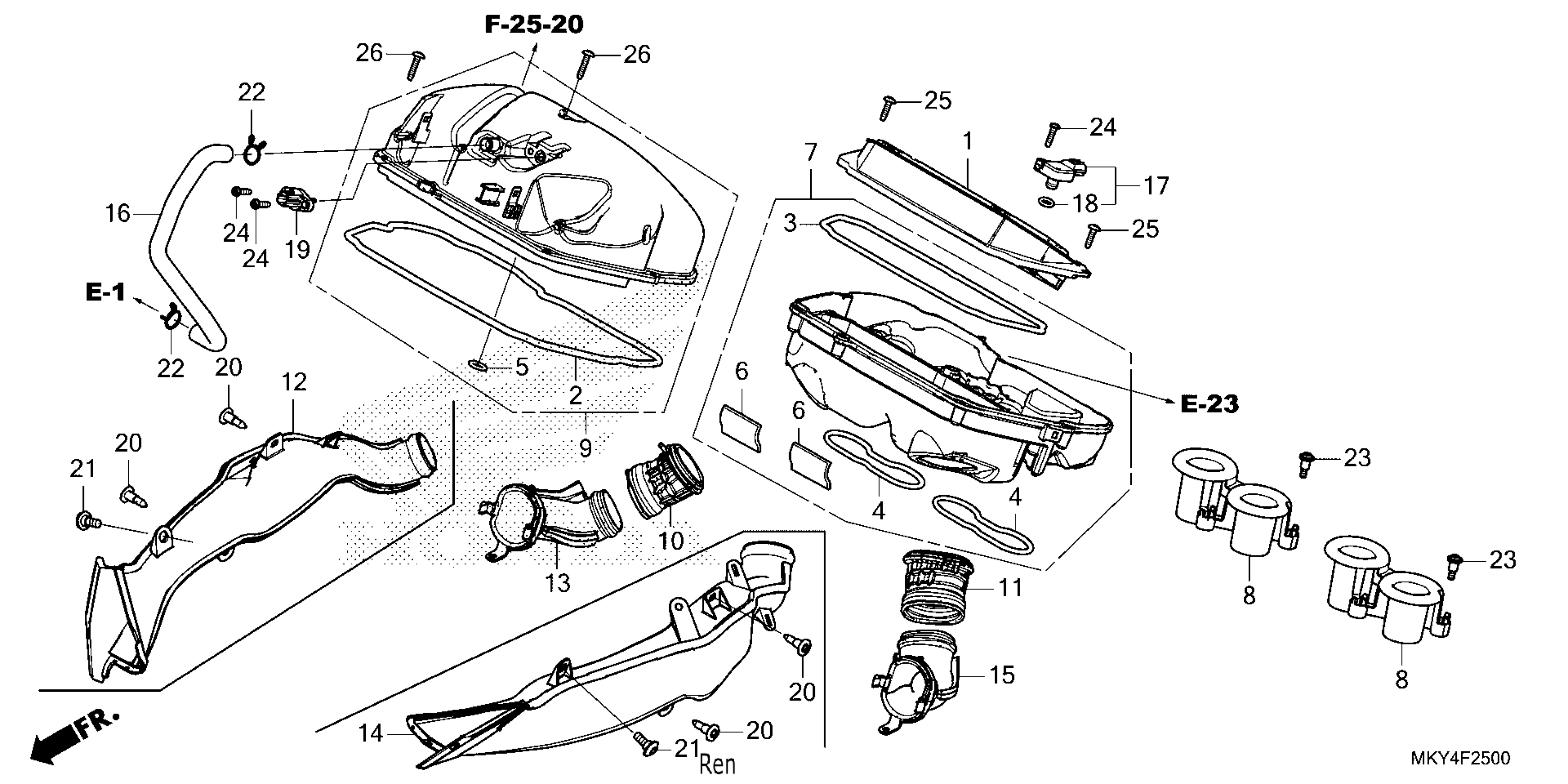

Honda CBR650RA2AC (23) MOTORCYCLE, THA, VIN# MLHRH015-P5400001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MKN-D50

$17.02

2

SEAL, AIR CLEANER

17213-MKN-D50

$3.39

3

SEAL, AIR CLEANER ELEMENT

17214-MKN-D50

$2.32

4

SEAL, THROTTLE BODY

17215-MJE-D00

$1.28

5

SEAL, CENTER BOSS

17216-MJE-D00

$1.00

6

RUBBER, CUSHION

17217-MJE-D00

$7.13

7

CASE SUB-ASSY., AIR CLEANER

17224-MKN-D51

$20.16

8

FUNNEL, AIR

17225-MJE-DB0

$15.01

9

COVER SUB-ASSY., AIR CLEANER

17235-MKN-D50

$16.58

10

JOINT, R. AIR CLEANER DUCT

17241-MKN-D50

$12.39

11

JOINT, L. AIR CLEANER DUCT

17242-MKN-D50

$12.39

12

DUCT, R. AIR CLEANER

17243-MKN-D10

$76.68

14

DUCT, L. AIR CLEANER

17244-MKN-D10

$76.68

16

TUBE, BREATHER

17265-MKN-D52

$6.62

17

SENSOR ASSY., MAP

37830-RGA-006

$203.88

18

O-RING (Honda Code 8954919)

37875-RGA-006

$2.38

19

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.03

20

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

21

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

22

CLIP, AIR HOSE (16MM)

90646-657-000

$6.82

23

SCREW, PAN (5MM)

91508-MM5-000

$3.80

24

SCREW, TAPPING (5X20)

93901-25420

$0.75

25

SCREW, TAPPING (5X20)

93903-25480

$0.61

26

SCREW, TAPPING (5X25)

93903-25510

$0.88
