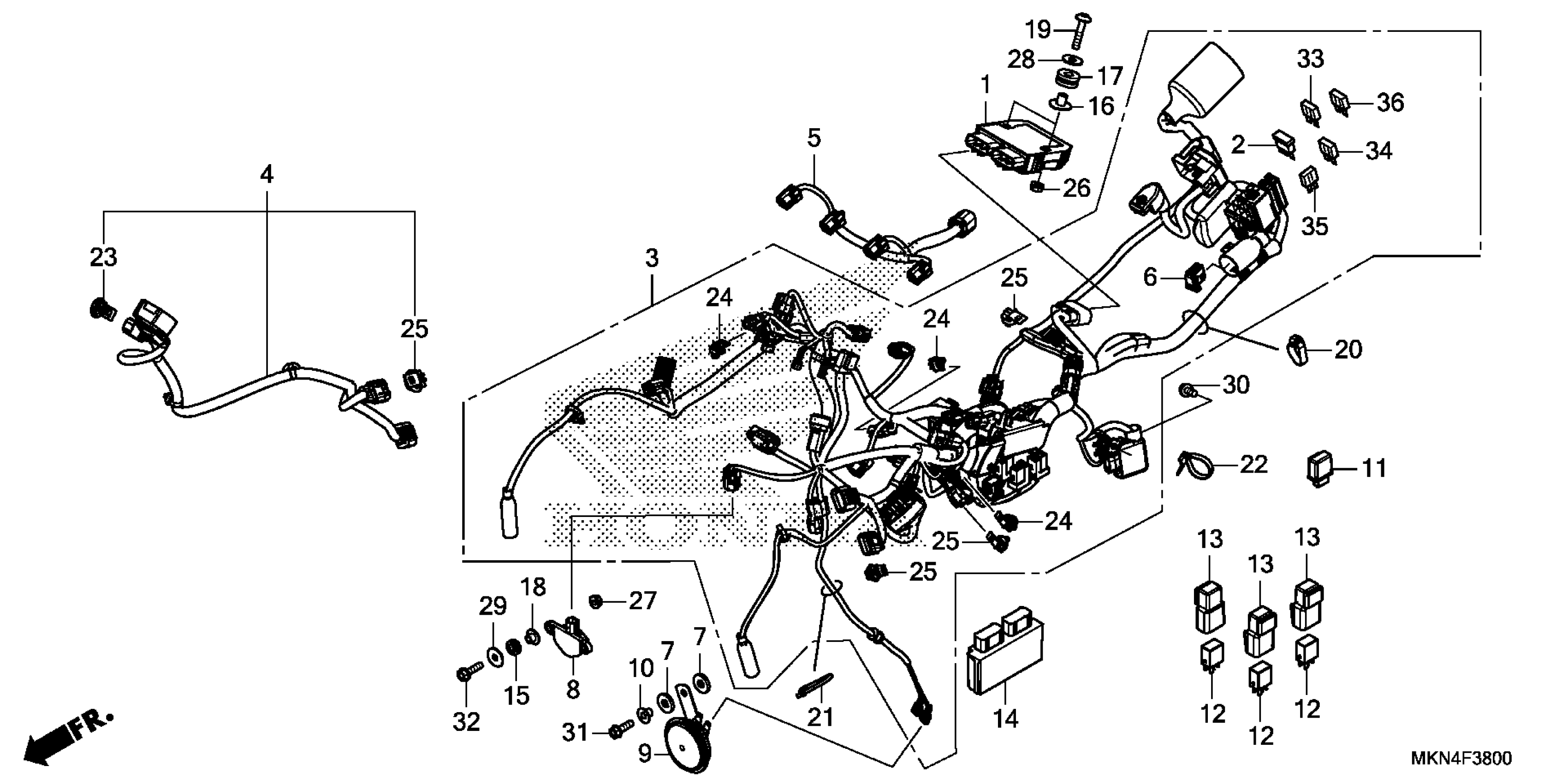

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$169.36

2

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

3

WIRE HARNESS

32100-MKN-L30

$985.41

4

SUB-HARNESS, FR.

32103-MKN-D10

$44.07

5

SUB-HARNESS, INJECTOR

32104-MJE-D00

$22.13

6

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.12

7

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.29

8

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$136.62

9

HORN (HIGH)

38110-KPP-T01

$31.88

10

COLLAR, HORN SETTING

38117-KFE-701

$0.70

11

RELAY, TURN SIGNAL

38301-KZZ-J01

$51.80

12

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.66

13

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.59

14

PGM-FI UNIT

38770-MKN-L32

$338.62

15

RUBBER, SIDE COVER

64535-MFJ-D00

$1.77

16

COLLAR, PILLION SEAT MOUNTING

77326-MJS-J70

$3.68

17

RUBBER, PILLION SEAT MOUNTING

77327-MJS-J70

$4.07

18

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.09

19

SCREW, PAN (6X32)

90130-MJE-D40

$0.99

20

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

21

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

22

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

23

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

24

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

25

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

26

NUT, FLANGE (6MM)

94050-06070

$1.32

27

NUT, FLANGE (6MM)

94050-06080

$0.59

28

WASHER, PLAIN (6MM)

94103-06700

$0.65

29

WASHER, PLAIN (6MM)

94103-06800

$0.71

30

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

31

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

32

BOLT, FLANGE (6X22)

95701-06022-08

$1.64

33

FUSE F (7.5A) (MINI)

98200-40750

$1.10

34

FUSE, MINI (10A)

98200-41000

$1.20

35

FUSE, MINI (20A)

98200-42000

$1.10

36

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59
