Description

Price

1

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.62

2

COWL SET, FR. (UPPER) (TYPE1) (WL)

64110-MKN-D30ZA

$60.93

3

PANEL, METER

64171-MKN-D10

$31.61

4

VISOR, METER

64172-MKN-D10

$8.62

5

WASHER, SCREEN SETTING

64205-166-610

$2.01

6

STAY, FR. COWL (UPPER)

64501-MKN-D10

$61.26

7

SPONGE, SCREEN

67105-MKN-D10

$2.02

8

WINDSCREEN SET (TYPE1) (WL)

67110-MKN-D10ZA

$66.38

9

MIRROR ASSY., R. BACK (COO) This part replaces 88110-MJE-D01.

88110-MJE-305

$50.06

9

MIRROR ASSY., R. BACK (COO)

88110-MJE-305

$50.06

10

MIRROR ASSY., L. BACK (COO) This part replaces 88120-MJE-D01.

88120-MJE-305

$49.98

10

MIRROR ASSY., L. BACK (COO)

88120-MJE-305

$49.98

11

BOLT, SOCKET (6X20)

90001-MCK-A50

$1.99

12

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

13

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.32

14

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

15

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.22

16

BOLT, FLANGE (8X32)

90164-GHB-690

$1.12

17

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.17

18

WASHER, THRUST (5MM)

90504-964-000

$1.72

19

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

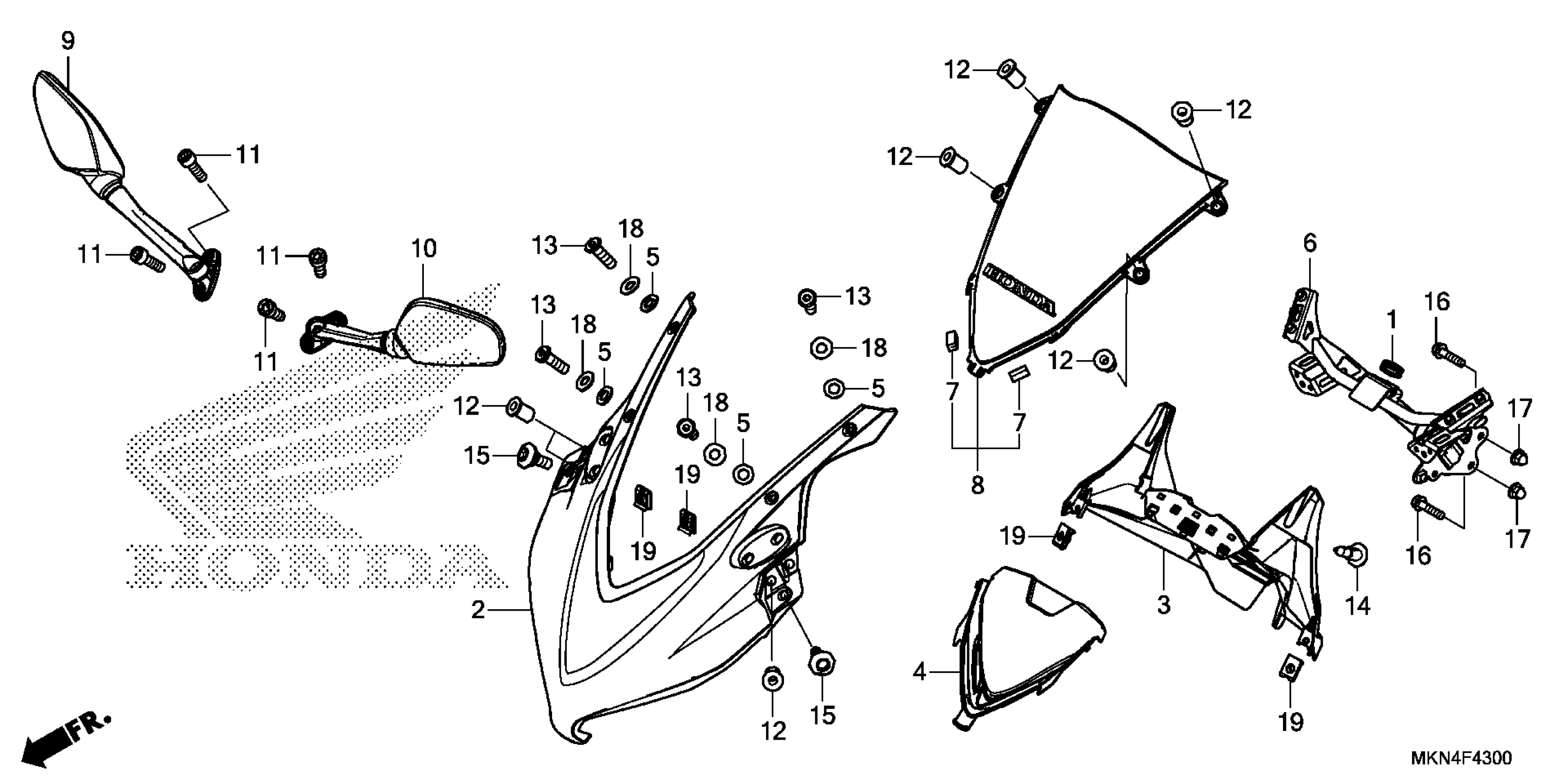

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 UPPER COWL Diagram
