Description

Price

1

CASE, DRIVE CHAIN

40511-MJE-D00

$24.80

2

CHAIN, DRIVE (DID525V11-120ZB) (STANDARD LINK 118L)

40540-MJE-D01

$168.87

2

CHAIN, DRIVE (RK525KRW-120LJFZ) (STANDARD LINK 118L)

40540-MJE-D02

$224.54

3

MASTER LINK (DAIDO)

40545-MJE-D01

$17.33

3

MASTER LINK (RK)

40545-MJE-D02

$28.74

4

COLLAR, RR. AXLE

42305-MJE-D00

$15.30

5

BOLT, SWINGARM PIVOT

52101-MKN-D50

$70.74

6

COLLAR, CENTER PIVOT DISTANCE

52141-MJE-D00

$19.49

7

COLLAR, R. PIVOT DISTANCE

52142-MJE-D00

$13.89

8

COLLAR, L. PIVOT DISTANCE

52143-MJE-D00

$13.97

9

CAP, RR. SWINGARM

52161-KZZ-900

$2.74

10

SLIDER, CHAIN

52170-MJE-D00

$18.96

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

12

SWINGARM SUB-ASSY., RR.

52200-MKN-D50

$750.52

13

SCREW, PAN (5X12)

90104-KPP-900

$1.49

14

BOLT, HEX. (8X50)

90106-MCF-D00

$2.43

15

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.49

16

NUT, U (18MM)

90305-MJE-D01

$10.90

17

NUT, HEX. (10MM)

90309-357-000

$3.40

18

WASHER (18X32X2)

90401-KZ4-890

$4.48

19

CIRCLIP (INNER) (37)

90651-MEW-920

$3.13

20

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$10.02

21

BEARING, NEEDLE (30X37X20)

91055-MGS-D31

$19.21

22

BEARING, NEEDLE

91071-MR7-003

$25.68

23

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

24

DUST SEAL (30X37X4)

91253-KZ3-861

$8.68

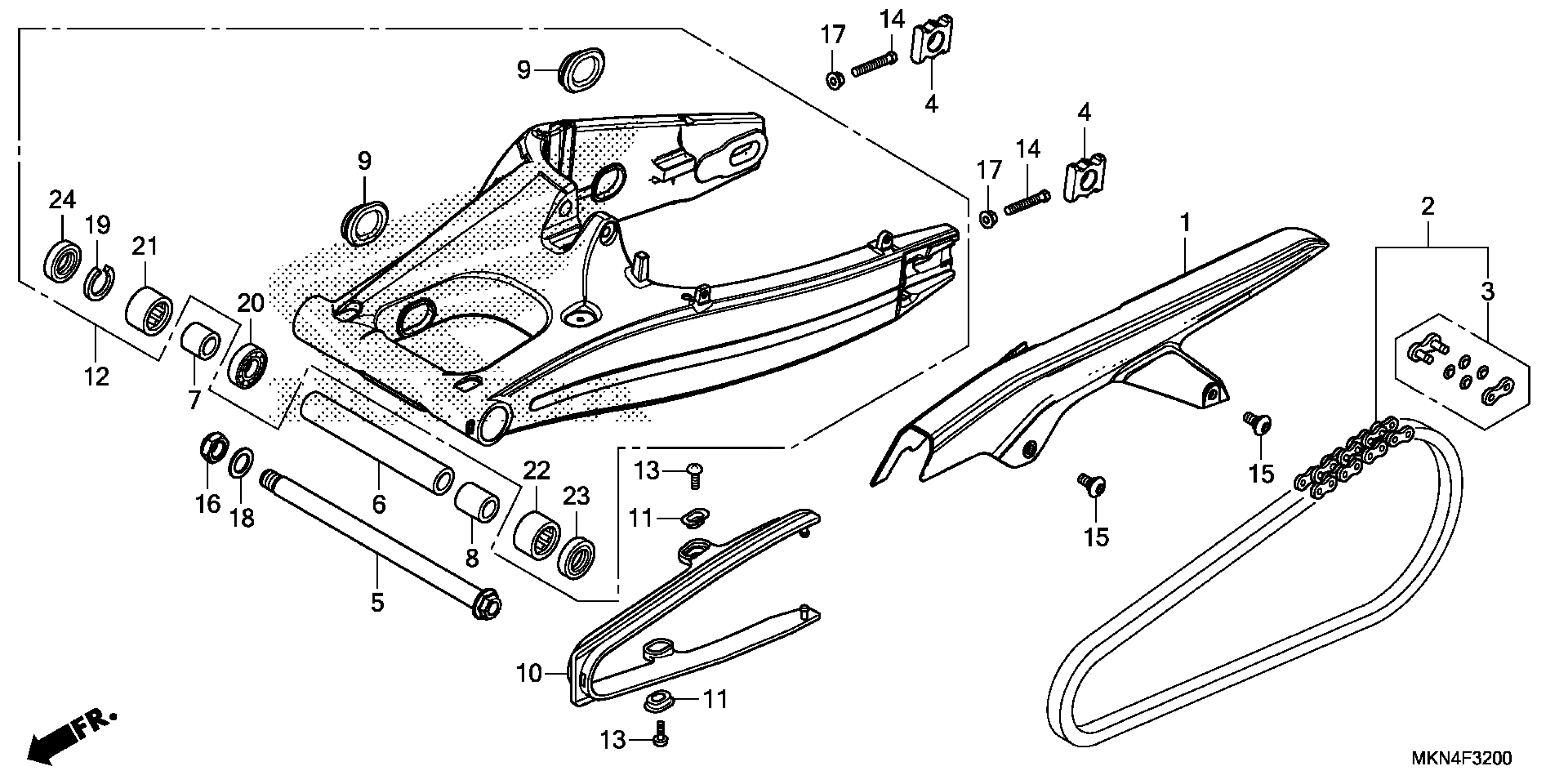

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 SWINGARM Diagram
