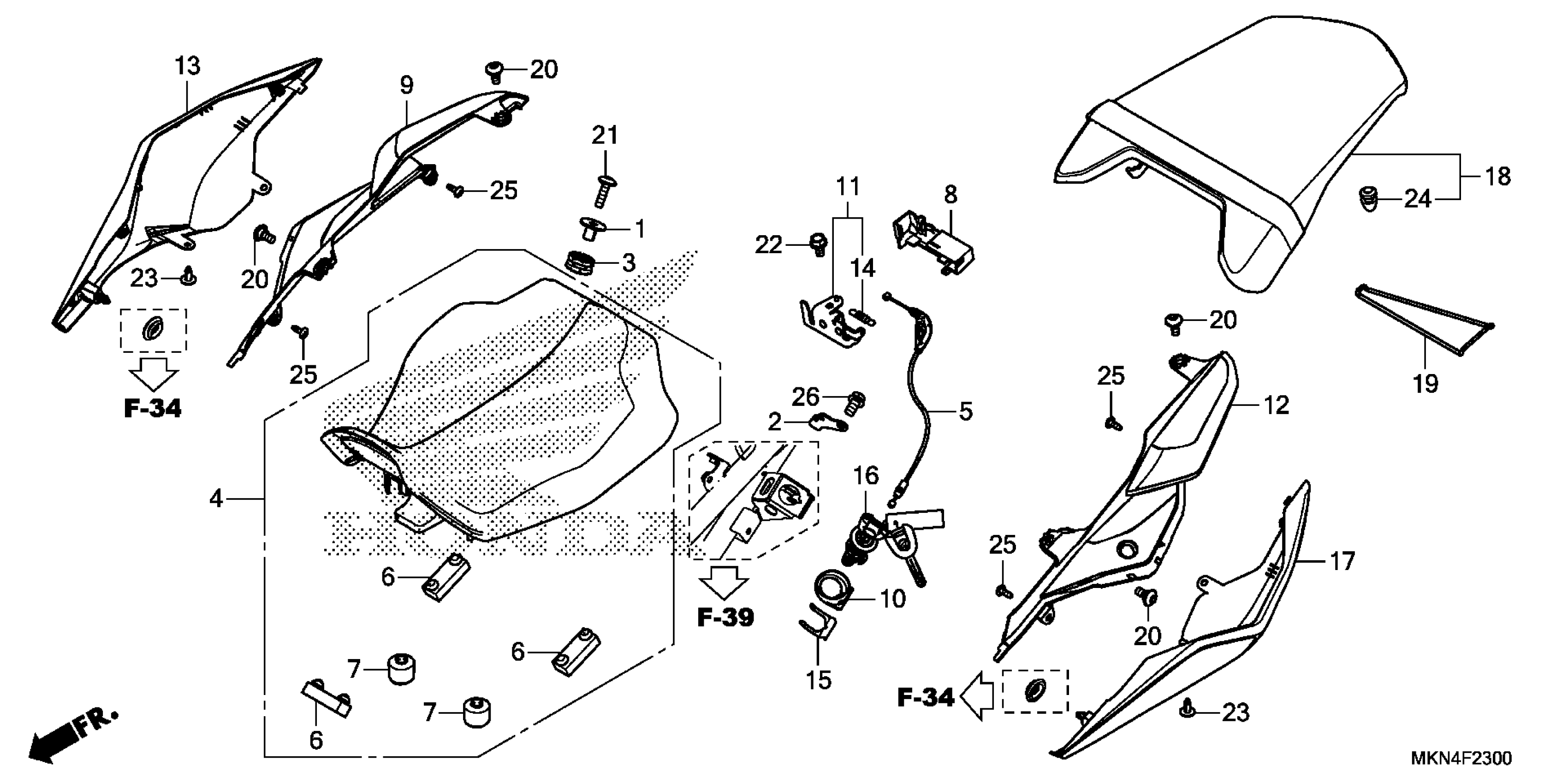

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 SEAT@REAR COWL Diagram

COLLAR, TAILLIGHT MOUNTING

33706-KAN-960

$1.49

PLATE, KEY SETTING

50201-MKN-D50

$1.49

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

SEAT ASSY., MAIN (TYPE1)

77100-MKN-D51ZB

$171.44

CABLE, SEAT LOCK

77156-MKN-D51

$14.08

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER, SEAT CUSHION

77206-MJE-DB0

$3.26

COVER, SEAT LOCK

77210-MKN-D50

$6.62

COWL B, R. RR.

77216-MKN-D50

$16.55

COVER, KEY SETTING

77217-MKN-D50

$2.21

LOCK, SEAT

77220-MJE-D00

$25.97

COWL B, L. RR.

77226-MKN-D50

$17.56

COWL SET A, R. RR. (TYPE1) (WL)

77230-MKN-D30ZA

$46.75

SPRING, SEAT LOCK

77234-GN2-000

$3.92

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.74

KEY, SEAT LOCK This part replaces 77239-MJE-D03.

77239-MJE-D04

$143.26

KEY, SEAT LOCK

77239-MJE-D04

$143.26

COWL SET A, L. RR. (TYPE1) (WL)

77240-MKN-D30ZA

$49.59

SEAT ASSY., PILLION (TYPE1)

77300-MKN-D51ZB

$265.23

BAND, TOOL

80123-GN5-900

$2.67

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.49

SCREW, PAN (6X22)

90128-MKN-D50

$1.49

BOLT, FLANGE (6X12)

90129-MKN-D50

$1.49

CLIP, BODY COVER

90683-GR1-003

$2.92

PLUG, CONE TYPE

90899-422-610

$1.89

SCREW, TAPPING (4X12)

93903-24380

$1.49

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
