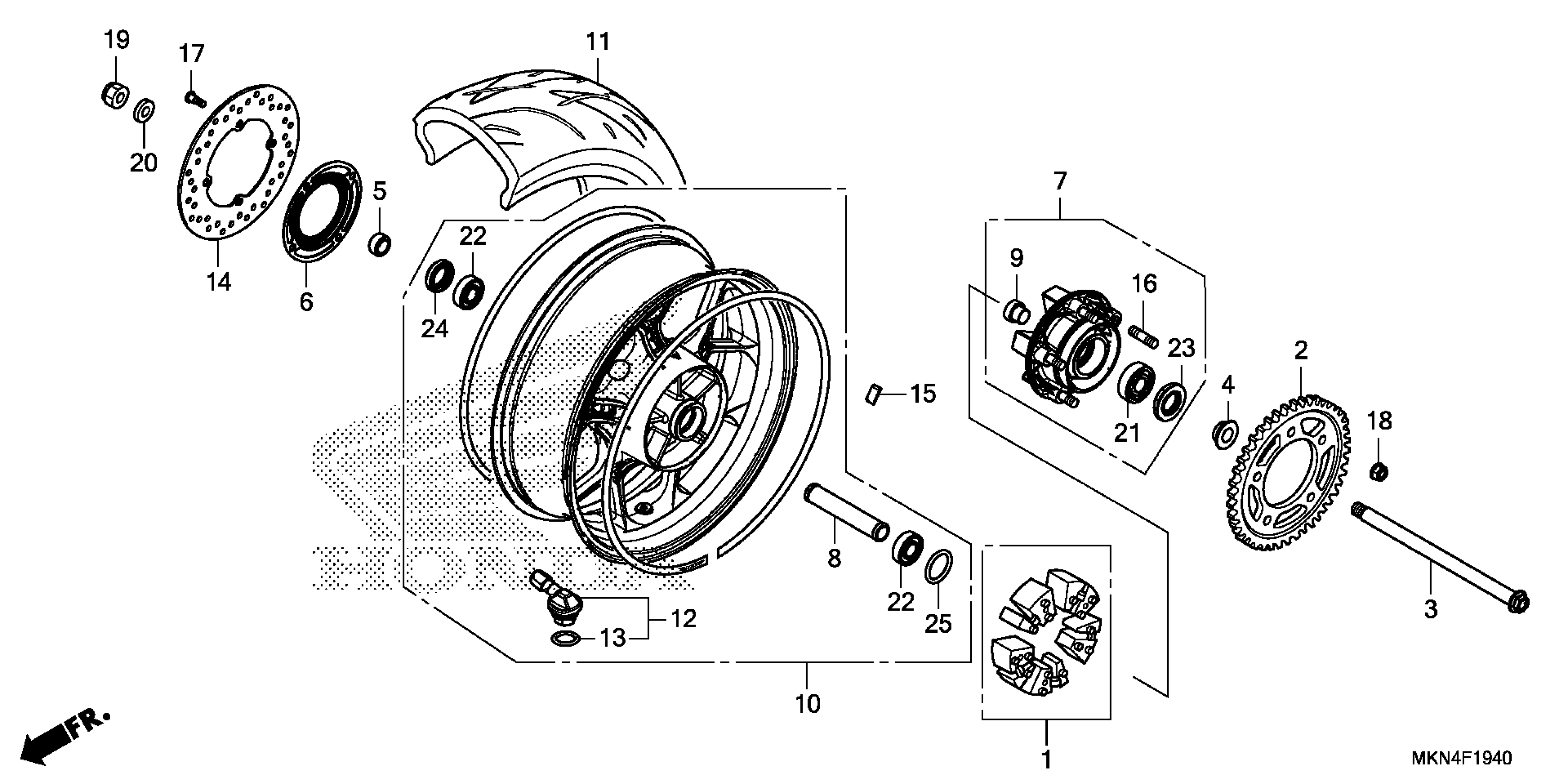

Description

Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$52.73

2

SPROCKET, FINAL DRIVEN (42T) This part replaces 41201-MKN-D50.

41201-MKN-D51

$54.94

3

AXLE, RR. WHEEL

42301-MKN-D50

$29.68

4

COLLAR, L. RR. WHEEL SIDE

42311-MER-D00

$17.25

5

COLLAR, RR. BRAKE SIDE

42312-MER-D00

$10.07

6

RING, RR. PULSER

42515-MKN-D50

$44.21

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MJE-D00

$122.49

8

COLLAR, RR. AXLE DISTANCE

42620-MKN-D50

$18.91

9

COLLAR B, RR. WHEEL DISTANCE

42625-MER-D00

$17.21

10

WHEEL SUB-ASSY., RR. (TYPE1) (WL)

42650-MKN-D30ZA

$413.85

11

TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)

42711-MKN-D52

$134.12

12

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

13

O-RING

42758-MKA-D81

$1.41

14

DISK, RR. BRAKE

43251-K87-A00

$80.96

15

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

15

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

15

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

16

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

17

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.37

19

NUT, U (18MM)

90306-MJE-D01

$8.38

20

WASHER (18X32X2)

90401-KZ4-890

$4.28

21

BEARING, RADIAL BALL (63/22)

91051-MAS-003

$36.76

22

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

Unavailable

23

DUST SEAL (30X56X7.5)

91252-MAS-003

$11.13

24

DUST SEAL (30X47X7.5)

91253-MAE-003

$14.64

25

O-RING (55X2)

91351-MGS-D30
