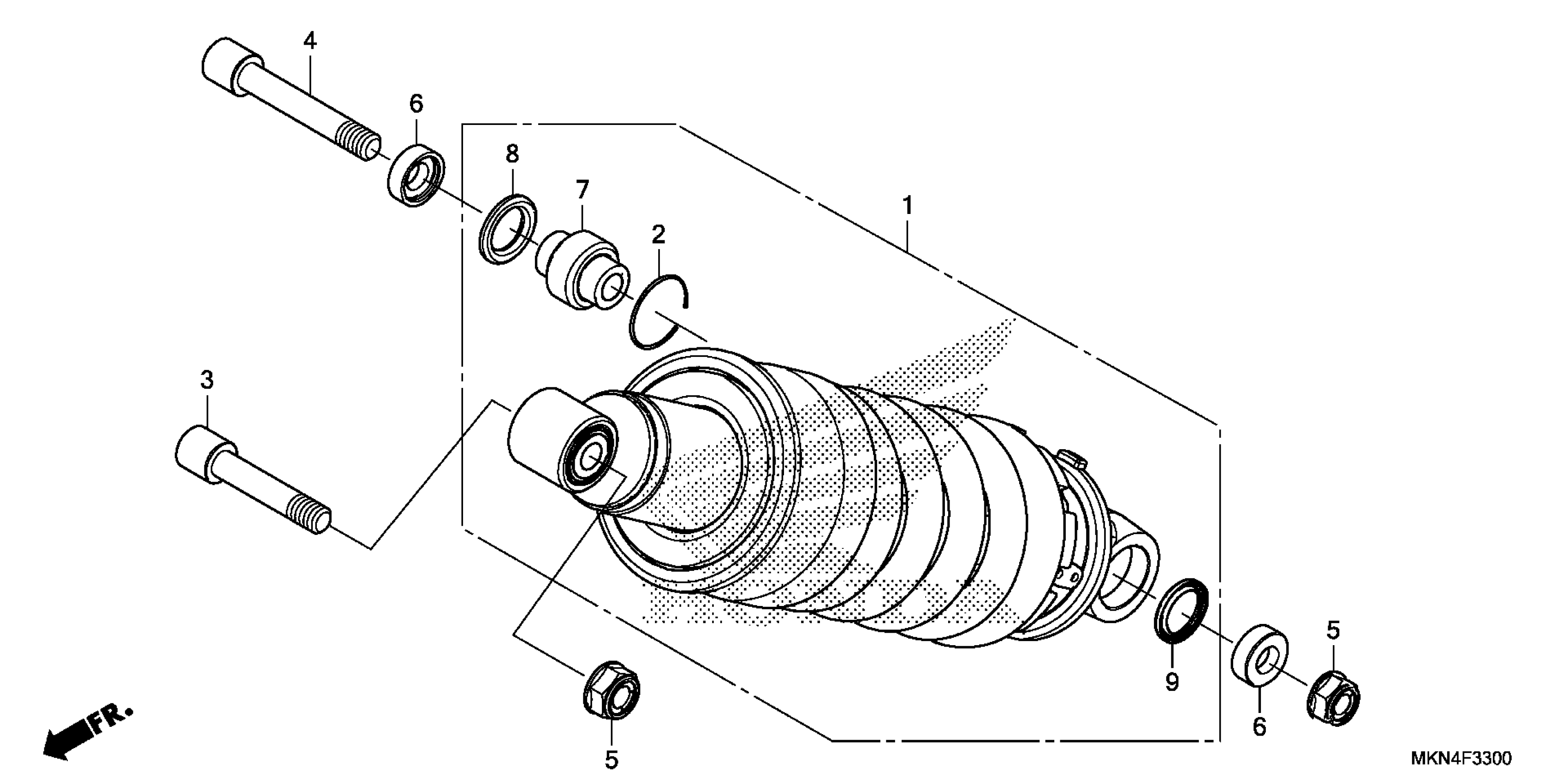

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (SHOWA)

52400-MKN-D51

Unavailable

RING, STOPPER (SHOWA)

52487-KA4-831

$3.66

BOLT, SOCKET (10X51)

90107-MJE-D00

$3.20

BOLT, SOCKET (10X70)

90108-MJE-D00

$4.03

NUT, U FLANGE (10MM)

90304-MJE-D01

$1.96

COLLAR, RR. CUSHION

90501-MKN-D50

$5.90

BEARING, SPHERICAL (10MM)

91071-MEC-003

$32.88

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.54

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.16
