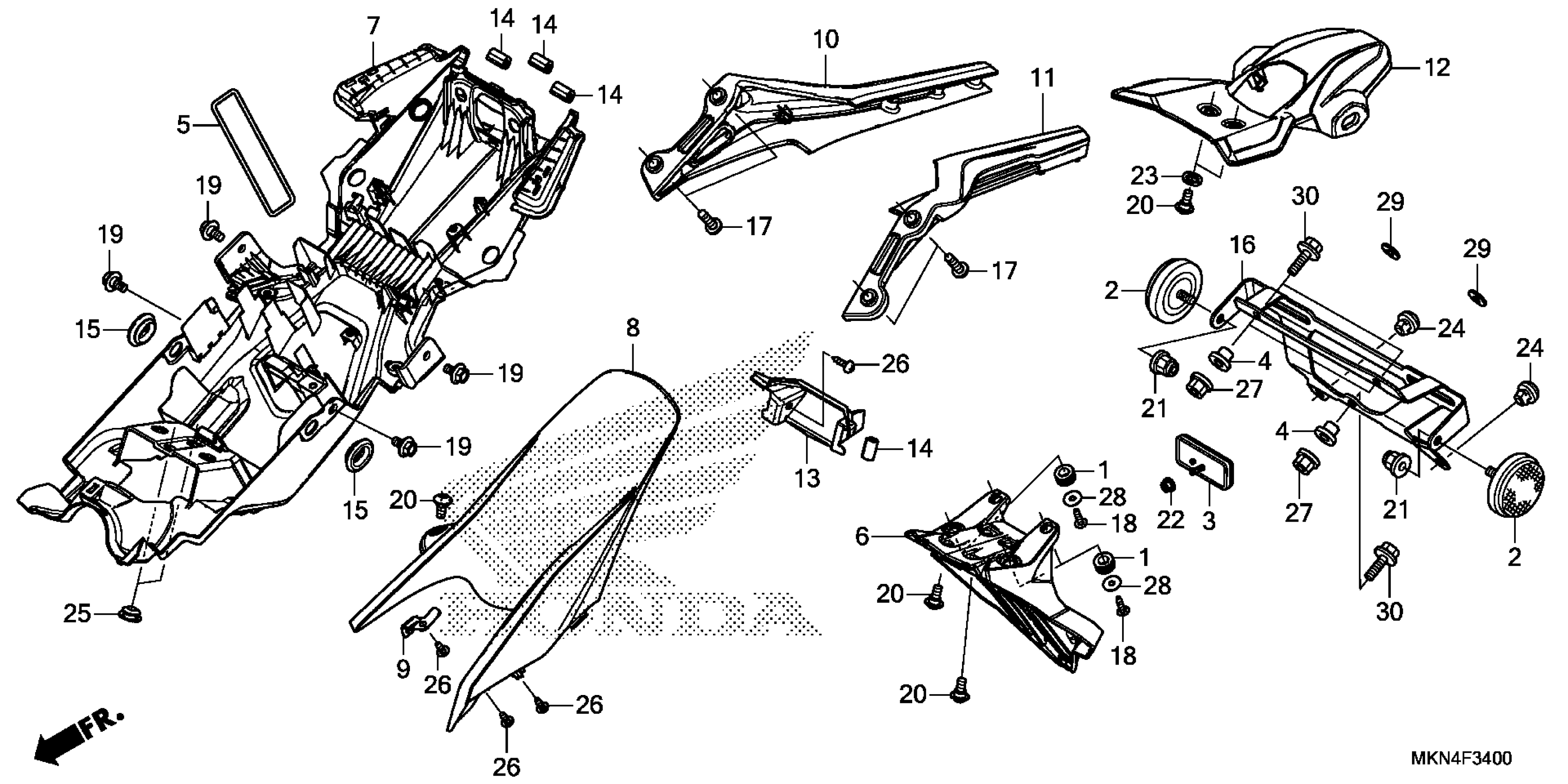

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 REAR FENDER Diagram

#

Description
Price

1

RUBBER, MOUNTING

19639-GBL-000

$0.97

2

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

3

REFLECTOR, REFLEX

33741-KPL-902

$6.86

4

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.76

5

BAND, U-LOCK

50290-MBL-610

$4.45

6

FENDER A, RR.

80101-MKN-L50

$16.07

7

FENDER B, RR.

80102-MKN-D50

$24.41

8

FENDER C, RR.

80103-MKN-D50

$9.68

9

STAY, RR. FENDER C

80106-MKN-D50

$3.65

10

STAY, R. RR. FENDER

80131-MKN-D50

$136.62

11

STAY, L. RR. FENDER

80132-MKN-D50

$132.22

12

COVER, LICENSE LIGHT

80141-MKN-D50

$16.26

13

COVER SET, RR. FENDER STAY (TYPE1) (WL)

80150-MKN-D50ZA

Unavailable

14

RUBBER, TAIL COVER

83515-KPH-700

$1.56

15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

16

BRACKET, NUMBER PLATE

84710-MKN-L50

$49.10

17

BOLT, SOCKET (8X28)

90105-MKN-D50

$1.12

18

SCREW, TAPPING (4X16)

90112-MKA-D80

$2.12

19

BOLT, FLANGE (6MM)

90116-ME9-000

$3.12

20

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.22

21

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

22

NUT, U (5MM)

90301-KWN-901

$0.61

23

WASHER, RUBBER (6MM)

90514-K33-D00

$0.74

24

PLUG, HOLE

90852-446-630

$2.33

25

PLUG, HOLE

90852-KPP-T00

$1.46

26

SCREW, TAPPING (4X12)

93903-24380

Unavailable

27

NUT, FLANGE (6MM)

94050-06000

$0.59

28

WASHER, PLAIN (4MM)

94103-04700

$0.86

29

WASHER, PLAIN (6MM)

94103-06000

$0.90

30

BOLT, FLANGE (6X14)

96001-06014-07

$1.09
