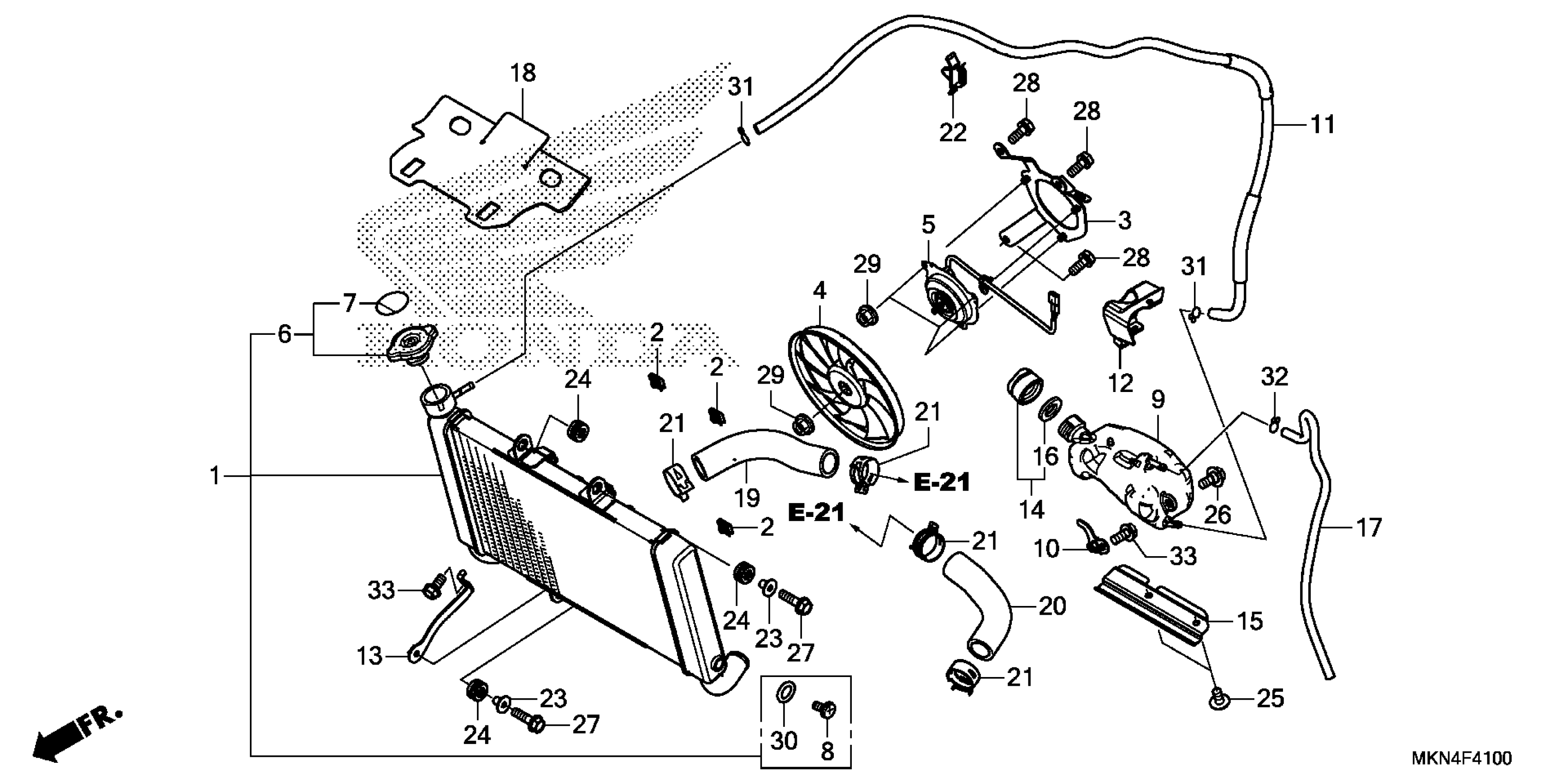

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 RADIATOR Diagram

RADIATOR (TOYO)

19010-MKN-L21

$218.97

NUT, SETTING (6MM)

19014-KEA-003

$3.10

SHROUD

19015-MJE-D01

$21.07

FAN, COOLING

19020-MFG-D01

$38.72

MOTOR ASSY., FAN

19030-MKN-D51

$120.70

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

PETCOCK, DRAIN

19071-MEC-003

$3.58

TANK, RADIATOR RESERVE

19101-MJE-D00

$7.80

STAY, RESERVE TANK

19102-MJE-D00

$3.03

TUBE, RESERVE TANK

19103-MJE-D00

$13.39

COVER, RESERVE TANK

19104-MJE-D00

$5.90

STAY, RADIATOR (LOWER)

19105-MJE-D00

$8.46

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

GUARD, RESERVE TANK HEAT

19106-MJE-DB0

$11.28

GASKET, RESERVE TANK

19107-GET-000

$3.74

TUBE, RESERVE TANK OVERFLOW

19108-MJE-D00

$6.49

GUARD, RADIATOR HEAT

19126-MKN-D50

$5.75

HOSE A, RADIATOR

19501-MJE-D00

$13.90

HOSE B, RADIATOR

19502-MJE-D00

$12.90

CLIP, WATER HOSE

19511-R9G-004

$7.10

CLIP, WIRE HARNESS

32161-393-003

$3.07

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

SCREW, PAN (6X12)

90106-KRG-000

$2.18

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT, FLANGE (6X22)

90115-MKN-D50

$1.49

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

O-RING (9.8X1.9)

91353-MEC-003

$3.42

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
