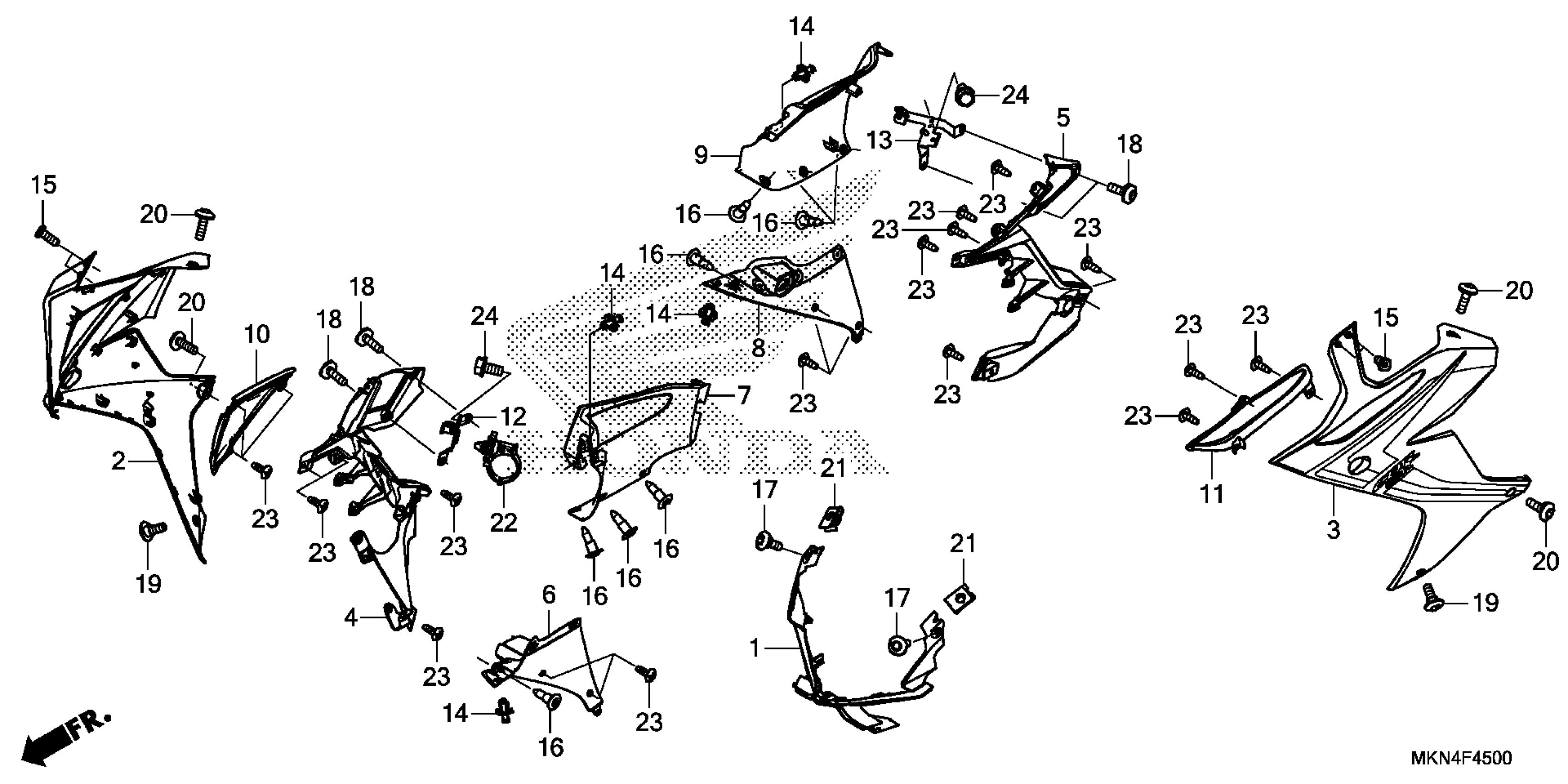

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 MIDDLE COWL Diagram

#

Description
Price

1

COVER, FR. (LOWER)

64191-MKN-D10

$9.09

2

COWL SET A, R. MIDDLE (TYPE1) (WL)

64210-MKN-D30ZA

$141.04

3

COWL SET A, L. MIDDLE (TYPE1) (WL)

64220-MKN-D30ZA

$141.04

4

COWL B, R. MIDDLE

64232-MKN-D10

$22.88

5

COWL B, L. MIDDLE

64242-MKN-D10

$22.77

6

PANEL, R. MIDDLE (INNER)

64251-MKN-D10

$14.25

7

PANEL, R. (UPPER) (INNER)

64256-MKN-D10

$16.06

8

PANEL, L MIDDLE (INNER)

64261-MKN-D10

$14.25

9

PANEL, L. (UPPER) (INNER)

64266-MKN-D10

$17.15

10

COVER, R. AIR DUCT

64271-MKN-D10

$9.67

11

COVER, L. AIR DUCT

64281-MKN-D10

$10.32

12

STAY, R. MIDDLE COWL

64650-MKN-D10

$12.32

13

STAY, L. MIDDLE COWL

64660-MKN-D10

$13.29

14

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

15

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.35

16

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

17

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.24

18

SCREW, PAN (5X16)

90133-MKN-D50

$1.24

19

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

20

SCREW, PAN (5X16)

90134-MJE-D00

Unavailable

21

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

22

CLIP, WATER HOSE

91556-HL1-A00

$3.06

23

SCREW, TAPPING (4X12)

93903-24380

Unavailable

24

BOLT, FLANGE (6X12)

95701-06012-07

$1.50
