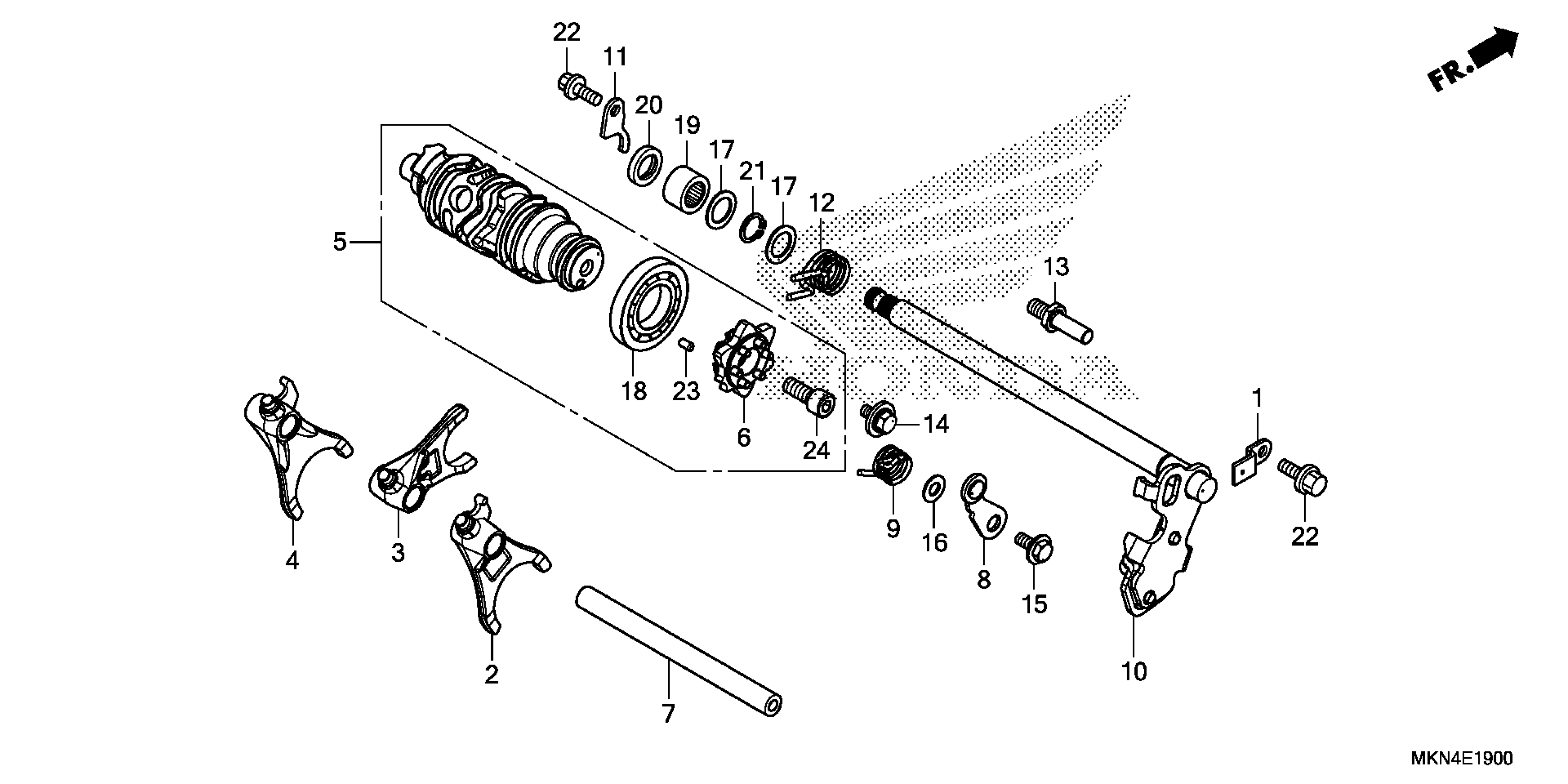

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 GEARSHIFT DRUM Diagram

PLATE, TENSIONER SETTING

14623-MV1-000

$4.87

FORK, R. GEARSHIFT

24211-MJE-D00

$80.11

FORK, CENTER GEARSHIFT

24212-MJE-D00

$60.49

FORK, L. GEARSHIFT

24213-MJE-D00

$80.11

DRUM, GEARSHIFT

24310-MKN-D10

$80.69

CENTER, SHIFT DRUM

24315-MGZ-J00

$37.46

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

STOPPER, GEARSHIFT DRUM

24430-MJP-G50

$15.18

SPRING, GEARSHIFT DRUM STOPPER

24435-MKN-D10

$1.75

SPINDLE, GEARSHIFT

24610-MJE-D00

$51.46

PLATE, SPINDLE

24612-MAL-600

$9.75

SPRING, SHIFT RETURN

24651-MAE-000

$8.20

PIN, SHIFT RETURN SPRING

24652-MGZ-J00

$1.72

BOLT-WASHER (6X12)

90021-MGZ-J00

$4.23

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$1.49

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14MM)

90451-155-000

$3.78

BEARING, SPECIAL BALL (6500)

91008-MFJ-D01

$16.57

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$11.31

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
