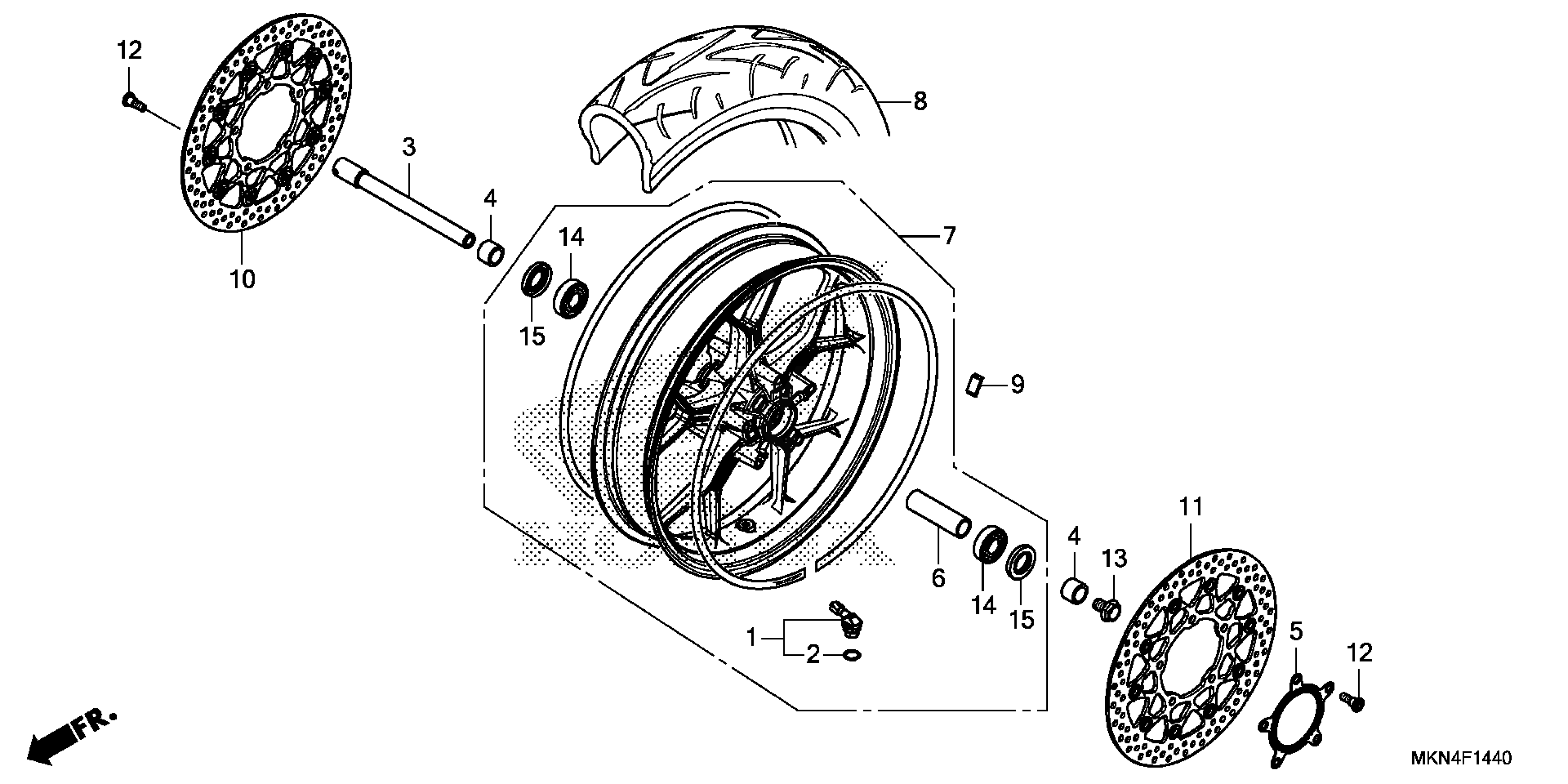

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 FRONT WHEEL Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

O-RING

42758-MKA-D81

$1.41

AXLE, FR. WHEEL

44301-MKN-D50

$56.28

COLLAR, R. FR. WHEEL SIDE (BOTH SIDES)

44311-MGH-640

$5.34

RING, FR. PULSER

44515-MKN-D50

$49.21

COLLAR, FR. AXLE DISTANCE

44620-MJE-D00

$7.07

WHEEL SUB-ASSY., FR. (TYPE1) (WL)

44650-MKN-D30ZA

$360.82

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MKN-D52

$193.08

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

DISK, R. FR. BRAKE

45120-MKN-D51

Unavailable

DISK, L. FR. BRAKE

45220-MKN-D51

$230.94

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

BOLT, FR. AXLE

90112-MKN-D50

$2.46

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$11.86

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66
