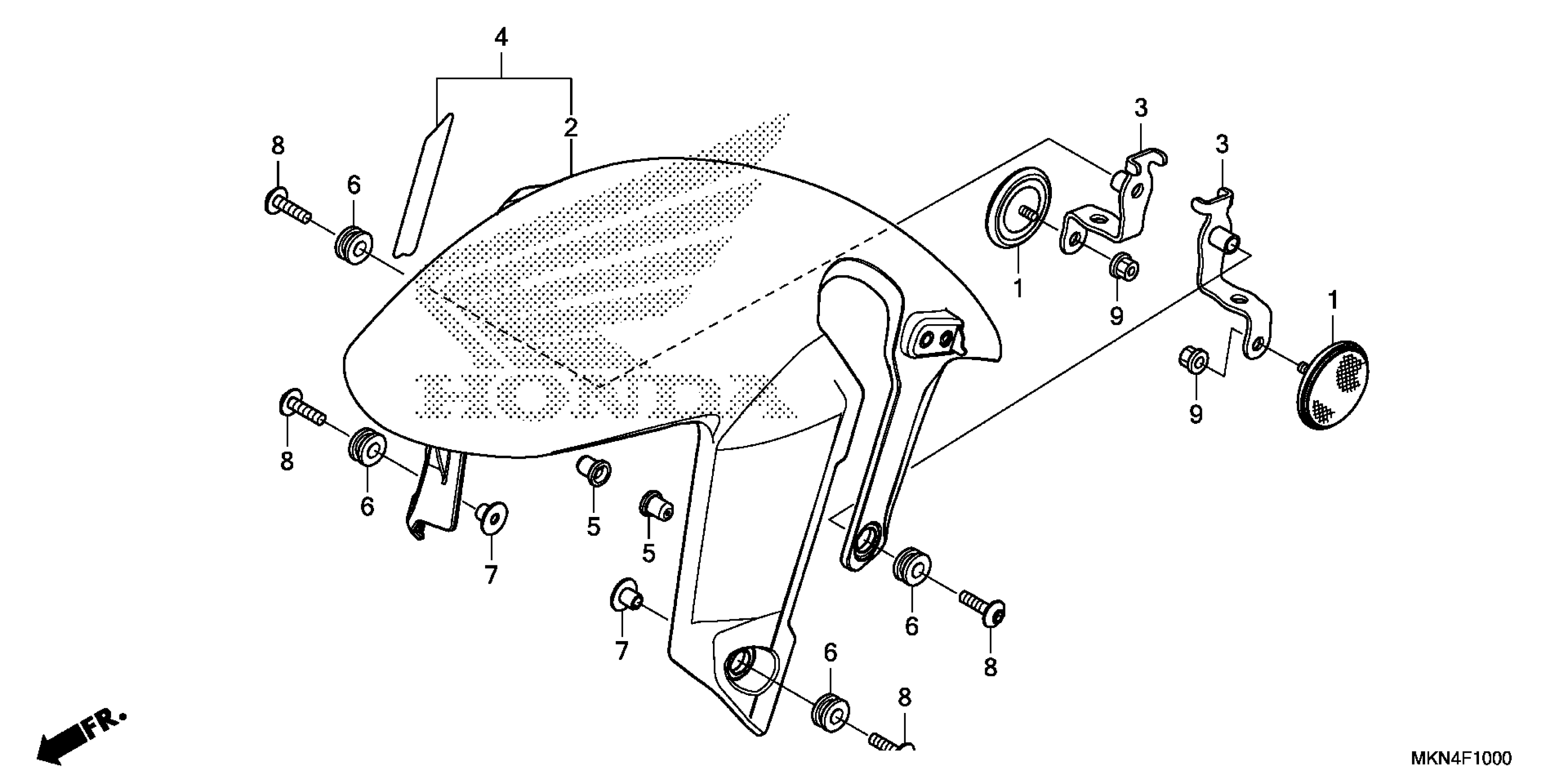

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 FRONT FENDER Diagram

#

Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.74

3

STAY, FR. REFLECTOR

61105-MKN-D50

$4.97

4

FENDER SET, FR. (TYPE2) (WL)

61110-MKN-D50ZB

$68.42

5

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.33

6

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.48

7

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

8

SCREW, PAN (6X22)

90130-KYJ-900

$0.75

9

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26
