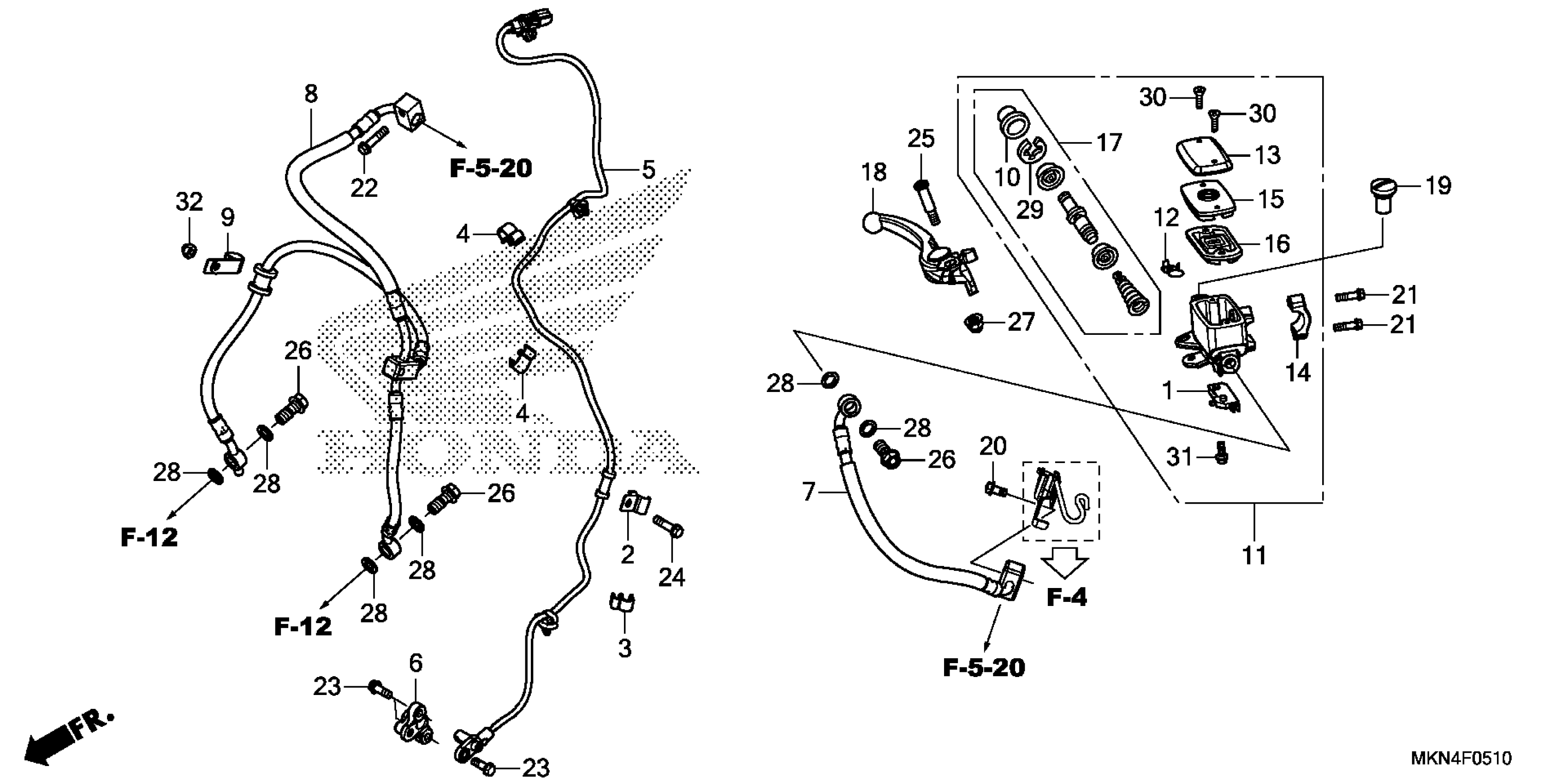

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.85

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

SENSOR, FR. WHEEL SPEED

38520-MKN-D11

$32.07

GUARD, ABS SENSOR

38521-MKN-D50

$14.38

HOSE A, FR. BRAKE

45124-MKN-D11

$37.84

HOSE D, FR. BRAKE

45127-MKN-D51

$140.10

CLAMP, FR. BRAKE HOSE

45132-MKN-D50

$3.74

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGH-641

$297.59

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER ASSY., R. HANDLE (COO) This part replaces 53170-MJE-D01.

53170-MJE-305

$54.34

LEVER ASSY., R. HANDLE (COO)

53170-MJE-305

$54.34

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, FLANGE (6X25)

90013-GHB-670

$2.33

BOLT, FLANGE (6X16)

90111-MKN-D50

$1.49

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-KCW-870

$2.92

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, CAP (6MM)

94021-06070-0S

$1.62
