Description

Price

1

CYLINDER HEAD ASSY.

12010-MKN-D10

$902.80

2

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.27

3

GASKET, CYLINER HEAD This part replaces 12251-MJE-D01.

12251-MKY-E21

$40.46

4

GASKET, PLUG HOLE

12395-MBW-003

$4.33

5

INSULATOR, THROTTLE BODY

16211-MKN-D10

$152.39

6

BAND A, INSULATOR

16217-MJE-D00

$6.68

7

BAND B, INSULATOR

16218-MJE-D00

$6.36

8

JOINT, BLEEDING

19410-MJE-D00

$48.87

9

CLAMP, WATER HOSE

19507-MAL-600

$5.17

10

PLUG, RADIATOR DRAIN

19509-MKN-D10

$2.26

11

HOSE, WATER BREATHER

19510-MKN-D10

$13.42

12

SPARK PLUG (IMR9E-9HES) (NGK)

31912-MFL-003

$16.38

13

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$44.73

14

BOLT-WASHER (9X100)

90007-MGZ-J00

$4.43

15

BOLT, FLANGE (6X35)

90011-MGZ-J00

$0.43

16

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.12

17

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$0.75

18

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

19

GASKET (SHOWA)

90544-439-930

$1.94

20

BOLT, STUD (8X22)

92900-08022-3E

$2.10

21

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.04

22

PIN A, DOWEL (12X16)

94301-12160

Unavailable

23

CLAMP, TUBE (D10.5)

95002-41050-08

$2.30

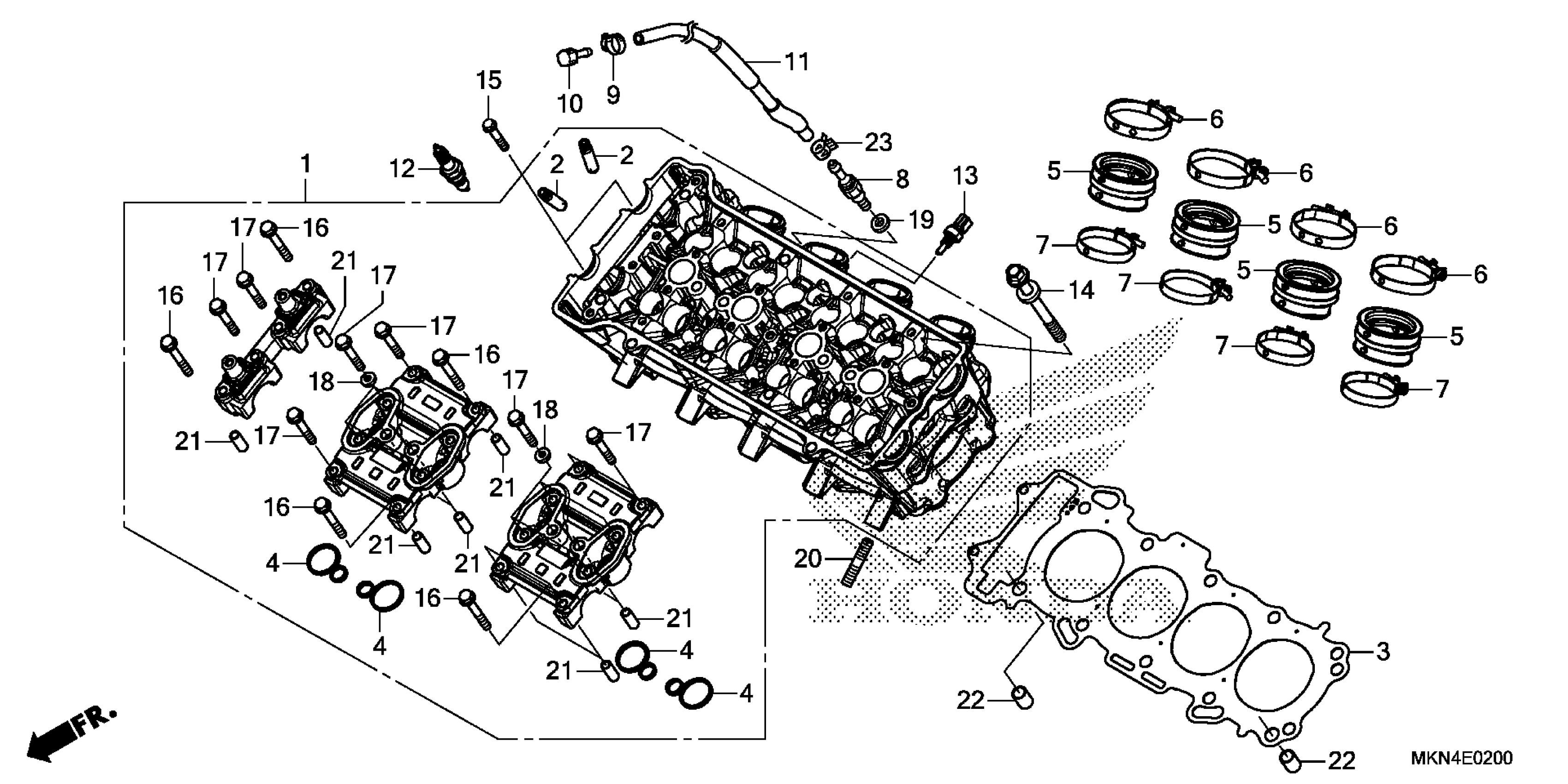

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 CYLINDER HEAD Diagram
