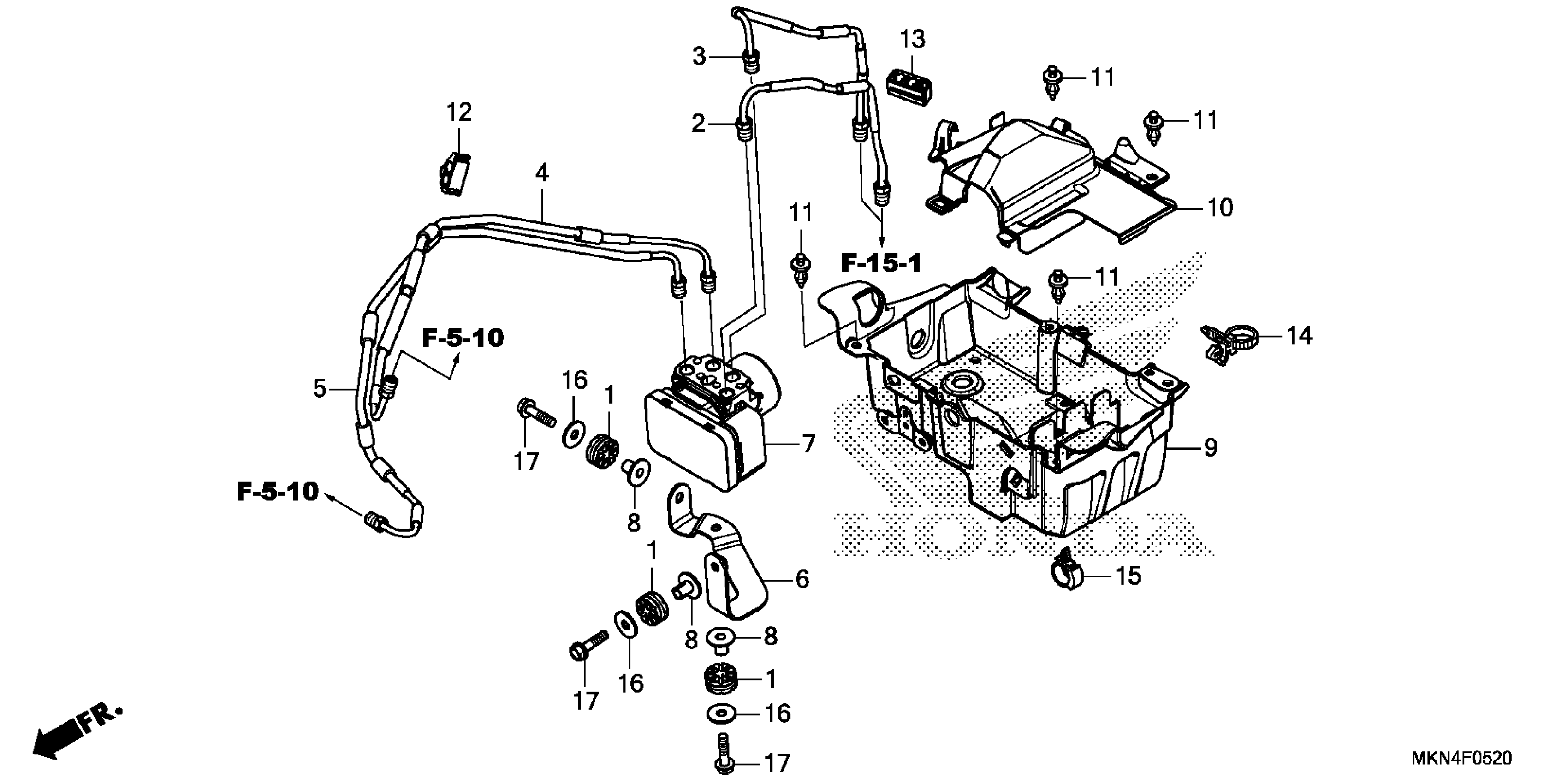

Honda CBR650RA2AC (20) MOTORCYCLE, THA, VIN# MLHRH015-L5100001 ABS MODULATOR@TRAY Diagram

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.49

PIPE A, RR. BRAKE

43311-MJE-DB0

$9.74

PIPE B, RR. BRAKE

43312-MJE-DB0

$9.74

PIPE B, FR. BRAKE

45125-MKN-D50

$9.46

PIPE C, FR. BRAKE

45126-MKN-D50

$26.46

STAY, ABS MODULATOR

50345-MJE-DB0

$6.41

MODULATOR ASSY. (NISSIN)

57110-MKN-D51

Unavailable

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$4.13

TRAY, ABS MODULATOR

80110-MKN-D50

$25.38

COVER, ABS MODULATOR

80120-MKN-D50

$11.18

RIVET, PUSH

90116-MCS-G00

$1.49

CLAMP, BRAKE PIPE (7.0X2)

90661-K87-L51

$1.49

CLIP, BRAKE PIPE (6.9X2)

90661-KVK-B11

$4.36

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.47

CLIP, WIRE HARNESS

90684-ZA0-601

$2.93

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
