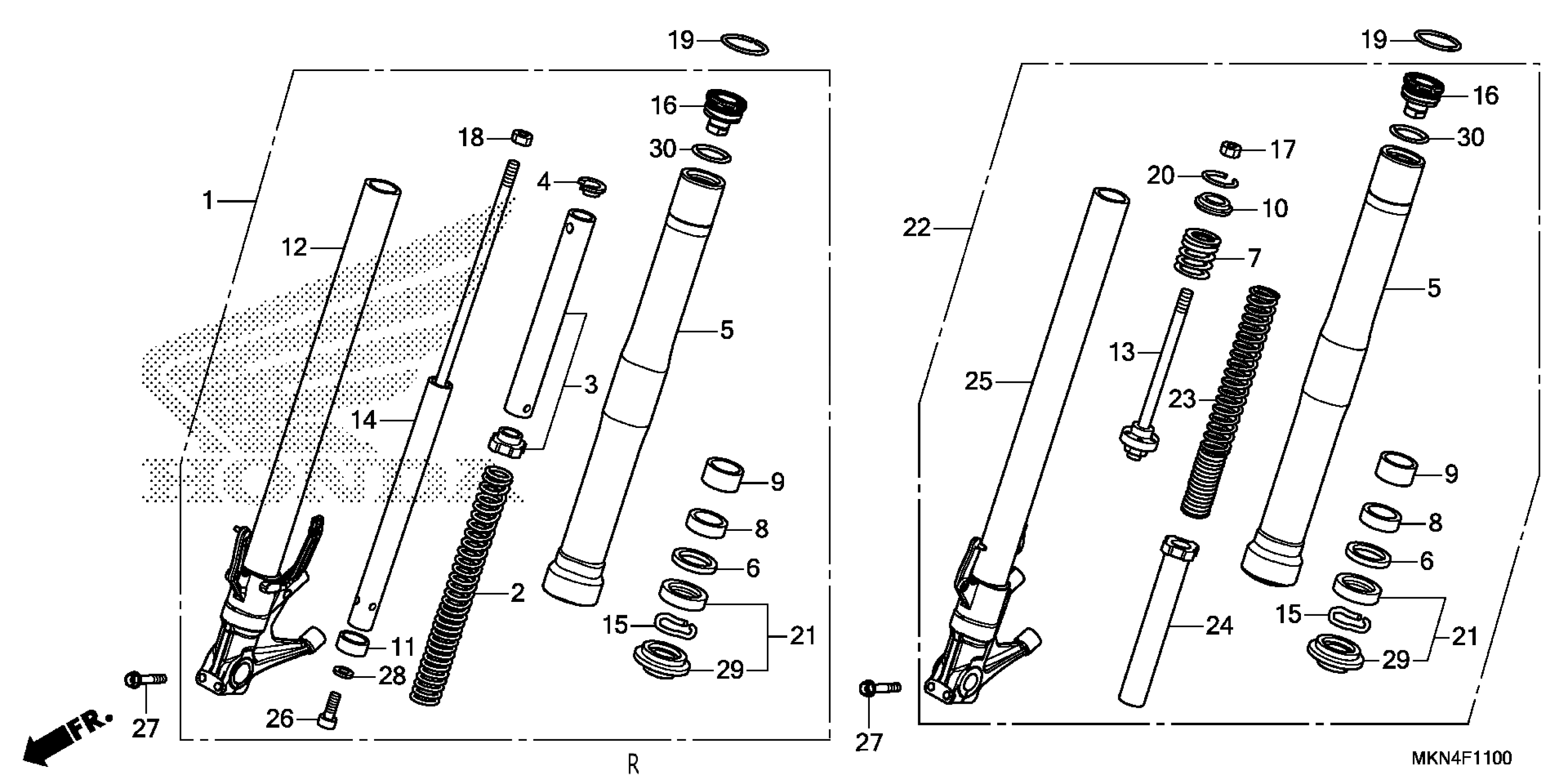

Honda CBR650R2AC (19) MOTORCYCLE, THA, VIN# MLHRH011-K5000001 TO MLHRH011-K5099999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MKN-D51

$707.26

2

SPRING, R. FR.

51401-MKN-D51

$38.80

3

COLLAR, SPRING (SHOWA)

51404-MKN-D51

$27.03

4

STOPPER, SPRING SEAT (SHOWA)

51408-KAE-871

$15.36

5

TUBE (OUTER)

51410-MKN-D51

$261.02

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

7

SPRING B, REBOUND (SHOWA)

51412-MKN-D51

$5.00

8

BUSH, GUIDE

51414-MFJ-A51

$7.25

9

BUSH, SLIDER

51415-MFJ-A51

$7.25

10

SEAT, STOPPER

51419-K94-T01

$9.52

11

PLATE, CENTERING

51423-K94-T01

$2.13

12

PIPE, R. SLIDE (SHOWA)

51425-MKN-D51

$292.05

13

ROD (SHOWA)

51426-MKN-D51

$36.11

14

DAMPER, FR. (SHOWA)

51430-MKN-D51

$111.82

15

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

16

BOLT, FR. FORK

51450-K94-T01

$65.43

17

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

18

NUT, LOCK (SHOWA)

51451-MKN-D51

$3.72

19

RING, STOPPER

51455-MEE-D01

$2.64

20

RING, STOPPER

51456-K94-T01

$2.30

21

SEAL SET, FR. FORK

51490-MKL-D81

$25.13

22

FORK ASSY., L. FR. (SHOWA)

51500-MKN-D51

$615.98

23

SPRING, L. FR.

51501-MKN-D51

$30.20

24

COLLAR B, SPRING (SHOWA)

51502-MKN-D51

$20.98

25

PIPE, L. SLIDE (SHOWA)

51525-MKN-D51

$295.87

26

BOLT, SOCKET (8X22)

90116-088-931

$2.08

27

BOLT (8X45)

90134-MEL-000

$2.92

28

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

29

DUST SEAL

91251-MKL-D81

$10.67

30

O-RING (39.7X2.4)

91258-MEE-D01

$2.11
