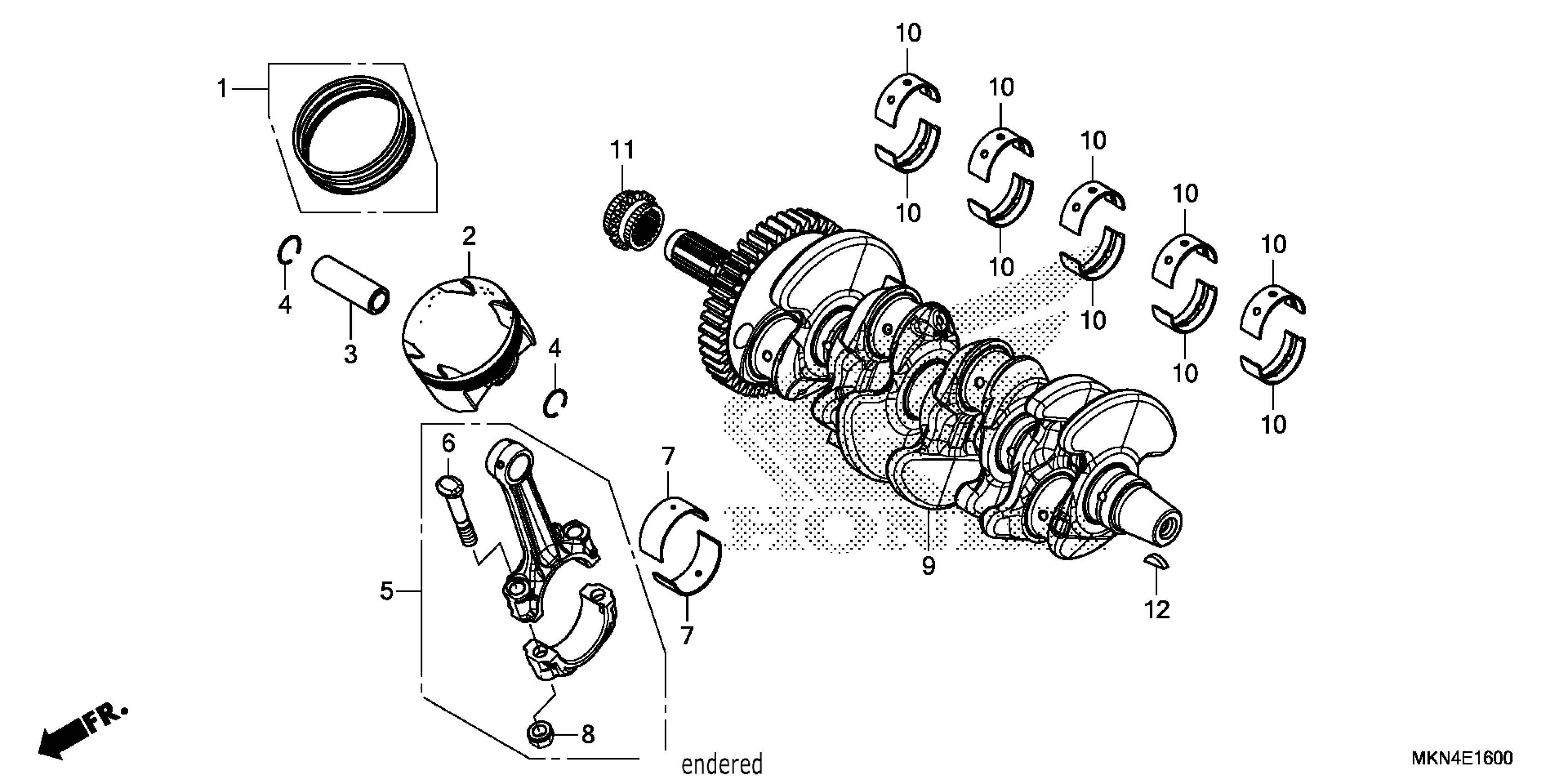

Honda CBR650R2AC (19) MOTORCYCLE, THA, VIN# MLHRH011-K5000001 TO MLHRH011-K5099999 CRANKSHAFT@PISTON Diagram

RING SET, PISTON (STD)

13011-MJE-315

$23.30

RING SET, PISTON (O.S. 0.25) | (Optional).

13021-MJE-315

$22.30

PISTON (STD)

13101-MKN-D10

$43.20

PISTON (O.S. 0.25) | (Optional).

13102-MKN-305

Unavailable

PIN, PISTON

13111-MFG-D00

$19.80

CLIP, PISTON PIN (16MM)

13112-MEE-000

$2.31

ROD ASSY., CONNECTING

13210-MJE-D00

$105.18

BOLT, CONNECTING ROD

13213-ML7-020

$8.00

BEARING A, CONNECTING ROD (BLUE)

13214-MJE-D01

$13.36

BEARING B, CONNECTING ROD (BLACK)

13215-MJE-D01

$13.36

BEARING C, CONNECTING ROD (BROWN)

13216-MJE-D01

$13.36

BEARING D, CONNECTING ROD (GREEN)

13217-MJE-D01

$13.36

BEARING E, CONNECTING ROD (YELLOW)

13218-MJE-D01

$13.36

NUT, CONNECTING ROD

13215-ML7-000

$3.89

CRANKSHAFT

13310-MJE-D00

$1,168.56

BEARING A, CRANKSHAFT (BLACK)

13313-MW0-003

$13.19

BEARING B, CRANKSHAFT (BROWN)

13314-MW0-003

$13.19

BEARING C, CRANKSHAFT (GREEN)

13315-MW0-003

$13.19

BEARING D, CRANKSHAFT (YELLOW)

13316-MW0-003

$13.19

BEARING E, CRANKSHAFT (PINK)

13317-MW0-003

$13.19

SPROCKET, TIMING (17T)

14312-MKN-D10

$16.28

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78
