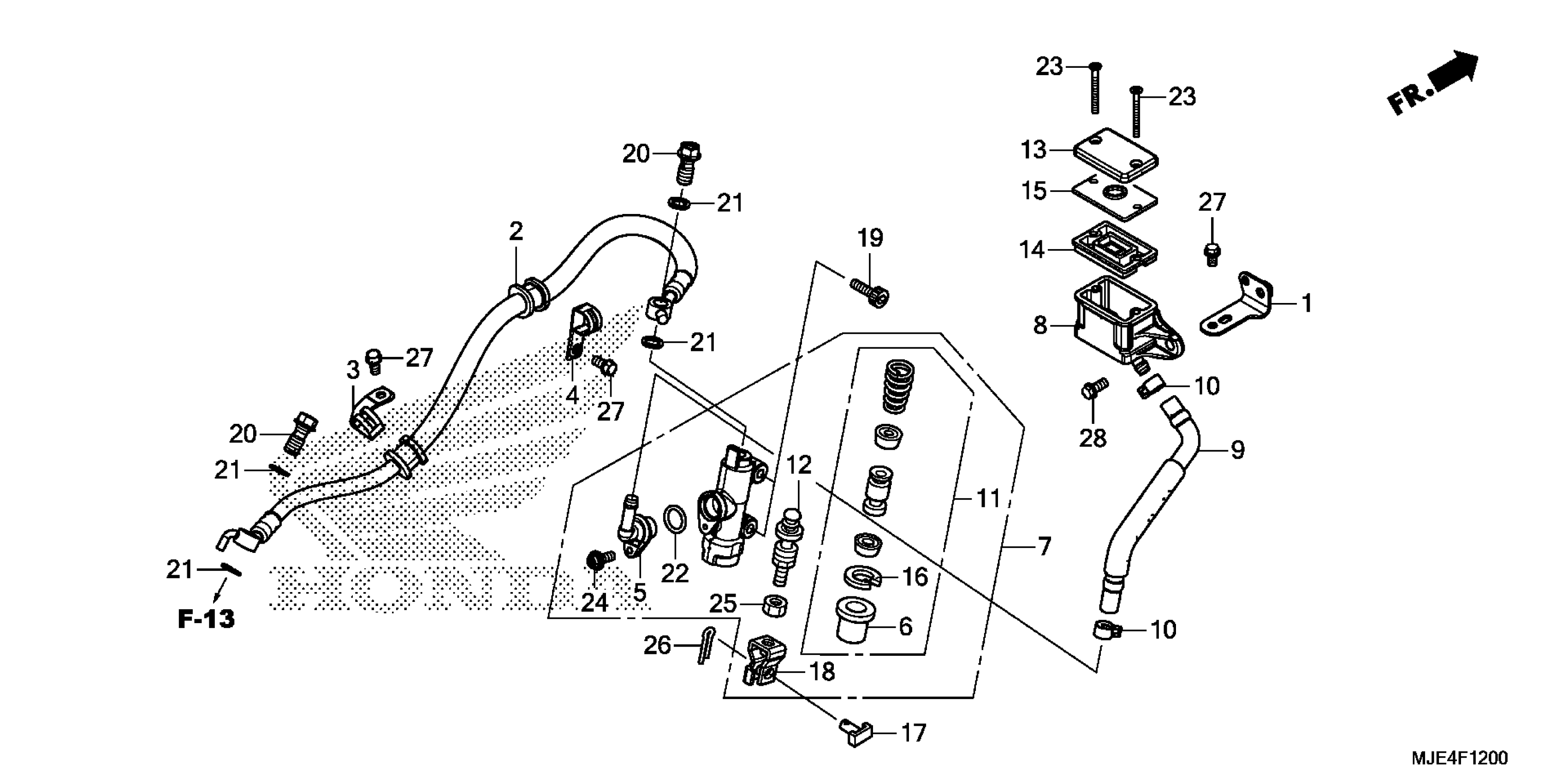

Honda CBR650FAC (15) MOTORCYCLE, THA, VIN# MLHRC741-F5100001 TO MLHRC741-F5199999 REAR BRAKE MASTER CYLINDER (1) Diagram

STAY C, RR. BRAKE

43159-MJE-D00

$5.49

HOSE, RR. BRAKE

43310-MJE-D01

$21.41

CLAMP A, RR. BRAKE HOSE

43314-MJE-D00

$4.25

CLAMP B, RR. BRAKE HOSE

43315-MJE-D00

$3.33

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. (COO)

43510-MJE-305

$155.96

CUP, OIL

43511-KV3-831

$21.29

HOSE, RR. MASTER CYLINDER

43512-MJE-D01

$9.51

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH

43530-KV3-701

$18.06

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-MEL-D21

$1.77

PIN, BRAKE ROD

46503-MFG-D00

$4.07

JOINT, BRAKE ROD

46504-MAL-601

$12.20

BOLT, SOCKET (6X20)

90135-MEL-000

$1.48

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X12)

94201-20120

$0.94

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

BOLT, FLANGE (6X14)

96001-06014-07

$1.09
