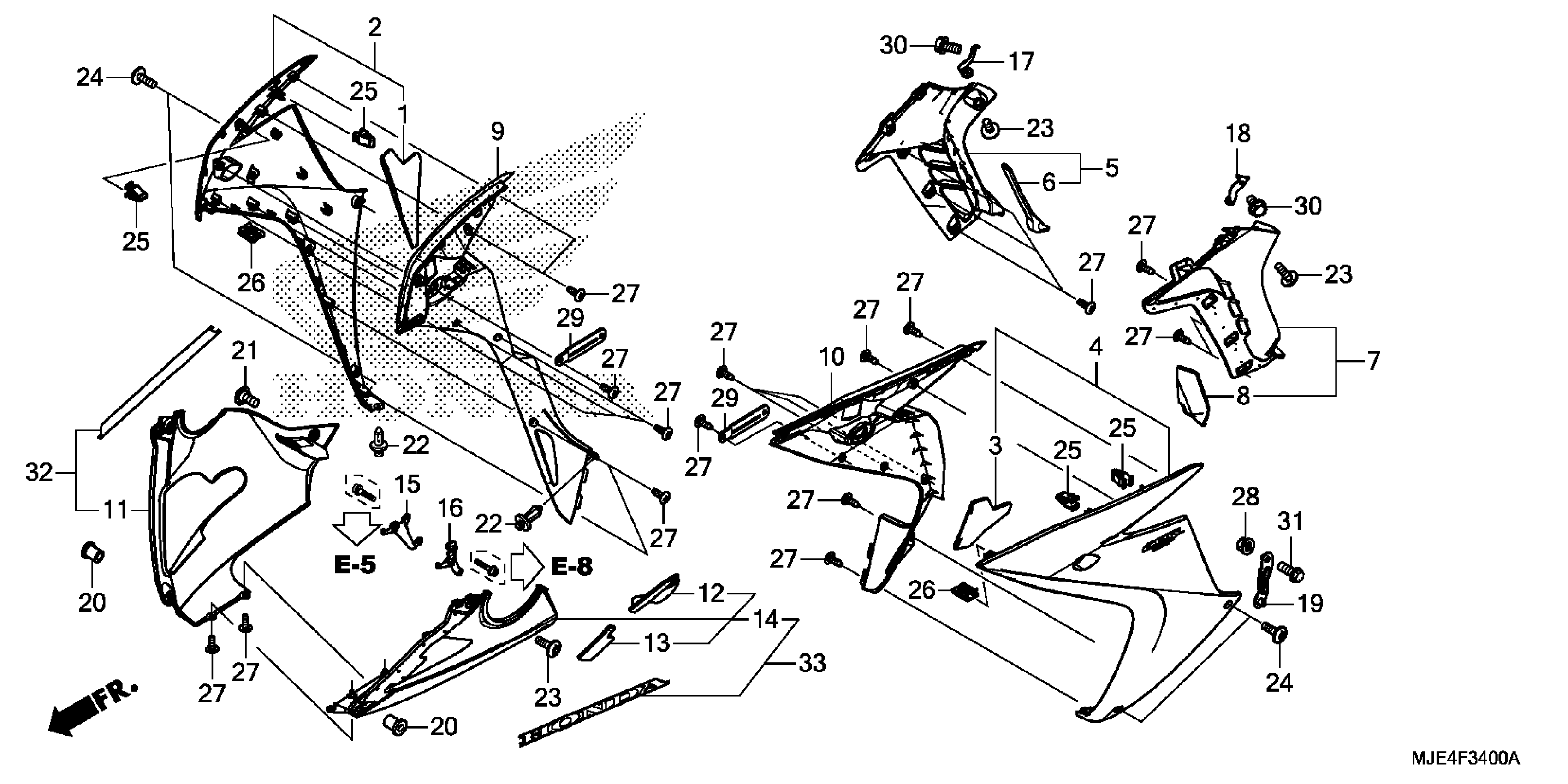

Honda CBR650FAC (15) MOTORCYCLE, THA, VIN# MLHRC741-F5100001 TO MLHRC741-F5199999 MIDDLE COWL@UNDER COWL Diagram

#

Description
Price

1

MAT A, R. MIDDLE COWL

64213-MJE-D00

$1.81

2

COWL ASSY. A, R. MIDDLE (TYPE6) (WL) (PB215C CANDY TAHITIAN BLUE)

64215-MJE-D00ZB

$83.91

2

COWL ASSY. A, R. MIDDLE (TYPE5) (WL) (R263 MILLENIUM RED)

64215-MJE-D00ZC

$84.65

2

COWL ASSY. A, R. MIDDLE (TYPE2) (WL) (NH436 MAT GUNPOWDER BLK MET)

64215-MJE-D00ZF

$85.67

3

MAT A, L. MIDDLE COWL

64223-MJE-D00

$1.42

4

COWL ASSY. A, L. MIDDLE (TYPE5) (WL) (R263 MILLENIUM RED) This part replaces 64225-MJE-D00ZC.

64225-MJE-D00ZD

$83.19

4

COWL ASSY. A, L. MIDDLE (TYPE6) (WL) (PB215 CANDY TAHITIAN BLUE)

64225-MJE-D00ZB

$66.39

4

COWL ASSY. A, L. MIDDLE (TYPE5) (WL) (R263 MILLENIUM RED)

64225-MJE-D00ZD

$83.19

4

COWL ASSY. A, L. MIDDLE (TYPE2) (WL) (NH436 MAT GUNPOWDER BLK.MET)

64225-MJE-D00ZH

$95.58

5

COWL ASSY. B, R. MIDDLE

64230-MJE-D00

$19.69

6

MAT B, R. MIDDLE COWL

64232-MJE-D00

$0.86

7

COWL ASSY. B, L. MIDDLE

64240-MJE-D00

$15.23

8

MAT B, L. MIDDLE COWL

64242-MJE-D00

$1.67

9

PANEL, R. (INNER)

64251-MJE-D00

$20.94

10

PANEL, L. (INNER)

64261-MJE-D00

$20.94

11

COWL, R. (LOWER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64270-MJE-D00ZB

$147.35

12

MAT, L. COWL (LOWER)

64282-MJE-D00

$1.35

13

MAT B, L. COWL (LOWER)

64283-MJE-D00

$0.50

14

COWL ASSY., L. (LOWER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64285-MJE-D00ZB

$49.86

15

STAY, R. COWL (LOWER)

64610-MJE-D00

$9.32

16

STAY, L. COWL (LOWER)

64620-MJE-D00

$10.14

17

STAY B, R. MIDDLE

64650-MJE-D00

$6.20

18

STAY B, L. MIDDLE

64660-MJE-D00

$6.20

19

STAY, RR. COWL (LOWER)

64670-MJE-D00

$6.55

20

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

21

SCREW, SPECIAL (6X14)

90115-MGZ-J00

Unavailable

22

RIVET, PUSH

90116-MCS-G00

$1.26

23

SCREW, PAN (5X16)

90133-MJE-D00

$0.81

24

SCREW, PAN (5X16)

90134-MJE-D00

$1.03

25

CLIP, SNAP FITTING

90601-SJA-003

$3.02

26

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

27

SCREW, TAPPING (4X12)

93903-24380

Unavailable

28

NUT, FLANGE (6MM)

94050-06000

$0.59

29

CLIP, WIRE (2X78)

94591-27000

$2.80

30

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

31

BOLT, FLANGE (6X18)

96001-06018-07

$1.14
