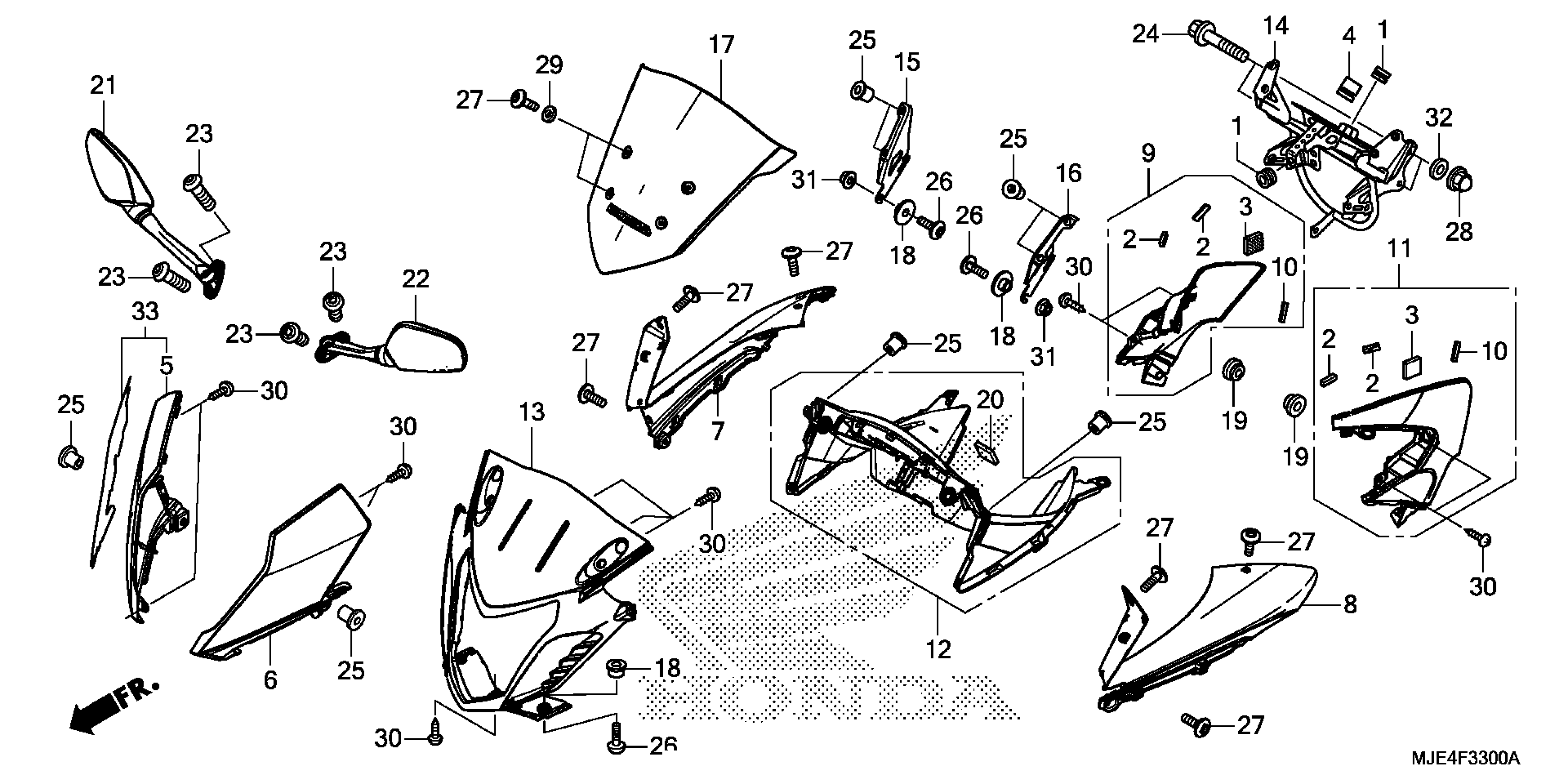

Honda CBR650FAAC (15) MOTORCYCLE, THA, VIN# MLHRC745-F5100001 TO MLHRC745-F5199999 UPPER COWL (1) Diagram

#

Description
Price

1

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.75

2

FASTENER C, DUAL LOCK (8X25)

17541-MJE-D00

$1.49

3

FASTENER D, DUAL LOCK (20X20)

17542-MJE-D00

$2.05

4

RUBBER, METER SETTING

37215-KZZ-900

$1.49

5

COWL A, R. (UPPER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64111-MJE-D00ZE

$36.57

6

COWL A, L. (UPPER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64121-MJE-D00ZE

$36.57

7

COWL B, R. (UPPER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64131-MJE-D00ZE

$45.94

8

COWL B, L. (UPPER) *NH436M* (MAT GUNPOWDER BLACK METALLIC)

64141-MJE-D00ZE

$48.74

9

COWL ASSY. C, R. (UPPER)

64150-MJE-D00

$17.28

10

RUBBER, COWL (UPPER)

64152-MJE-D00

$1.49

11

COWL ASSY. C, L. (UPPER)

64160-MJE-D00

$16.29

12

PANEL ASSY., METER

64170-MJE-D02

$61.59

13

COVER, HEADLIGHT

64181-MJE-D00

$32.72

14

STAY, FR. COWL (UPPER)

64501-MJE-D00

$164.39

15

STAY, R. SCREEN

67102-MJE-D00

$17.64

16

STAY, L. SCREEN

67103-MJE-D00

$10.92

17

WINDSCREEN (TYPE1) (WL)

67110-MJE-D00ZA

$48.20

18

COLLAR A

80113-MJE-D00

$2.57

19

GROMMET, SIDE COVER

83551-376-000

$2.97

20

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.92

21

MIRROR ASSY., R. BACK (COO)

88110-MJE-305

$57.42

22

MIRROR ASSY., L. BACK (COO)

88120-MJE-305

$57.33

23

BOLT, SOCKET (6X20)

90001-MCK-A50

$2.18

24

BOLT, FLANGE (8X35)

90101-GBL-000

$3.66

25

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

26

SCREW, PAN (5X16)

90133-MJE-D00

$1.49

27

SCREW, PAN (5X16)

90134-MJE-D00

$1.49

28

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.49

29

WASHER, THRUST (5MM)

90504-964-000

$1.90

30

SCREW, TAPPING (4X12)

93903-24380

$1.49

31

NUT, FLANGE (5MM)

94050-05000

$1.49

32

WASHER, PLAIN (8MM)

94101-08700

$1.49
